ZTR 6601 - Dixon Zero-Turn Mower (1996) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

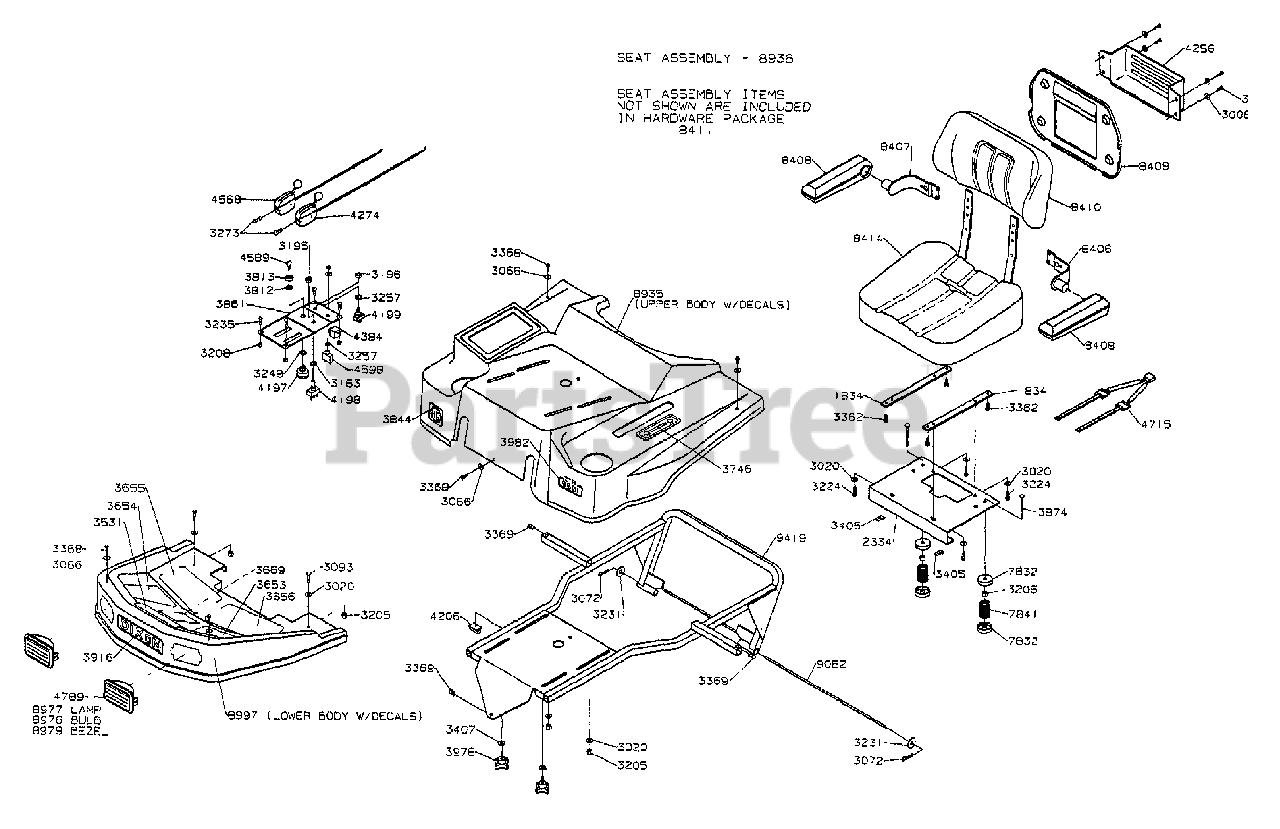

BODY ASSEMBLY Parts Diagram

  • Title

1834

1834

SEAT STRAP

$

$

Not available

2334

2334

R/B 9514 SPRING SEAT PLATE

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3196

3196

FACE NUT 7/16-28

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3362

3362

5/16-18X3/4 HWH TFS

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3407

3407

WASHER 5/16` NINJA

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3653

Dixon 3653

FRONT FLOOR PAD L

$

$

Not available

3654

Dixon 3654

FRONT FLOOR PAD R

$

$

Not available

3655

3655

REAR FLOOR PAD L

$

$

Not available

3656

Dixon 3656

REAR FLOOR PAD R

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3844

3844

DECAL, HYDRO-GEAR

$

$

Not available

3861

3861

CONTROL PANEL 50`

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3974

3974

5/16-18X3.5 CAR BOLT

$

$

Not available

3978

3978

SEAT ADJUST KNOB

$

$

Not available

3982

3982

NLA MODEL DECAL 6601

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4199

4199

LIGHT SWITCH

$

$

Not available

4206

4206

BODY WIRE CLIP 1/2`

$

$

Not available

4256

4256

UTILITY BOX

$

$

Not available

4274

4274

CHOKE CONTROL

$

$

Not available

4384

4384

RELAY

$

$

Not available

4568

4568

THROTTLE (40`)

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4715

4715

NLA SEAT SWITCH ASM

$

$

Not available

4789

4789

HEADLIGHT

$

$

Not available

7832

7832

SPRING CUP

$

$

Not available

7841

7841

SEAT SPRING

$

$

Not available

8406

8406

ARM REST BRACKET LH

$

$

Not available

8407

8407

ARM REST BRACKET RH

$

$

Not available

8408

8408

$

$

Not available

8409

8409

$

$

Not available

8410

8410

SEAT BACK

$

$

Not available

8411

8411

HRDWR PKG 503 SEAT

$

$

Not available

8414

8414

R/B 7270 SEAT BOTTOM/FRM ASM

$

$

Not available

8935

8935

50` UP BODY W/DECALS

$

$

Not available

8936

8936

R/B 7270 50` SEAT ASM

$

$

Not available

8977

8977

HEADLIGHT LAMP

$

$

Not available

8978

8978

HEADLIGHT BULB

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

8997

8997

LOWER BODY W/DECALS

$

$

Not available

9082

9082

SEAT FRAME PIVOT ROD

$

$

Not available

9419

9419

SEAT FRAME WLDT

$

$

Not available
