ZTR 6025 - Dixon Zero-Turn Mower (2001) BODY & TRANSMISSION Parts Diagram

Zero-Turn Mower

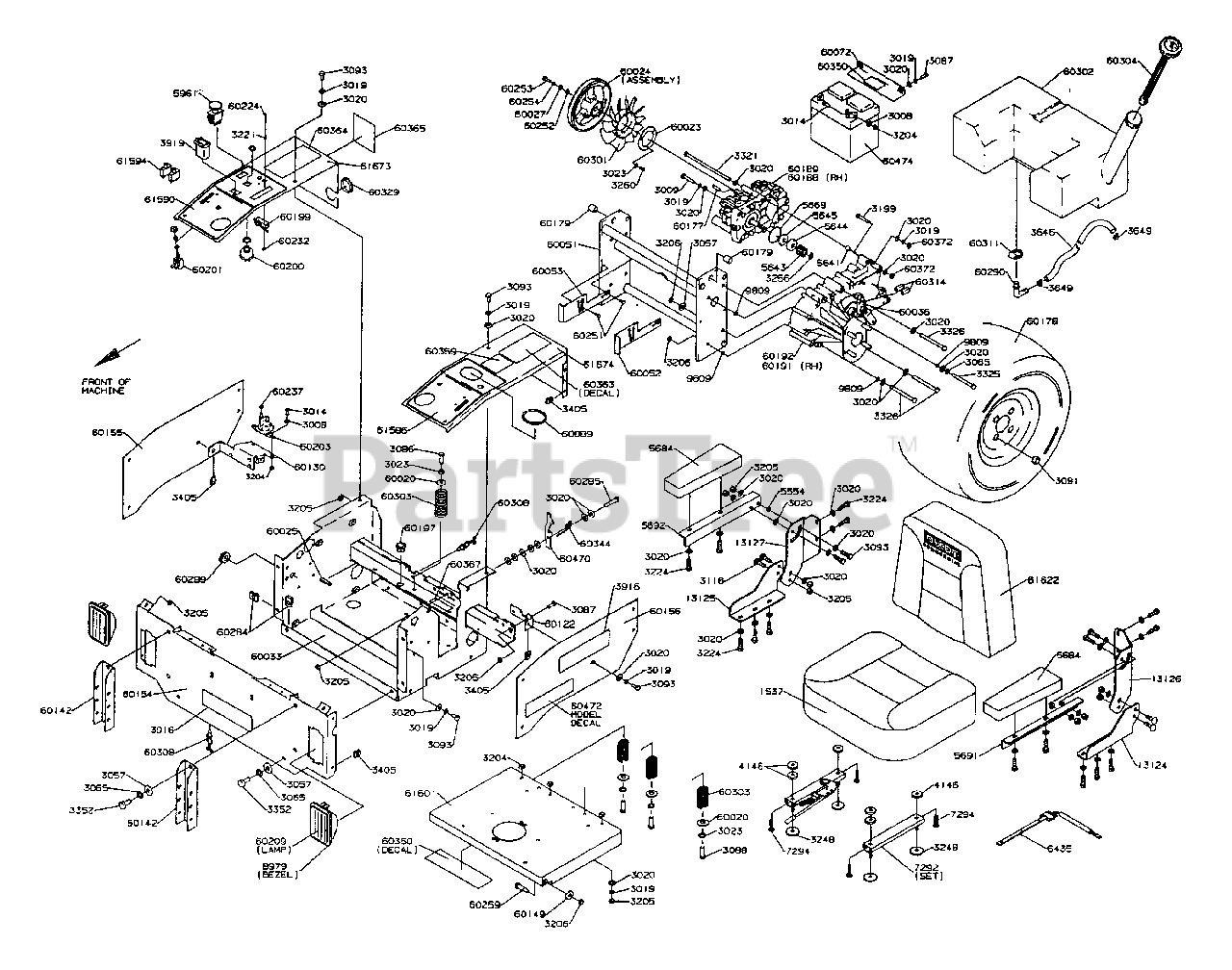

BODY & TRANSMISSION Parts Diagram

  • Title

1537

1537

SEAT BOTTOM

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3086

3086

1/4-20X1-1/4 HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3199

3199

5/16-18X2-1/4HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3221

3221

R/B 3145 #8 SAE FLAT WASHER

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3256

3256

SNAP RING

$

$

Not available

3260

3260

1/4-20X1/2 HHB GR5

$

$

Not available

3321

3321

5/16-18X8 HHB GR8

$

$

Not available

3325

3325

$

$

Not available

3326

3326

3/8-16X4 HHB GR8

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5641

5641

G-BOX MOUNT SPACER

$

$

Not available

5643

5643

INPUT GEAR - GB

$

$

Not available

5644

5644

BEARING - GEARBOX

$

$

Not available

5645

5645

BEARING SPACER - GB

$

$

Not available

5669

5669

O RING

$

$

Not available

5684

5684

ARMREST

$

$

Not available

5691

5691

L.H. ARM REST BRACKET

$

$

Not available

5692

5692

R.H. ARM REST BRACKET

$

$

Not available

5961

5961

CLUTCH SWITCH

$

$

Not available

6435

6435

SEAT SWITCH ASSEMBLY

$

$

Not available

7292

7292

R/B 7292 SLIDE W/O ADJUSTER

$

$

Not available

7294

7294

R/B 3433 5/16-18X1`TORX PNHD

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

9809

9809

O RING

$

$

Not available

13124

13124

R/B 13124 L.H. SEAT BOTTOM BR

$

$

Not available

13125

13125

R/B 13125 R.H. SEAT BOTTOM BR

$

$

Not available

13126

13126

R/B 13126 LH SEAT BACK BRACKE

$

$

Not available

13127

13127

R/B 13127 RH SEAT BACK BRACKE

$

$

Not available

60020

60020

WASHER

$

$

Not available

60023

60023

WASHER 3` O.D.

$

$

Not available

60024

60024

HYDRO PULLEY ASM.

$

$

Not available

60025

60025

EDGE GUARD

$

$

Not available

60027

60027

WASHER

$

$

Not available

60033

60033

$

$

Not available

60036

60036

BRAKE YOKE MACHINED

$

$

Not available

60051

60051

$

$

Not available

60052

60052

FREEWHEEL BAR L.H.

$

$

Not available

60053

60053

FREEWHEEL BAR R.H.

$

$

Not available

60072

60072

BATTERY CLAMP ANGLE ASSE

$

$

Not available

60122

60122

FENDER SKIRT BRKT LH

$

$

Not available

60130

60130

FENDER SKIRT/SOLENOID BR

$

$

Not available

60142

60142

STABILIZER MTG CHANNEL B

$

$

Not available

60149

60149

WASHER 10GA X .375ID X

$

$

Not available

60154

60154

SEAT SUPPT ASSY DIXON

$

$

Not available

60155

60155

F-SKRT ASSY RH DIXON 22

$

$

Not available

60156

60156

F-SKRT ASSY LH DIXON 22

$

$

Not available

60177

60177

5 MM X 25 MM KEY

$

$

Not available

60178

60178

TIRE/WHEEL AS`Y 20-10X1

$

$

Not available

60179

60179

BUSHING DX. 5/8X3/4X3/4

$

$

Not available

60188

60188

HYDRO BDU-10L-119

$

$

Not available

60189

60189

R/B 7250 `HYDRO BDU-10L-218

$

$

Not available

60191

60191

GEARBOX D-3612

$

$

Not available

60192

60192

GEARBOX D-3613

$

$

Not available

60197

60197

BUSHING PLASTIC #SB-875-

$

$

Not available

60199

60199

SW ENCL SPDT 15A HINGED

$

$

Not available

60200

60200

KEY SWITCH 3 POS

$

$

Not available

60201

60201

SWITCH PUSH-PULL 10A 3/8

$

$

Not available

60203

60203

SOLENOID 12V STARTER 4

$

$

Not available

60209

60209

HEADLIGHT SPEAKER 12VDC

$

$

Not available

60224

60224

MACH SCR RND 6-32X1 PHI

$

$

Not available

60232

60232

LOCKNUT #6-32 NYLOC

$

$

Not available

60237

60237

NUT 5/16-24UNF GR. 5 P

$

$

Not available

60251

60251

DRIVE STUD 1/4 X 1/2` L

$

$

Not available

60252

60252

INT. RETAINING RING 15

$

$

Not available

60253

60253

CAPSCREW HH 6MM X 16MM

$

$

Not available

60254

60254

LOCKWASHER HELICAL SPRI

$

$

Not available

60259

60259

SHSS 1/2 X 1-1/2

$

$

Not available

60284

60284

U-NUT 3/8-16 THRD

$

$

Not available

60285

60285

SCSS 3/8` BODY X 1` LG.

$

$

Not available

60289

60289

GROMMET RUBBER LAVELLE #

$

$

Not available

60290

60290

ELBOW 90 D 1/4HS X1/4 NP

$

$

Not available

60301

60301

FAN 7` PLASTIC: 10 BLAD

$

$

Not available

60302

60302

FUEL TANK: GEARDRIVE

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60304

60304

FUEL GAUGE CAP

$

$

Not available

60308

60308

BLIND HOLE KURLY-LOC

$

$

Not available

60311

60311

CLAMP .31MIN1.87 MAX HOS

$

$

Not available

60314

60314

BRAKE PUCK 6025/7025 (1)

$

$

Not available

60329

60329

GROMMET 1.25

$

$

Not available

60344

60344

TORISION SPRING

$

$

Not available

60350

60350

TAG BATTERY CABLE REMOVA

$

$

Not available

60359

60359

DECAL, CAUTION SHUT OFF

$

$

Not available

60360

60360

DECAL, WARNING BATTERY

$

$

Not available

60363

60363

DECAL `WARNING READ OPE

$

$

Not available

60364

60364

DECAL `WARNING OPERATE

$

$

Not available

60365

60365

DECAL`TO FREEWHEEL MACHI

$

$

Not available

60367

60367

DECAL `TRANSMISSION OIL

$

$

Not available

60372

60372

5/16-18 LOCKNUT STOVER

$

$

Not available

60470

60470

SEAT LATCH

$

$

Not available

60472

60472

DECAL 6025 MODEL

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available

60889

60889

$

$

Not available

61586

61586

DECAL, LH FENDER CAP

$

$

Not available

61590

61590

DECAL, RH FENDER CAP

$

$

Not available

61594

61594

CIRCUIT BREAKER 30 AMP

$

$

Not available

61601

61601

SEAT BRKT WLDT

$

$

Not available

61622

61622

SEAT BACK

$

$

Not available

61673

61673

FENDER CAP ASM.-RH

$

$

Not available

61674

61674

FENDER CAP ASM.-LH

$

$

Not available
