ZTR 6023 - Dixon Zero-Turn Mower (2002) TRACTOR & DECK DRIVE Parts Diagram

Zero-Turn Mower

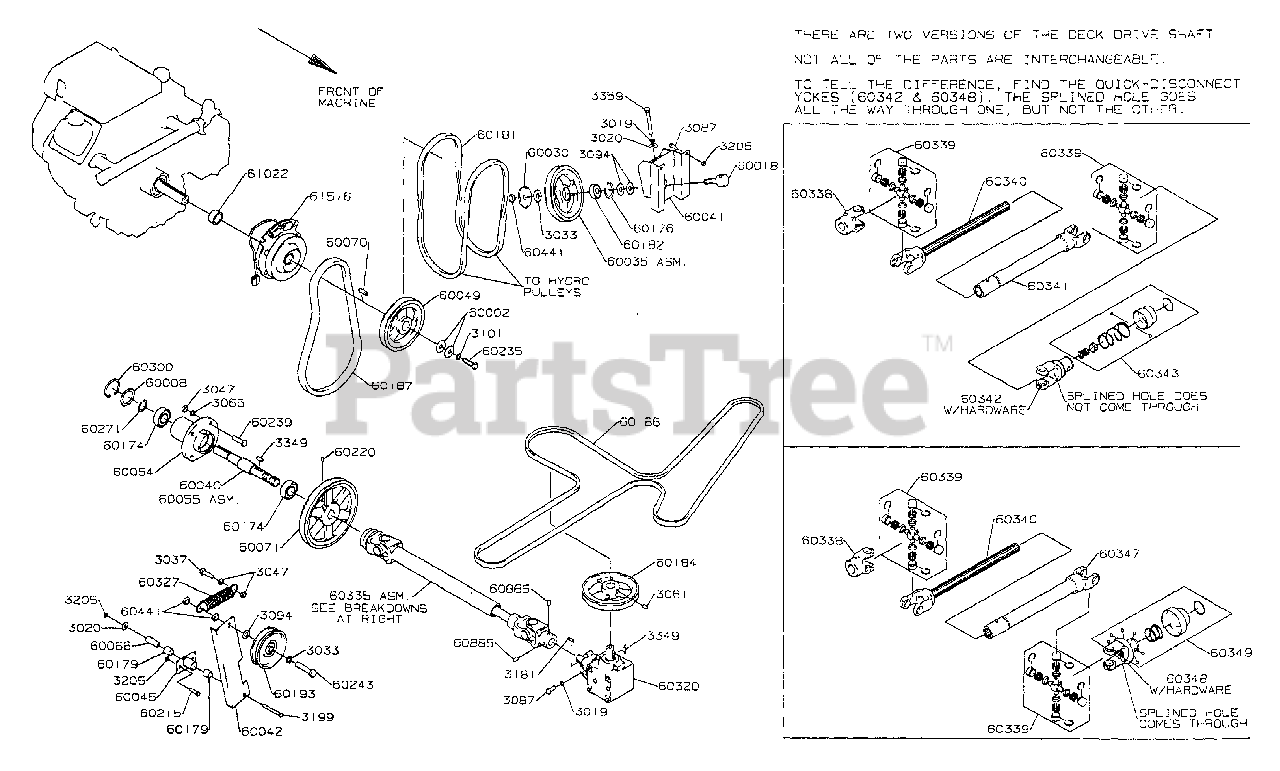

TRACTOR & DECK DRIVE Parts Diagram

  • Title

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3047

3047

NUT, L 3/8-24 UNF HEX

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3181

3181

WOODRUFF KEY #605

$

$

Not available

3199

3199

5/16-18X2-1/4HHB GR5

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3349

3349

KEY, WOODRUFF KEY #806

$

$

Not available

3359

3359

5/16-18X3HHBG5 ALTHD

$

$

Not available

60002

60002

WASHER 15/32` ID

$

$

Not available

60008

60008

WASHER SEAL

$

$

Not available

60018

60018

STUD/PLATED/ADJ.

$

$

Not available

60030

60030

WASHER BEARING CAP

$

$

Not available

60035

60035

IDLER PULLEY ASM

$

$

Not available

60040

60040

JACKSHAFT SPLINED

$

$

Not available

60041

60041

IDLER MNT CHANNEL WLDT

$

$

Not available

60042

60042

IDLER ARM JACK SHAFT

$

$

Not available

60045

60045

IDLER MOUNT TUBE WLDT.

$

$

Not available

60049

60049

PULLEY/HYDRO DR

$

$

Not available

60054

60054

SPINDLE HOUSING

$

$

Not available

60055

60055

$

$

Not available

60066

60066

MOUNTING PIN PLATED

$

$

Not available

60070

60070

KEY 1/4`SQ X 1-1/4`

$

$

Not available

60071

60071

JACKSHAFT PULLEY (621-126P)

$

$

Not available

60174

60174

BEARING #6205-2RS

$

$

Not available

60176

60176

SNAP RING INTERNAL 40M

$

$

Not available

60179

60179

BUSHING DX. 5/8X3/4X3/4

$

$

Not available

60181

60181

BELT A-80 `CNA` KEVLA

$

$

Not available

60182

60182

BRG FAFNIR# 203KRR5 WID

$

$

Not available

60184

60184

PULLEY AK-64X1` BORE

$

$

Not available

60186

60186

BELT A-120 (SPECIAL) KE

$

$

Not available

60187

60187

BELT BK-44

$

$

Not available

60193

60193

PULLEY FLAT IDLER

$

$

Not available

60215

60215

CAPSCREW HX 5/16-18X7/8

$

$

Not available

60220

60220

CP PT SCKT HD STSCR 1/4-

$

$

Not available

60235

60235

HCS 7/16-20 X 1-1/2 GR 5 ZD

$

$

Not available

60239

60239

CAPSCREW 3/8-24X1-1/2

$

$

Not available

60243

60243

CAPSCREW 1/2-13X2-1/4

$

$

Not available

60271

60271

SNAP RING 25MM EXTERNA

$

$

Not available

60300

60300

SNAP RING INT. F/52MM B

$

$

Not available

60320

60320

GEARBOX 60` DECK

$

$

Not available

60327

60327

SPRING EXT. 1 1/4O.D.X

$

$

Not available

60335

60335

DECK DRIVE SHAFT/PTO

$

$

Not available

60338

60338

YOKE (WEASLER)

$

$

Not available

60339

60339

CROSS & BEARING KIT (WEA

$

$

Not available

60340

60340

YOKE SHAFT WLDT.

$

$

Not available

60341

60341

R/B 60335 ` YOKE & TUBE WLDT.

$

$

Not available

60342

60342

AUTO-LOK YOKE ASM.

$

$

Not available

60343

60343

AUTO-LOC REPAIR KIT

$

$

Not available

60347

60347

YOKE & TUBE WLDT.

$

$

Not available

60348

60348

AUTO-LOC YOKE ASM.

$

$

Not available

60349

60349

AUTO-LOC REPAIR KIT

$

$

Not available

60441

60441

NUT HX ZNC PLTD 1/2-13

$

$

Not available

60885

60885

SETSCREW SOCKET 3/8-16

$

$

Not available

61022

61022

SIZE=5 P/N 60017 SPACER

$

$

Not available

61516

61516

R/B 61516 ELECTRIC CLUTCH

$

$

Not available
