ZTR 6022 - Dixon Zero-Turn Mower (1998) TAIL WHEEL KIT Parts Diagram

Zero-Turn Mower

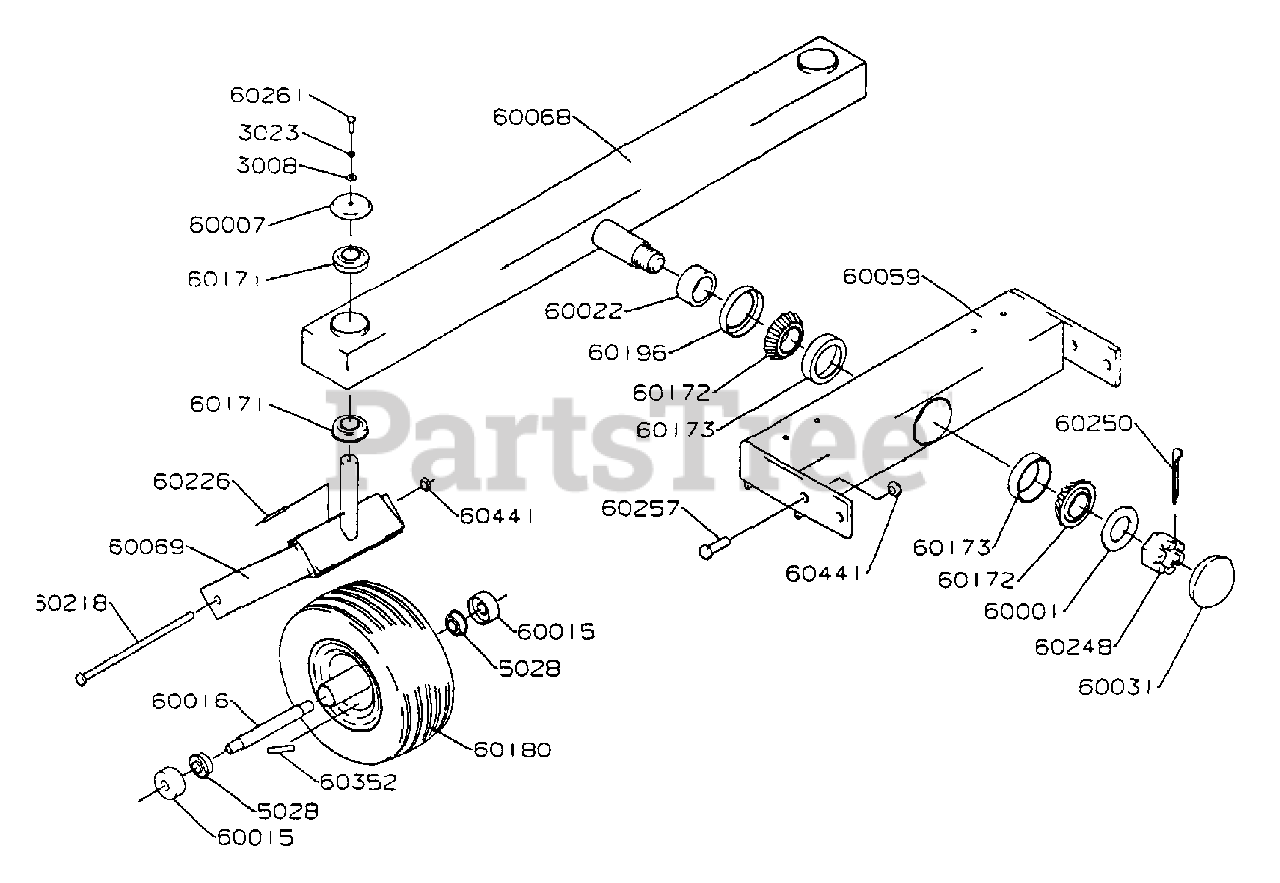

TAIL WHEEL KIT Parts Diagram

  • Title

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

5028

5028

TRANSAXLE BEARING

$

$

Not available

60001

60001

WASHER 1` 10 GA

$

$

Not available

60007

60007

CAP BRG BLACK

$

$

Not available

60015

60015

SHIELD BEARING

$

$

Not available

60016

60016

SPACER BEARING

$

$

Not available

60022

60022

BEARING SPACER

$

$

Not available

60031

60031

GREASE CAP PLATED

$

$

Not available

60059

60059

REAR CHANNEL WLDT.

$

$

Not available

60068

60068

REAR AXLE WELDMENT

$

$

Not available

60069

60069

CASTER YOKE WLDT.

$

$

Not available

60171

60171

BEARING SPD SF-16-32

$

$

Not available

60172

60172

BEARING CONE

$

$

Not available

60173

60173

BEARING CUP 2.3280 OD LM

$

$

Not available

60180

60180

TIRE 13X5-6 W/WHEEL R

$

$

Not available

60196

60196

SEAL OIL 1.688 SHAFT CR

$

$

Not available

60218

60218

CAPSCREW HX 1/2-13 X 8

$

$

Not available

60226

60226

PIN SPIROL 3/16 X 2` M

$

$

Not available

60248

60248

HEX NUT SLOTTED 1` - 1

$

$

Not available

60250

60250

COTTER PIN 3/16 X 2

$

$

Not available

60257

60257

CAPSCREW HEXHEAD 1/2-13

$

$

Not available

60261

60261

BOLT 1/4-20X3/4` W/NYLO

$

$

Not available

60352

60352

TIRE PRESSURE DECAL

$

$

Not available

60441

60441

NUT HX ZNC PLTD 1/2-13

$

$

Not available
