ZTR 6022 - Dixon Zero-Turn Mower (1998) MOWER DECK 48" Parts Diagram

Zero-Turn Mower

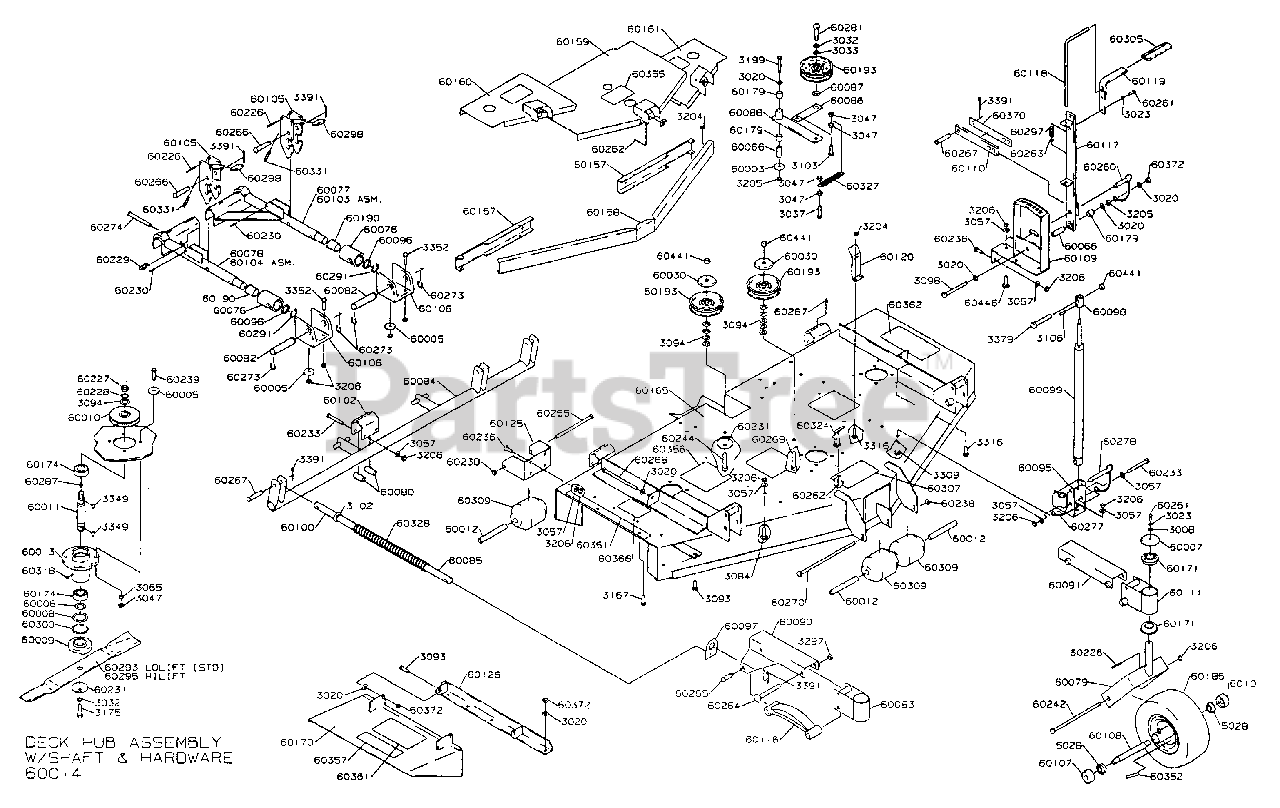

MOWER DECK 48" Parts Diagram

  • Title

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3032

3032

1/2 HELICAL L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3047

3047

NUT, L 3/8-24 UNF HEX

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3098

3098

5/16-18X3 HHB GR5

$

$

Not available

3102

3102

5/8 STD FLATWASHER

$

$

Not available

3103

3103

3/8-24 X 1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3175

3175

$

$

Not available

3199

3199

5/16-18X2-1/4HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3309

Dixon 3309

3/8-16X1-1/2 CAR BLT

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3349

3349

KEY, WOODRUFF KEY #806

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3391

3391

1/8DIAX1-1/2 COT PIN

$

$

Not available

5028

5028

TRANSAXLE BEARING

$

$

Not available

6010

6010

DECK HUB-MACHINE

$

$

Not available

60003

60003

WASHER 5/16` ID

$

$

Not available

60005

60005

SPINDLE SPACER REINFORCE

$

$

Not available

60006

60006

ARBOR SPACER MANUFACTUR

$

$

Not available

60007

60007

CAP BRG BLACK

$

$

Not available

60008

60008

WASHER SEAL

$

$

Not available

60009

60009

SPACER - BLADE

$

$

Not available

60010

60010

PULLEY 4` DIA

$

$

Not available

60011

60011

SPINDLE SHAFT MM BRG NO

$

$

Not available

60012

60012

BUSHING

$

$

Not available

60013

60013

SPINDLE HOUSING

$

$

Not available

60014

60014

R/B 60602 DECK SPINDLE ASS`Y:

$

$

Not available

60030

60030

WASHER BEARING CAP

$

$

Not available

60066

60066

MOUNTING PIN PLATED

$

$

Not available

60076

60076

PUSH ROD END

$

$

Not available

60077

60077

PUSH BAR WLD`T L.H.

$

$

Not available

60078

60078

PUSH BAR WLD`T R.H.

$

$

Not available

60079

60079

CASTER YOLK WELDMENT

$

$

Not available

60080

60080

SPACER

$

$

Not available

60082

60082

REAR DECK MOUNT PIN

$

$

Not available

60083

60083

CASTER TUBE WLDT RH

$

$

Not available

60084

60084

DECK LIFT ROD WLDT.

$

$

Not available

60085

60085

LINK SHAFT PLATED

$

$

Not available

60086

60086

SPRING EXTENSION

$

$

Not available

60087

60087

IDLER STAND

$

$

Not available

60088

60088

IDLER ARM WLDT

$

$

Not available

60090

60090

LIFT CHANNEL WLD`T R.H.

$

$

Not available

60091

60091

$

$

Not available

60095

60095

SPRING CLEVIS WLD LH

$

$

Not available

60096

60096

WASHER THRUST

$

$

Not available

60097

60097

TAB SLIDING SPRING (BLK)

$

$

Not available

60098

60098

OUTFRONT SHOCK CONNEC

$

$

Not available

60099

60099

OUTFRONT SHOCK ASM

$

$

Not available

60100

60100

ADJUSTABLE ROD END PLATD

$

$

Not available

60102

60102

REAR LIFT HANGER BRKT.(B

$

$

Not available

60103

60103

PUSH BAR ASS`Y. LH

$

$

Not available

60104

60104

PUSH BAR ASS`Y. RH

$

$

Not available

60105

60105

HANGER WLDT.

$

$

Not available

60106

60106

PUSHROD DECK WLDT BL

$

$

Not available

60107

60107

SHIELD BEARING

$

$

Not available

60108

60108

SPACER BEARING

$

$

Not available

60109

60109

DECK HANDLE MT WLD 48` O

$

$

Not available

60110

60110

LINK LOWER DECK HANDLE

$

$

Not available

60111

60111

CASTER TUBE WLDT. LH

$

$

Not available

60116

60116

CASTER ARM/OF MOWER MA

$

$

Not available

60117

60117

LOWER HANDLE WLDT.

$

$

Not available

60118

60118

ROD CATCH(OFFSET)PLATED

$

$

Not available

60119

60119

UPPER HANDLE (OFFSET)

$

$

Not available

60120

60120

HANDLE CATCH (OFFSET)

$

$

Not available

60125

60125

R/B 60738 REAR SCALPER BRKT.

$

$

Not available

60126

60126

STIFFNER WLDT OUTLET:48/

$

$

Not available

60157

60157

BELTCVR REAR 60` DIX-BLU

$

$

Not available

60158

60158

BELTCVR FRONT 60` DIX-BL

$

$

Not available

60159

60159

BELTCVR ASSY CENT 60` DI

$

$

Not available

60160

60160

BELTCVR ASSY RH 60` DIX-

$

$

Not available

60161

60161

BELTCVR ASSY LH 60` DIX

$

$

Not available

60165

60165

DECK PAN W/DECALS 60`

$

$

Not available

60167

60167

BELTCVR REAR 48` DIX-BLU

$

$

Not available

60170

60170

$

$

Not available

60171

60171

BEARING SPD SF-16-32

$

$

Not available

60174

60174

BEARING #6205-2RS

$

$

Not available

60179

60179

BUSHING DX. 5/8X3/4X3/4

$

$

Not available

60185

60185

10` TIRE WITH RIM

$

$

Not available

60190

60190

FLANGED BEARING 1`I.D.X

$

$

Not available

60193

60193

PULLEY FLAT IDLER

$

$

Not available

60226

60226

PIN SPIROL 3/16 X 2` M

$

$

Not available

60227

60227

NUT 3/4-16 UNF HEX JAM

$

$

Not available

60228

60228

LOCKWASHER 3/4 STD SPLIT

$

$

Not available

60229

60229

COTTER RUE RING 5/16-3/

$

$

Not available

60230

60230

R/B 3054 PIN SPIROL 3/16 X 1

$

$

Not available

60231

60231

WASHER 1/2` CUPPED

$

$

Not available

60233

60233

R/B 12198 CAPSCREW 3/8-16 X

$

$

Not available

60236

60236

CAPSCREW 3/8-16X7/8

$

$

Not available

60238

60238

R/B 3245 LOCKNUT 3/8-16 TOPLO

$

$

Not available

60239

60239

CAPSCREW 3/8-24X1-1/2

$

$

Not available

60242

60242

CAPSCREW 1/2-13X71/2

$

$

Not available

60244

60244

CAPSCREW 1/2-13X2-3/4

$

$

Not available

60255

60255

3/8-16X6-1/2HHB GR8

$

$

Not available

60260

60260

CLEVIS PIN ASM 1.3`

$

$

Not available

60261

60261

BOLT 1/4-20X3/4` W/NYLO

$

$

Not available

60262

60262

BLIND RIVET 1/8` DIA. X

$

$

Not available

60263

60263

E-RING FOR 3/8` DIA. SHA

$

$

Not available

60264

60264

$

$

Not available

60265

60265

CLEVIS PIN 1/2X1-1/2` L

$

$

Not available

60266

60266

R/B 12062 CLEVIS PIN 1/2X2-1

$

$

Not available

60267

60267

CLEVIS PIN 1/2X2`LG.

$

$

Not available

60268

60268

CAPSCREW 3/8-16 X 6` FU

$

$

Not available

60269

60269

CARRIAGE BOLT 1/2-13X2-

$

$

Not available

60270

60270

CAPSCREW 3/8-16 X 10-1/

$

$

Not available

60273

60273

SNAP RING EXT. FOR 7/8`

$

$

Not available

60274

60274

CLEVIS PIN 3/8 X 3-1/2`

$

$

Not available

60277

60277

LYNCH PIN W/SASH CHAIN A

$

$

Not available

60278

60278

PIN, CLEVIS 2.4 W/SASH

$

$

Not available

60281

60281

BOLT 1/2-13 X 1-3/8` SP

$

$

Not available

60287

60287

FITTING GREASE 1/4-28 SE

$

$

Not available

60291

60291

SNAP RING EXTERNAL 1` SH

$

$

Not available

60293

60293

BLD 60` LO LIFT

$

$

Not available

60295

60295

R/B 61693 BLADE HI-LIFT LONG

$

$

Not available

60297

60297

SPRING COMPRESSION .48

$

$

Not available

60298

60298

GRIP VINYL 1/4 X 1 X 3

$

$

Not available

60300

60300

SNAP RING INT. F/52MM B

$

$

Not available

60305

60305

R/B 3882 GRIP HANDLE

$

$

Not available

60307

60307

SAFETY TREAD 3-1/4` X 6

$

$

Not available

60309

60309

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

60318

60318

GREASE VENT 5 LBS. 1/8

$

$

Not available

60324

60324

T-HANDLE DRAW LATCH

$

$

Not available

60327

60327

SPRING EXT. 1 1/4O.D.X

$

$

Not available

60328

60328

SPRING COMP. 1.406 O.D.

$

$

Not available

60331

60331

SPRING EXT. 2-7/32` LG.

$

$

Not available

60351

60351

DECAL, CHUTE (SAFETY)

$

$

Not available

60352

60352

TIRE PRESSURE DECAL

$

$

Not available

60355

60355

DECAL, WARNING ROTATING

$

$

Not available

60356

60356

DECAL, DANGER KEEP AWAY

$

$

Not available

60357

60357

DECAL, WARNING TO AVOID

$

$

Not available

60361

60361

DECAL, DANGER ROTATING

$

$

Not available

60362

60362

DECAL `WARNING READ OPE

$

$

Not available

60366

60366

DECAL, GREASE DECK SPIND

$

$

Not available

60370

60370

DECAL CUTTING HEIGHT(BH

$

$

Not available

60372

60372

5/16-18 LOCKNUT STOVER

$

$

Not available

60441

60441

NUT HX ZNC PLTD 1/2-13

$

$

Not available

60446

60446

3/8-16X1-1/4 CARRIAGE

$

$

Not available
