ZTR 6022 - Dixon Zero-Turn Mower (1998) FRAME, TAIL WHEEL & ENGINE CONTROLS Parts Diagram

Zero-Turn Mower

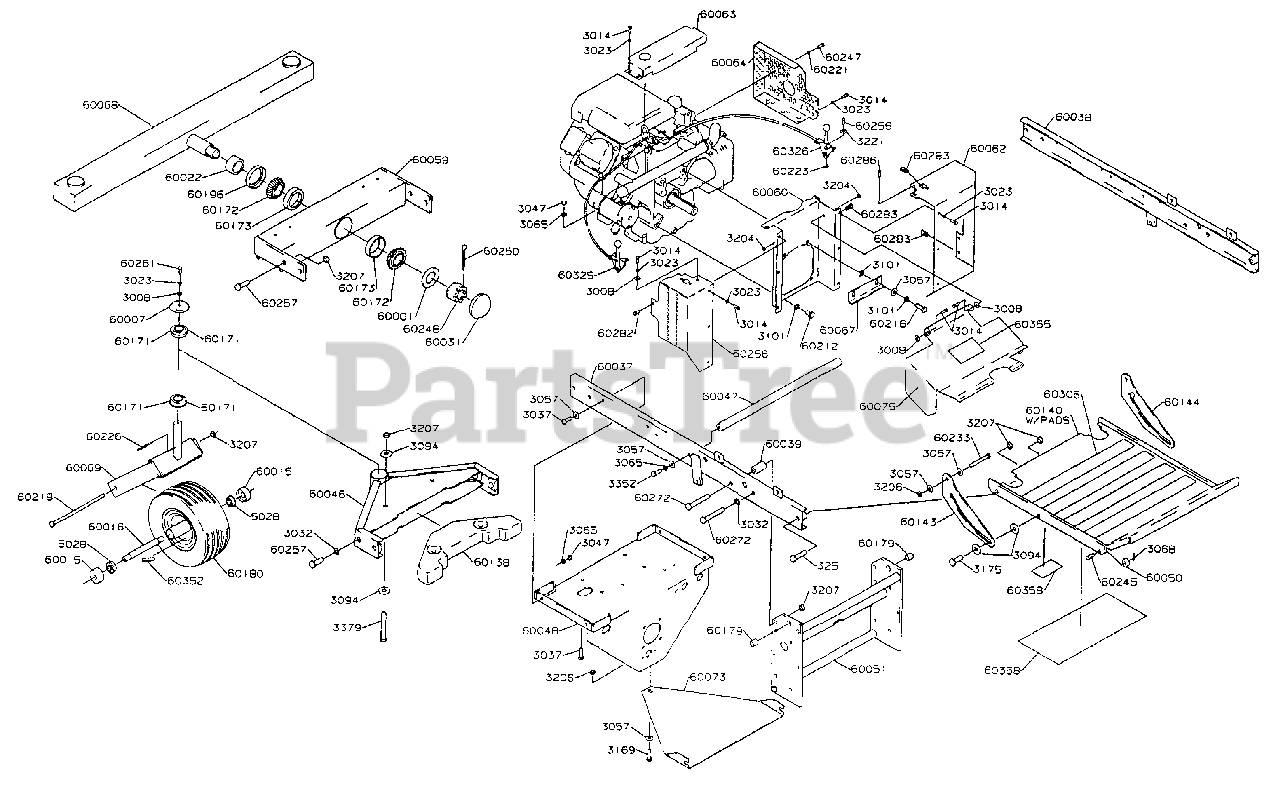

FRAME, TAIL WHEEL & ENGINE CONTROLS Parts Diagram

  • Title

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3032

3032

1/2 HELICAL L-WASHER

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3047

3047

NUT, L 3/8-24 UNF HEX

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3175

3175

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3221

3221

R/B 3145 #8 SAE FLAT WASHER

$

$

Not available

3251

3251

BOLT 1/2-13 X 2 HH

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

5028

5028

TRANSAXLE BEARING

$

$

Not available

60001

60001

WASHER 1` 10 GA

$

$

Not available

60007

60007

CAP BRG BLACK

$

$

Not available

60015

60015

SHIELD BEARING

$

$

Not available

60016

60016

SPACER BEARING

$

$

Not available

60022

60022

BEARING SPACER

$

$

Not available

60031

60031

GREASE CAP PLATED

$

$

Not available

60037

60037

$

$

Not available

60038

60038

$

$

Not available

60039

60039

SPACER HYDRO MOUNT

$

$

Not available

60046

60046

TRI WHEEL WLD MT

$

$

Not available

60047

60047

CROSS BAR FRAME

$

$

Not available

60048

60048

MOTOR MOUNT WLDT

$

$

Not available

60050

60050

WHEEL ROLLER FOOT DECK

$

$

Not available

60051

60051

$

$

Not available

60059

60059

REAR CHANNEL WLDT.

$

$

Not available

60060

60060

$

$

Not available

60062

60062

R/B 61112 HEAT SHIELD LH

$

$

Not available

60063

60063

HEAT SHIELD TOP

$

$

Not available

60064

60064

MUFFLER GUARD

$

$

Not available

60067

60067

CLUTCH STOP BRACKET OF

$

$

Not available

60068

60068

REAR AXLE WELDMENT

$

$

Not available

60069

60069

CASTER YOKE WLDT.

$

$

Not available

60073

60073

SKID PLATE O/F

$

$

Not available

60075

60075

PULLEY COVER ASM

$

$

Not available

60138

60138

R/B 60908 TAIL WEIGHT PTD BLA

$

$

Not available

60140

60140

FOOT DECK ASSY

$

$

Not available

60143

60143

HANGER FOOT DECK RH

$

$

Not available

60144

60144

HANGER FOOT DECK LH

$

$

Not available

60171

60171

BEARING SPD SF-16-32

$

$

Not available

60172

60172

BEARING CONE

$

$

Not available

60173

60173

BEARING CUP 2.3280 OD LM

$

$

Not available

60179

60179

BUSHING DX. 5/8X3/4X3/4

$

$

Not available

60180

60180

TIRE 13X5-6 W/WHEEL R

$

$

Not available

60196

60196

SEAL OIL 1.688 SHAFT CR

$

$

Not available

60212

60212

CAPSCREW HH 7/16-14X3/4

$

$

Not available

60216

60216

CAPSCREW HX 7/16-14X1-1/

$

$

Not available

60218

60218

CAPSCREW HX 1/2-13 X 8

$

$

Not available

60221

60221

R/B 3188 LOCKWASHER STAR EXT

$

$

Not available

60223

60223

NUT #8-32 WITH NYLON I

$

$

Not available

60226

60226

PIN SPIROL 3/16 X 2` M

$

$

Not available

60233

60233

R/B 12198 CAPSCREW 3/8-16 X

$

$

Not available

60245

60245

CLEVIS PIN 3/8 X 1

$

$

Not available

60247

60247

CAPSCREW #10-32 X 1/2`

$

$

Not available

60248

60248

HEX NUT SLOTTED 1` - 1

$

$

Not available

60250

60250

COTTER PIN 3/16 X 2

$

$

Not available

60256

60256

MACH SCR RND 8-32X1/2 PH

$

$

Not available

60257

60257

CAPSCREW HEXHEAD 1/2-13

$

$

Not available

60261

60261

BOLT 1/4-20X3/4` W/NYLO

$

$

Not available

60272

60272

CAPSCREW 1/2-13X3-1/2

$

$

Not available

60282

60282

CAPSCREW HH 6MM X 10MM

$

$

Not available

60283

60283

U-NUT 1/4-20 THRD

$

$

Not available

60286

60286

SCREW HX SLT KOH-M-05450

$

$

Not available

60306

60306

SAFETY TREAD 2` X 18`

$

$

Not available

60325

60325

THROTTLE CABLE

$

$

Not available

60326

60326

CHOKE CABLE

$

$

Not available

60352

60352

TIRE PRESSURE DECAL

$

$

Not available

60355

60355

DECAL, WARNING ROTATING

$

$

Not available

60358

60358

DECAL, DANGER KEEP AWAY

$

$

Not available

60368

60368

DECAL TILT DECK PROCEDU

$

$
