ZTR 560 - Dixon Zero-Turn Mower (1993) 60" MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

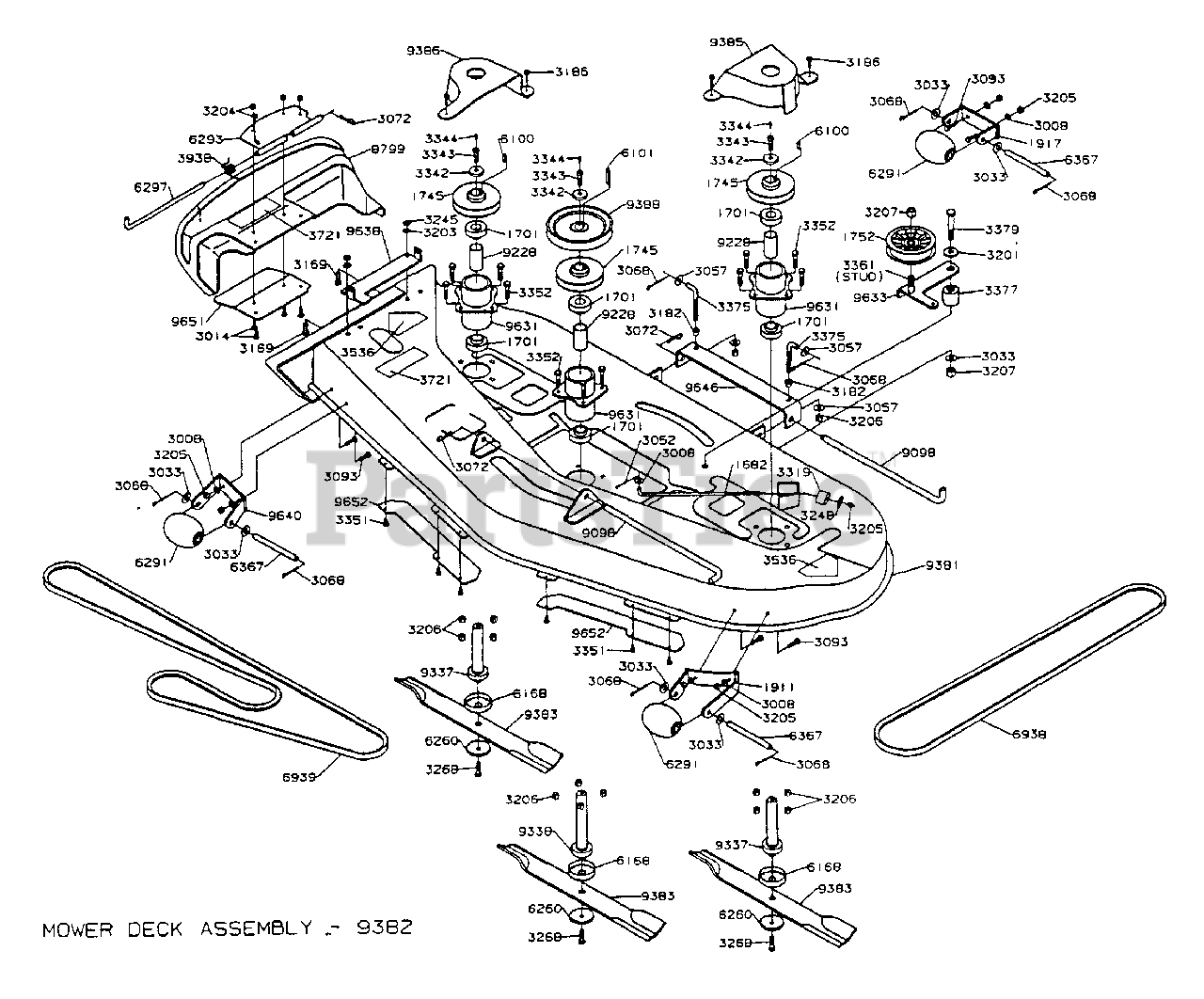

60" MOWER DECK ASSEMBLY Parts Diagram

  • Title

1682

1682

L` ROD

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1745

1745

4-1/2` B PULLEY

$

$

Not available

1752

1752

R/B 1687 PLASTIC IDLER 4`FLAT

$

$

Not available

1911

1911

ROLLER BRKT WLDT

$

$

Not available

1917

1917

REAR ROLLER BRKT WLD

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3072

3072

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3186

Dixon 3186

SCREW, TAP & DR #12-14 X 1

$

$

Not available

3201

3201

WASHER-.533IDX1.37OD

$

$

Not available

3203

3203

3/8 SAE FLAT WASHER

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3343

3343

HUB BOLT-DRILLED

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3375

3375

L-ROD 3.5

$

$

Not available

3377

3377

SERP. IDLER SPACER

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6260

6260

R/B 6260 WASHER

$

$

Not available

6291

6291

DECK ROLLER

$

$

Not available

6293

6293

DEFLECTOR MT BRKT

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6367

6367

ROLLER SHAFT KIT

$

$

Not available

6938

6938

V-BELT DECK DRIVE

$

$

Not available

6939

6939

SERPENTINE BELT

$

$

Not available

8799

8799

$

$

Not available

9098

9098

HANGER ROD

$

$

Not available

9228

9228

HUB SPACER 2.439

$

$

Not available

9337

9337

SHAFT-TAPPED(SHORT)

$

$

Not available

9338

9338

SHAFT-TAPPED(LONG)

$

$

Not available

9381

9381

492 MOWER DECK WELDMENT

$

$

Not available

9382

9382

492 MOWER DECK ASSEMBLY

$

$

Not available

9383

9383

BLD 60` HI-LIFT

$

$

Not available

9385

9385

BELT GUARD LH

$

$

Not available

9386

9386

BELT GUARD RH

$

$

Not available

9388

9388

DECK PULLEY 6.25

$

$

Not available

9631

9631

HUB WLDT MACHINED

$

$

Not available

9633

9633

SERP IDLER ASM

$

$

Not available

9638

9638

DEFLECTOR HINGE

$

$

Not available

9640

9640

ROLLER BRACKET WLDT

$

$

Not available

9646

9646

LIFT PLATE ASM

$

$

Not available

9651

9651

DEFLECTOR BRACKET

$

$

Not available

9652

9652

BLOW-BY BAFFLE

$

$

Not available
