ZTR 5501 - Dixon Zero-Turn Mower (1995) FUEL/HYDRAULICS TANKS & FITTINGS ASSEMBLY Parts Diagram

Zero-Turn Mower

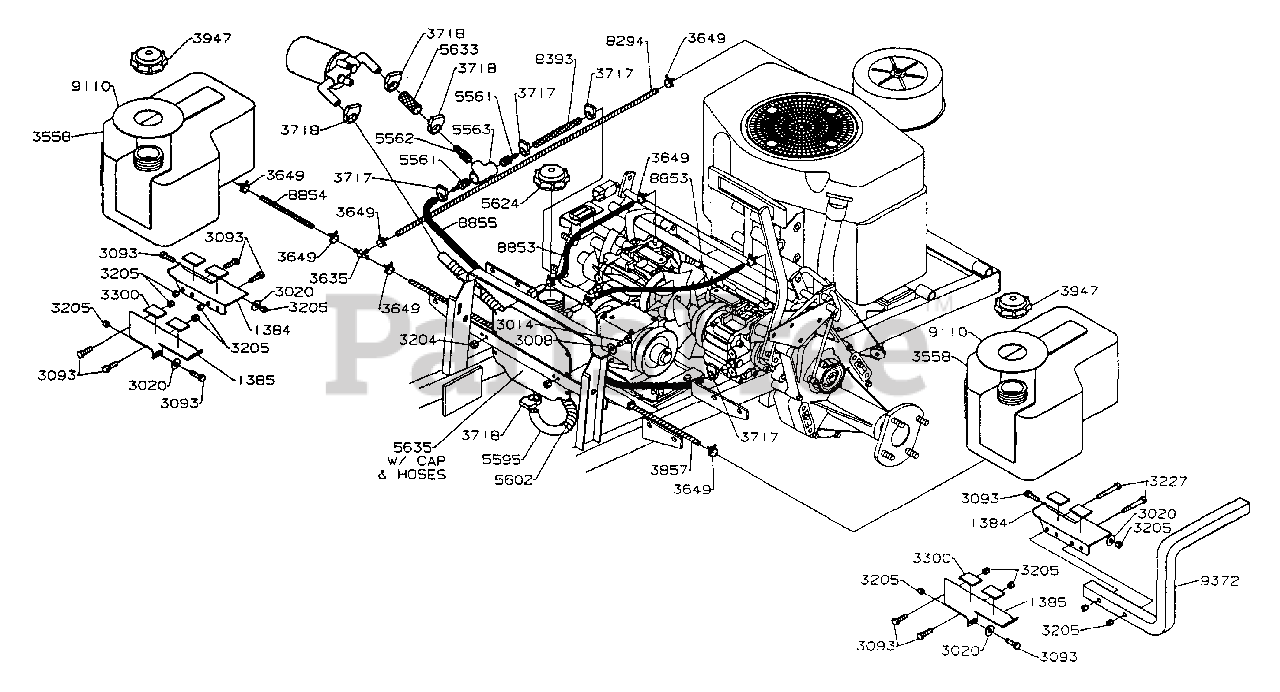

FUEL/HYDRAULICS TANKS & FITTINGS ASSEMBLY Parts Diagram

  • Title

1384

1384

TANK MT BRKT (SHORT)

$

$

Not available

1385

1385

TANK MT BRKT (LONG)

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3558

3558

2 GAL TANK W/CAP

$

$

Not available

3635

3635

FUEL LINE TEE

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3717

3717

CLAMP 3/8

$

$

Not available

3718

3718

5/8 CLAMP

$

$

Not available

3857

3857

$

$

Not available

3947

3947

FUEL CAP

$

$

Not available

5561

5561

MALE ADAPTER

$

$

Not available

5562

Dixon 5562

MALE ADAPTER

$

$

Not available

5563

5563

TEE

$

$

Not available

5595

5595

5/8 HOSE - 14`

$

$

Not available

5602

5602

HOSE GUARD SPRING

$

$

Not available

5624

5624

R/B 5624 RESERVOIR CAP

$

$

Not available

5633

5633

R/B 13173 5/8` HOSE - 2`

$

$

Not available

5635

5635

RESERVOIR ASSEMBLY

$

$

Not available

8294

8294

R/B 3424 HOSE 1/4 X 35.5

$

$

Not available

8393

8393

HOSE 3/8 X 3.75

$

$

Not available

8853

8853

R/B 8856 HOSE 1/4 X 22.5

$

$

Not available

8854

8854

R/B 3808 HOSE 1/4 X 6

$

$

Not available

8855

8855

R/B 8394 HOSE 3/8 X 26.5

$

$

Not available

9110

9110

TANK COVER

$

$

Not available

9372

9372

BODY BRACE

$

$

Not available
