ZTR 542 - Dixon Zero-Turn Mower (1993) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

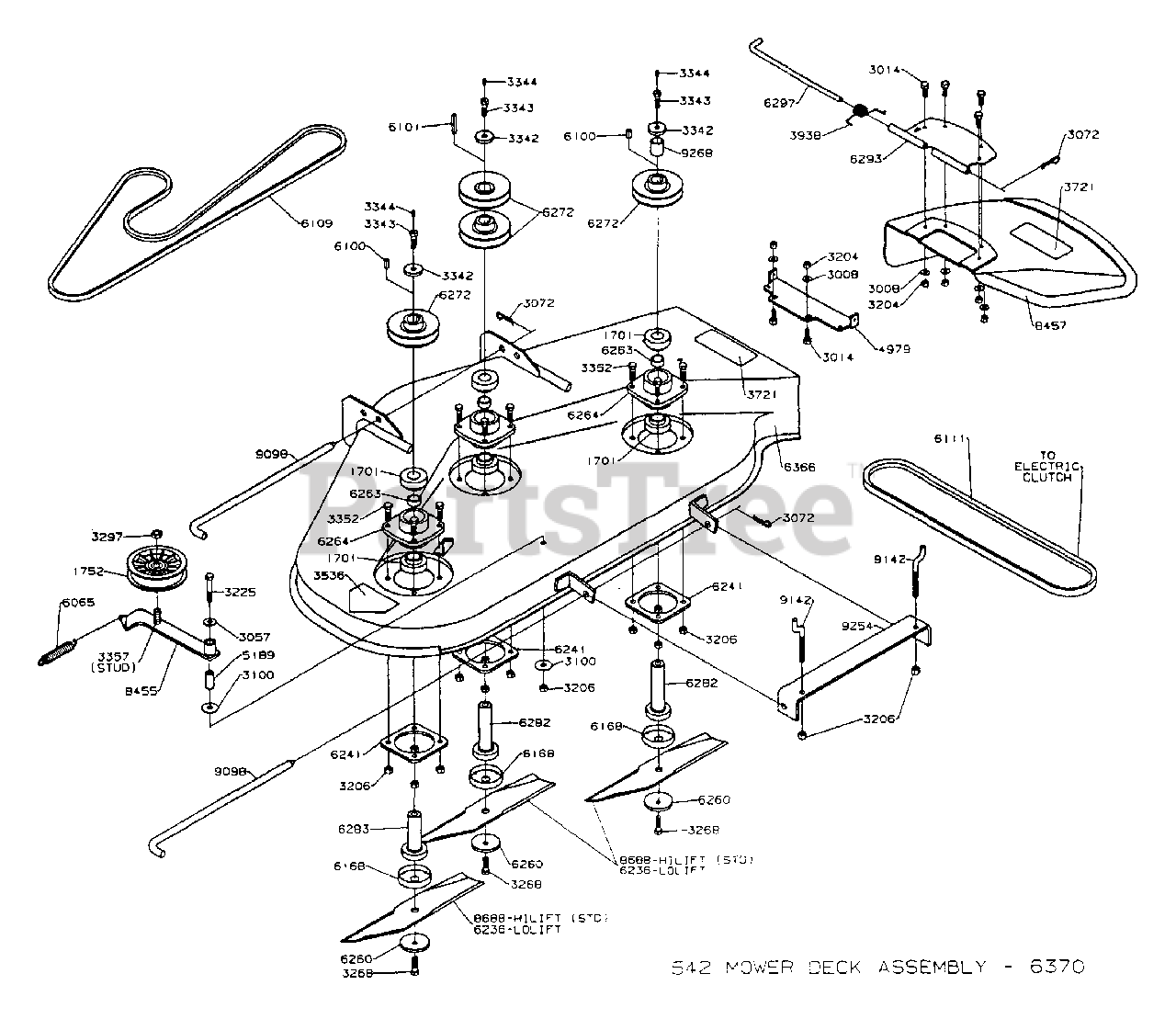

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1701

1701

BEARING-ECC LOCK

$

$

Not available

1752

1752

R/B 1687 PLASTIC IDLER 4`FLAT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3343

3343

HUB BOLT-DRILLED

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3357

3357

IDLER STUD

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

4979

4979

HINGE

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6109

6109

V-BELT SERPENTINE

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6236

6236

MOWER BLADE 42 STD

$

$

Not available

6241

6241

DECK FLANGE

$

$

Not available

6260

6260

R/B 6260 WASHER

$

$

Not available

6263

6263

HUB SPACER - .459

$

$

Not available

6264

6264

DECK HUB W/ZERK

$

$

Not available

6272

6272

V-PULLEY

$

$

Not available

6282

6282

SHAFT ASM 42 L

$

$

Not available

6283

6283

SHAFT ASM 42 S

$

$

Not available

6293

6293

DEFLECTOR MT BRKT

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6366

6366

MOWER DECK WELDMENT

$

$

Not available

6370

6370

DECK ASM (5000)

$

$

Not available

8455

8455

42 SERP IDLER W/STUD

$

$

Not available

8457

8457

42 DEFLECTOR W/DECAL

$

$

Not available

8688

8688

HI-LIFT BLADE-42`

$

$

Not available

9098

9098

HANGER ROD

$

$

Not available

9142

9142

REAR LIFT ROD

$

$

Not available

9254

9254

LIFT PLATE

$

$

Not available

9268

9268

R/B 7983 SPACER 1.25ODX1.14

$

$

Not available
