ZTR 542 - Dixon Zero-Turn Mower (1993) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

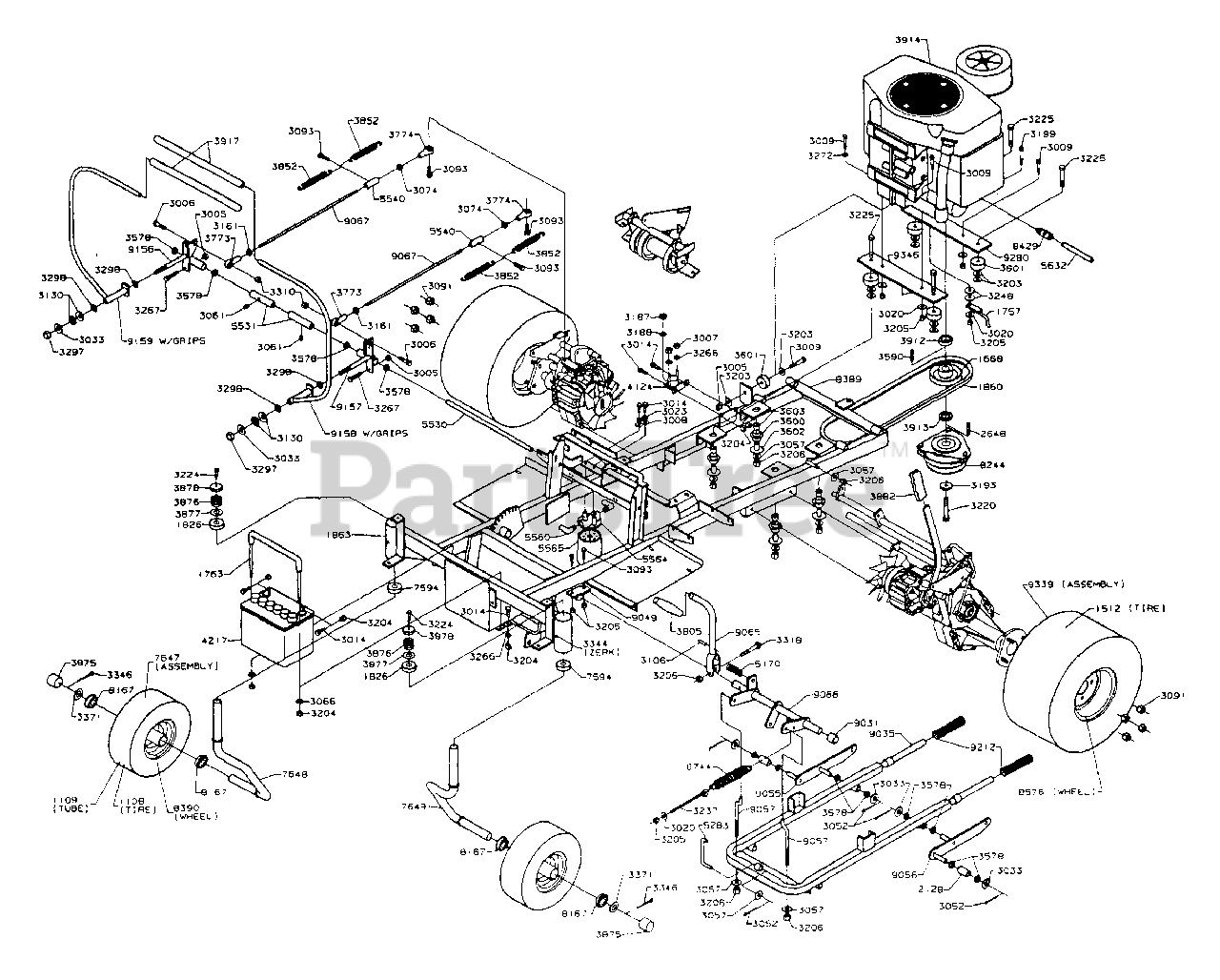

CHASSIS ASSEMBLY Parts Diagram

  • Title

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1512

1512

REAR TIRE

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1757

1757

ANCHOR WELDMENT

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

1860

1860

V-BELT

$

$

Not available

1863

1863

CASTER TUBE

$

$

Not available

2128

2128

SLEEVE 7/8 X 1-1/2

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3188

Dixon 3188

LOCKWASHER #10 EST TOOTH

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3199

3199

5/16-18X2-1/4HHB GR5

$

$

Not available

3203

3203

3/8 SAE FLAT WASHER

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3237

3237

EYE BOLT 5/16 X 6.00

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3272

3272

5/16 INT TOOTH LW

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3318

3318

3/8-16X2-1/4 HHB GR8

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3346

Dixon 3346

R/B 3391 1/8DIAX1-1/4 COT PIN

$

$

Not available

3371

3371

WASHER .76X1.25X.085

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

3600

3600

R/B 3599 REBOUND MOUNT

$

$

Not available

3601

3601

LOAD MOUNT

$

$

Not available

3602

3602

R/B 3599 SPACER TUBE

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3805

3805

R/B 3805 HANDLE GRIP

$

$

Not available

3852

3852

SPRING

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3912

3912

SPACER .50

$

$

Not available

3913

3913

SPACER .25

$

$

Not available

3914

Dixon 3914

PUCK, FRICTION

$

$

Not available

3917

Dixon 3917

BAR SLEEVE

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5283

5283

R/B 5101 LINK

$

$

Not available

5530

5530

PIVOT SHAFT

$

$

Not available

5531

5531

ADJUSTABLE BUSHING

$

$

Not available

5540

5540

CONTROL TUBE

$

$

Not available

5560

5560

MALE ELBOW

$

$

Not available

5564

5564

FILTER HEAD

$

$

Not available

5565

5565

R/B 7252 FILTER

$

$

Not available

5632

5632

3/8` HOSE - 5`

$

$

Not available

6744

6744

SPRING

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7647

7647

WHEEL & TIRE ASM

$

$

Not available

7648

7648

CASTER AXLE RH

$

$

Not available

7649

7649

CASTER AXLE LH

$

$

Not available

8167

8167

CASTER WHEEL BEARING

$

$

Not available

8244

8244

CLUTCH KIT

$

$

Not available

8389

8389

$

$

Not available

8390

8390

FRONT RIM

$

$

Not available

8429

8429

R/B 12237 OIL VALVE/HOSE ASM

$

$

Not available

8576

8576

REAR WHEEL (42` 50`)

$

$

Not available

9031

9031

LIFT TUBE

$

$

Not available

9035

9035

R/B 8814 LIFT FRAME WELDMENT

$

$

Not available

9049

9049

LIFT BUSHING WLDT

$

$

Not available

9055

9055

$

$

Not available

9056

9056

LIFT CAM DRILLED LH

$

$

Not available

9057

9057

FRONT LIFT ROD

$

$

Not available

9065

9065

R/B 9618 LIFT HANDLE WLDT

$

$

Not available

9066

9066

LIFT SHAFT WELDMENT

$

$

Not available

9067

9067

CONTROL ROD

$

$

Not available

9156

9156

RH SWIVEL PLT WLDT

$

$

Not available

9157

9157

LH SWIVEL PLT WLDT

$

$

Not available

9158

9158

R/B 9441 CONT LEVER W/GRIP LH

$

$

Not available

9159

9159

R/B 9441 CONT LEVER W/GRIP RH

$

$

Not available

9212

9212

SPRING(YELLOW ZINC CHROM

$

$

Not available

9280

9280

ENGINE PLATE WLDT

$

$

Not available

9339

9339

REAR TIRE

$

$

Not available

9346

9346

ENGINE PLATE WLDT

$

$

Not available
