ZTR 503 - Dixon Zero-Turn Mower (1991) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

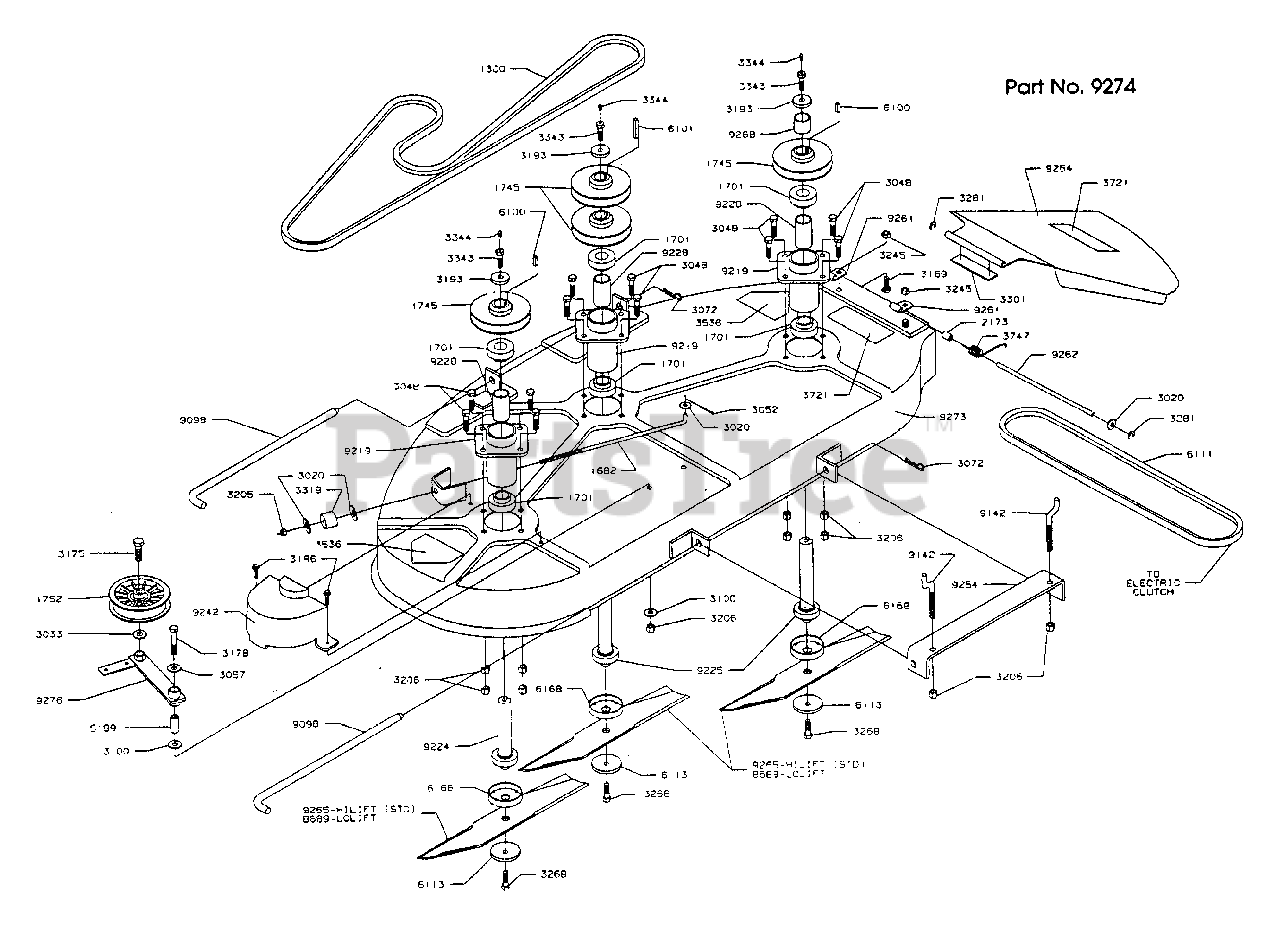

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1300

1300

BELT-MOWER DRIVE

$

$

Not available

1682

1682

L` ROD

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1745

1745

4-1/2` B PULLEY

$

$

Not available

1752

1752

R/B 1687 PLASTIC IDLER 4`FLAT

$

$

Not available

2173

2173

CONNECTING ARM TERM

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3175

3175

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3186

Dixon 3186

SCREW, TAP & DR #12-14 X 1

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3281

3281

RADIAL GRIPRING 5/16

$

$

Not available

3301

3301

FOAM PAD 1/8X1X4

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3343

3343

HUB BOLT-DRILLED

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3747

3747

DEFLECTOR SPRING

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

8689

Dixon 8689

BLD 50` STD LIFT

$

$

Not available

9098

9098

HANGER ROD

$

$

Not available

9142

9142

REAR LIFT ROD

$

$

Not available

9219

9219

HUB WLDT MACHINED

$

$

Not available

9224

9224

SHAFT WLDT 5.82

$

$

Not available

9225

9225

SHAFT WLDT 6.94

$

$

Not available

9228

9228

HUB SPACER 2.439

$

$

Not available

9242

9242

PULLEY GUARD

$

$

Not available

9254

9254

LIFT PLATE

$

$

Not available

9261

9261

DEFLECTOR TAB

$

$

Not available

9262

9262

$

$

Not available

9265

9265

R/B 9265 HI-LIFT BLADE

$

$

Not available

9268

9268

R/B 7983 SPACER 1.25ODX1.14

$

$

Not available

9273

9273

MOWER DECK WELDMENT

$

$

Not available

9274

9274

MOWER DECK ASSEMBLY

$

$

Not available

9276

9276

IDLER ARM WLDT

$

$

Not available
