ZTR 503 - Dixon Zero-Turn Mower (1991) FUEL & HYDRAULICS TANKS & FITTINGS ASSEMBLY Parts Diagram

Zero-Turn Mower

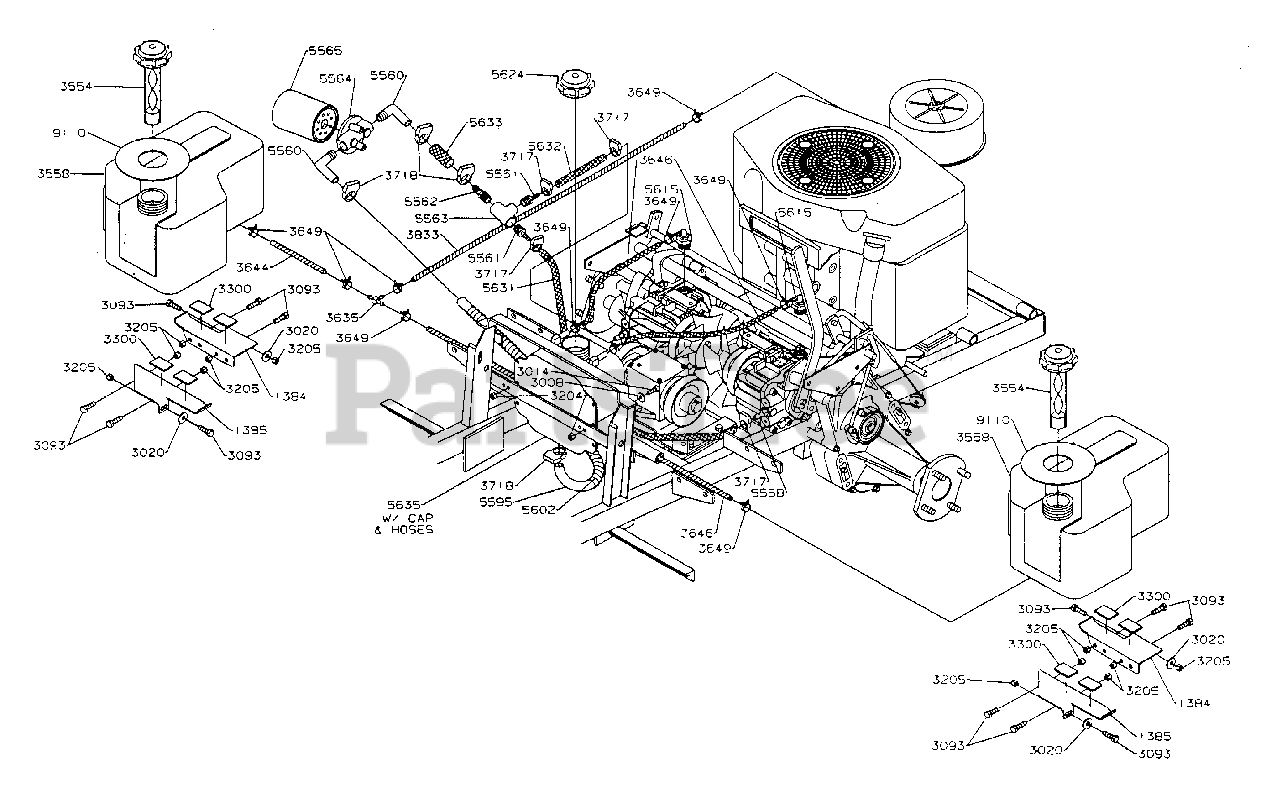

FUEL & HYDRAULICS TANKS & FITTINGS ASSEMBLY Parts Diagram

  • Title

1384

1384

TANK MT BRKT (SHORT)

$

$

Not available

1385

1385

TANK MT BRKT (LONG)

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3212

3212

5/8 FLAT WASH-NARROW

$

$

Not available

3218

3218

5/16-18X1/2 SQ HD SS

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3554

3554

FUEL GAUGE

$

$

Not available

3558

3558

2 GAL TANK W/CAP

$

$

Not available

3635

3635

FUEL LINE TEE

$

$

Not available

3644

Dixon 3644

HOSE 1/4 X 5.5

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3717

3717

CLAMP 3/8

$

$

Not available

3718

3718

5/8 CLAMP

$

$

Not available

3833

3833

HOSE 1/4 X 38

$

$

Not available

5558

5558

HOSE FITTING

$

$

Not available

5560

5560

MALE ELBOW

$

$

Not available

5561

5561

MALE ADAPTER

$

$

Not available

5562

Dixon 5562

MALE ADAPTER

$

$

Not available

5563

5563

TEE

$

$

Not available

5564

5564

FILTER HEAD

$

$

Not available

5565

5565

R/B 7252 FILTER

$

$

Not available

5595

5595

5/8 HOSE - 14`

$

$

Not available

5602

5602

HOSE GUARD SPRING

$

$

Not available

5615

5615

CONNECTOR/ELBOW ASM

$

$

Not available

5624

5624

R/B 5624 RESERVOIR CAP

$

$

Not available

5631

5631

3/8` HOSE - 21`

$

$

Not available

5632

5632

3/8` HOSE - 5`

$

$

Not available

5633

5633

R/B 13173 5/8` HOSE - 2`

$

$

Not available

5635

5635

RESERVOIR ASSEMBLY

$

$

Not available

9110

9110

TANK COVER

$

$

Not available
