ZTR 503 - Dixon Zero-Turn Mower (1991) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

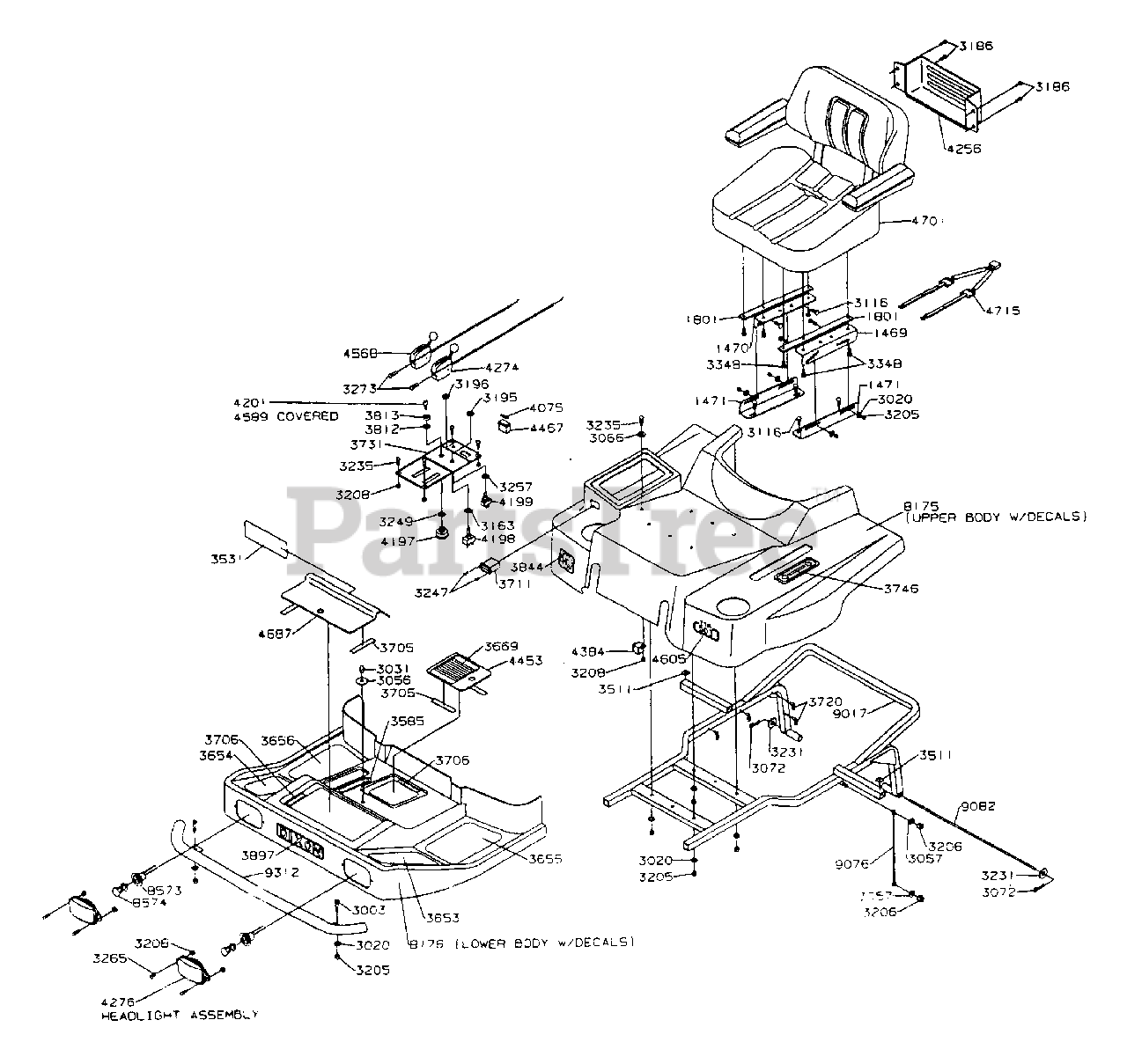

BODY ASSEMBLY Parts Diagram

  • Title

1469

1469

LH SLIDE ANGLE

$

$

Not available

1470

1470

RH SLIDE ANGLE

$

$

Not available

1471

1471

SEAT SLIDE

$

$

Not available

1801

1801

SEAT STRAP

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3186

Dixon 3186

SCREW, TAP & DR #12-14 X 1

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3196

3196

FACE NUT 7/16-28

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3247

3247

6-20 X 1/2 PHIL PAN D/T

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3348

3348

5/16-18X3/4 HWH TFS

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3653

Dixon 3653

FRONT FLOOR PAD L

$

$

Not available

3654

Dixon 3654

FRONT FLOOR PAD R

$

$

Not available

3655

3655

REAR FLOOR PAD L

$

$

Not available

3656

Dixon 3656

REAR FLOOR PAD R

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3705

3705

VELCRO STRIP(LOOP)

$

$

Not available

3706

Dixon 3706

VELCRO STRIP (HOOK)

$

$

Not available

3711

3711

R/B 3919 HOUR METER

$

$

Not available

3720

3720

TIE-WRAP

$

$

Not available

3731

3731

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3844

3844

DECAL, HYDRO-GEAR

$

$

Not available

3897

3897

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4199

4199

LIGHT SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4256

4256

UTILITY BOX

$

$

Not available

4274

4274

CHOKE CONTROL

$

$

Not available

4276

4276

HEADLIGHT

$

$

Not available

4384

4384

RELAY

$

$

Not available

4453

4453

ACCESS COVER

$

$

Not available

4467

4467

FUSE HOLDER

$

$

Not available

4568

4568

THROTTLE (40`)

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4605

4605

MODEL DECAL - 503

$

$

Not available

4687

Dixon 4687

BATTERY COVER ASM

$

$

Not available

4701

4701

MICHIGAN SEAT 50`

$

$

Not available

4715

4715

NLA SEAT SWITCH ASM

$

$

Not available

8175

8175

$

$

Not available

8176

8176

$

$

Not available

8573

8573

HEADLIGHT SOCKET ASM

$

$

Not available

8574

8574

R/B 8343 WHEEL HUB ASSY (42)`

$

$

Not available

9017

9017

$

$

Not available

9076

9076

CABLE

$

$

Not available

9082

9082

SEAT FRAME PIVOT ROD

$

$

Not available

9312

9312

BUMPER WELDMENT

$

$

Not available
