ZTR 503 - Dixon Zero-Turn Mower (1990) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

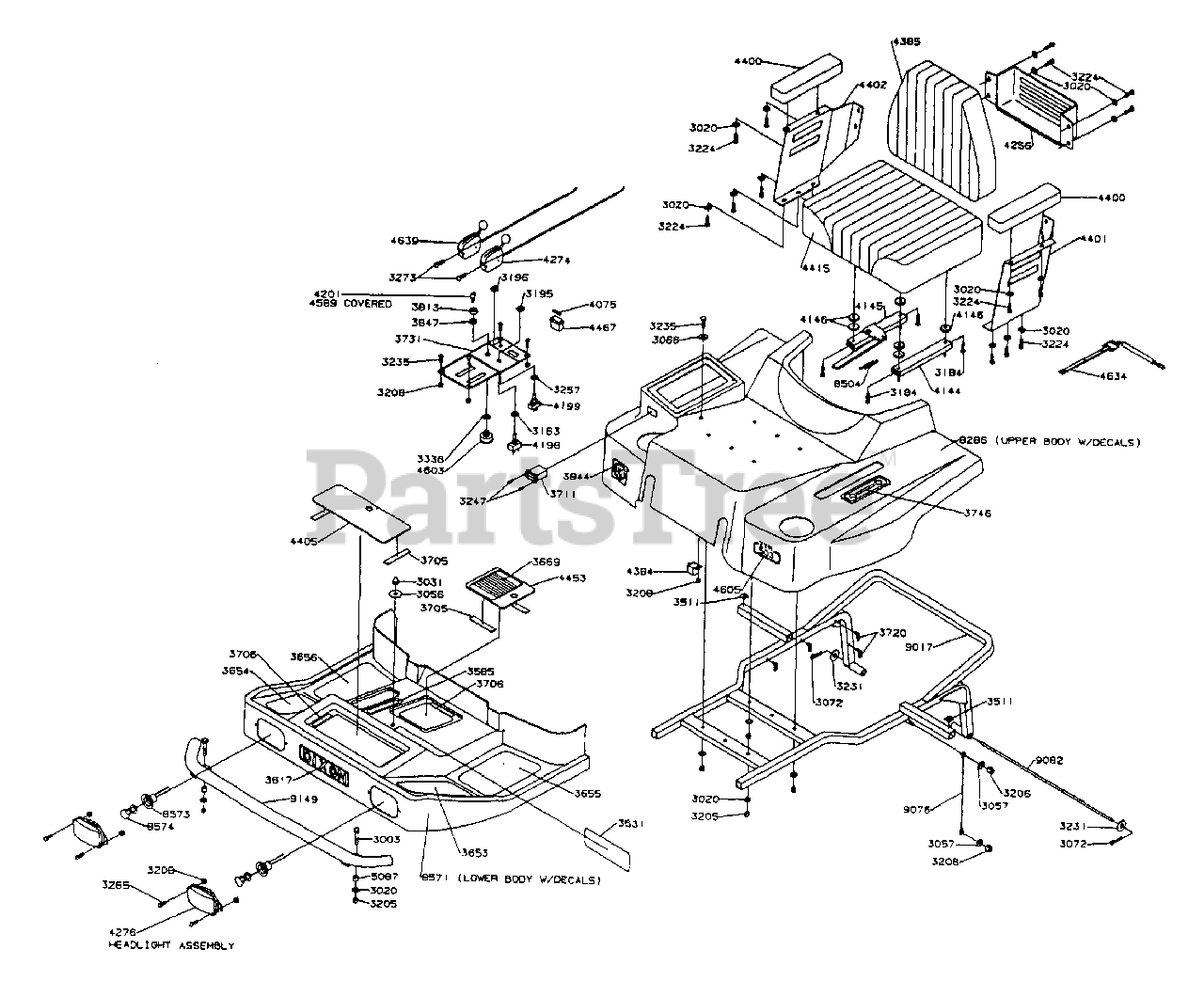

BODY ASSEMBLY Parts Diagram

  • Title

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3184

Dixon 3184

5/16-18X1-1/4PANHDPH

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3196

3196

FACE NUT 7/16-28

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3247

3247

6-20 X 1/2 PHIL PAN D/T

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3336

3336

9/16 INT. TOOTH L.W.

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3617

3617

R/B 3916 DECAL - DIXON

$

$

Not available

3653

Dixon 3653

FRONT FLOOR PAD L

$

$

Not available

3654

Dixon 3654

FRONT FLOOR PAD R

$

$

Not available

3655

3655

REAR FLOOR PAD L

$

$

Not available

3656

Dixon 3656

REAR FLOOR PAD R

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3705

3705

VELCRO STRIP(LOOP)

$

$

Not available

3706

Dixon 3706

VELCRO STRIP (HOOK)

$

$

Not available

3711

3711

R/B 3919 HOUR METER

$

$

Not available

3720

3720

TIE-WRAP

$

$

Not available

3731

3731

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3844

3844

DECAL, HYDRO-GEAR

$

$

Not available

3847

Dixon 3847

IGNITION NUT - 503

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4144

4144

R/B 7292 SLIDE W/O ADJUSTER

$

$

Not available

4145

4145

R/B 7292 SLIDE W/ADJUSTER

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4199

4199

LIGHT SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4256

4256

UTILITY BOX

$

$

Not available

4274

4274

CHOKE CONTROL

$

$

Not available

4276

4276

HEADLIGHT

$

$

Not available

4384

4384

RELAY

$

$

Not available

4385

4385

SEAT BACK

$

$

Not available

4400

4400

R/B 4400 ARM REST

$

$

Not available

4401

4401

ARM REST BRACKET LH

$

$

Not available

4402

4402

ARM REST BRACKET RH

$

$

Not available

4405

4405

BATTERY COVER ASSY

$

$

Not available

4415

4415

SEAT BOTTOM

$

$

Not available

4453

4453

ACCESS COVER

$

$

Not available

4467

4467

FUSE HOLDER

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4603

4603

KEY SWITCH

$

$

Not available

4605

4605

MODEL DECAL - 503

$

$

Not available

4634

4634

$

$

Not available

4639

4639

THROTTLE CABLE-503

$

$

Not available

5087

5087

SPACER 3/8X12

$

$

Not available

8286

8286

$

$

Not available

8504

8504

SEAT SLIDE SPRING

$

$

Not available

8571

8571

$

$

Not available

8573

8573

HEADLIGHT SOCKET ASM

$

$

Not available

8574

8574

R/B 8343 WHEEL HUB ASSY (42)`

$

$

Not available

9017

9017

$

$

Not available

9076

9076

CABLE

$

$

Not available

9082

9082

SEAT FRAME PIVOT ROD

$

$

Not available

9149

9149

$

$

Not available
