ZTR 5024 - Dixon Zero-Turn Mower (1998) BODY Parts Diagram

Zero-Turn Mower

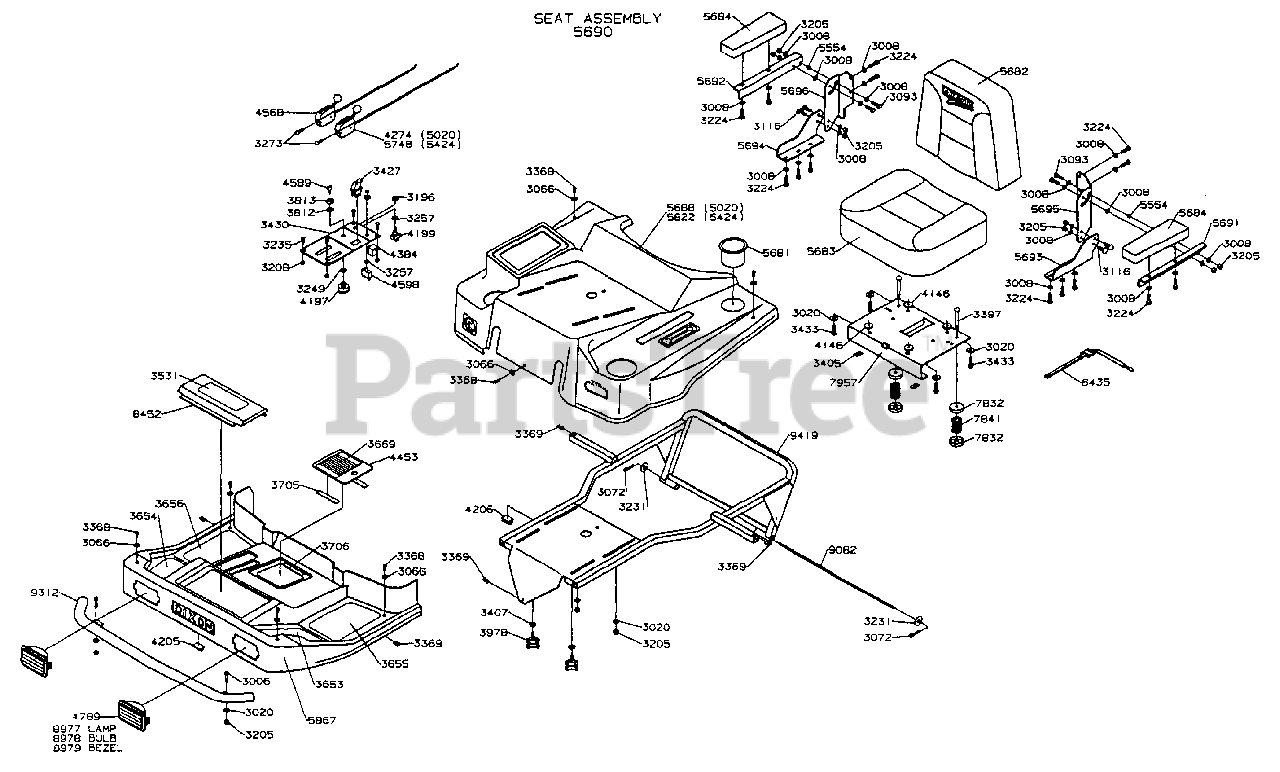

BODY Parts Diagram

  • Title

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3196

3196

FACE NUT 7/16-28

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3397

3397

5/16-18X3 CAR BOLT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3407

3407

WASHER 5/16` NINJA

$

$

Not available

3427

Dixon 3427

CLUTCH SWITCH

$

$

Not available

3430

Dixon 3430

CONTROL PANEL

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3653

Dixon 3653

FRONT FLOOR PAD L

$

$

Not available

3654

Dixon 3654

FRONT FLOOR PAD R

$

$

Not available

3655

3655

REAR FLOOR PAD L

$

$

Not available

3656

Dixon 3656

REAR FLOOR PAD R

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3705

3705

VELCRO STRIP(LOOP)

$

$

Not available

3706

Dixon 3706

VELCRO STRIP (HOOK)

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3978

3978

SEAT ADJUST KNOB

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4199

4199

LIGHT SWITCH

$

$

Not available

4205

Dixon 4205

BODY WIRE CLIP 1/4`

$

$

Not available

4206

4206

BODY WIRE CLIP 1/2`

$

$

Not available

4274

4274

CHOKE CONTROL

$

$

Not available

4384

4384

RELAY

$

$

Not available

4453

4453

ACCESS COVER

$

$

Not available

4568

4568

THROTTLE (40`)

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4789

4789

HEADLIGHT

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5681

5681

CUP HOLDER

$

$

Not available

5682

5682

R/B 1534 SEAT BACK - ESTATE

$

$

Not available

5683

5683

R/B 1537 SEAT BOTTOM

$

$

Not available

5684

5684

ARMREST

$

$

Not available

5688

5688

$

$

Not available

5690

5690

SEAT ASM - ESTATE

$

$

Not available

5691

5691

L.H. ARM REST BRACKET

$

$

Not available

5692

5692

R.H. ARM REST BRACKET

$

$

Not available

5693

5693

R/B 13124 L.H. SEAT BOTTOM BR

$

$

Not available

5694

5694

R/B 13125 R.H. SEAT BOTTOM BR

$

$

Not available

5695

5695

L.H. SEAT BACK BRKT

$

$

Not available

5696

5696

R.H. SEAT BACK BRKT

$

$

Not available

5748

5748

CHOKE CONTROL

$

$

Not available

5822

5822

5424 UPPER BODY

$

$

Not available

5867

5867

LOW BODY ASM-ESTATE

$

$

Not available

6435

6435

SEAT SWITCH ASSEMBLY

$

$

Not available

7832

7832

SPRING CUP

$

$

Not available

7841

7841

SEAT SPRING

$

$

Not available

7957

7957

SPRING SEAT PLATE

$

$

Not available

8452

8452

R/B 4687 42/50 BATTERY COVER

$

$

Not available

8977

8977

HEADLIGHT LAMP

$

$

Not available

8978

8978

HEADLIGHT BULB

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

9082

9082

SEAT FRAME PIVOT ROD

$

$

Not available

9312

9312

BUMPER WELDMENT

$

$

Not available

9419

9419

SEAT FRAME WLDT

$

$

Not available
