ZTR 502 - Dixon Zero-Turn Mower (1991) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

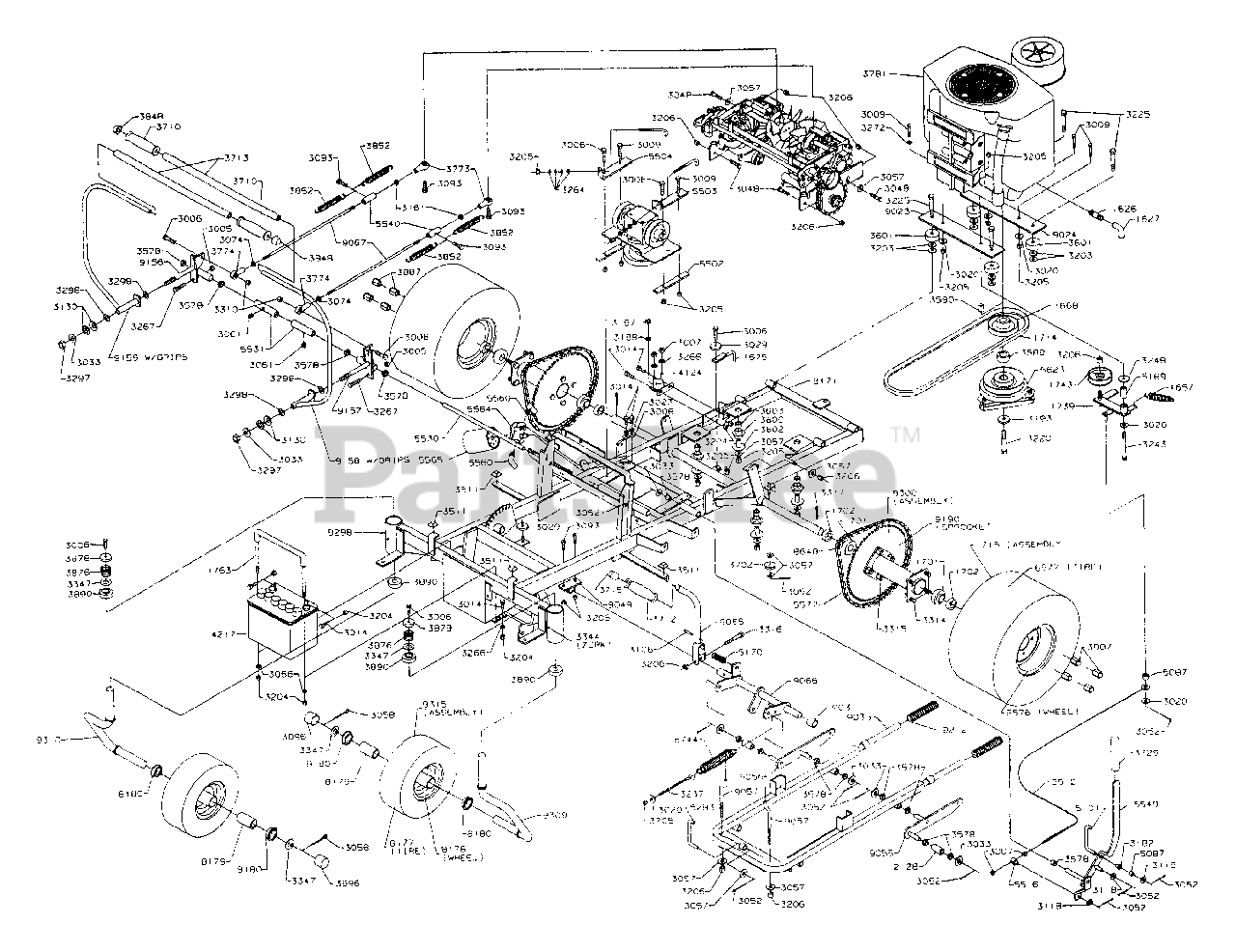

CHASSIS ASSEMBLY Parts Diagram

  • Title

1626

Dixon 1626

3/8X2 GALV PIPE NIPP

$

$

Not available

1627

1627

R/B 12237 3/8 GALV PIPE ELL

$

$

Not available

1657

1657

SPRING

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1675

1675

ANCHOR

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1714

1714

DRIVE BELT

$

$

Not available

1715

1715

REAR WHEEL & TIRE

$

$

Not available

1739

1739

IDLER WELDMENT

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

2128

2128

SLEEVE 7/8 X 1-1/2

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3049

3049

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3058

Dixon 3058

COTTER PIN 1/8 X 2

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3188

Dixon 3188

LOCKWASHER #10 EST TOOTH

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3203

3203

3/8 SAE FLAT WASHER

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3237

3237

EYE BOLT 5/16 X 6.00

$

$

Not available

3243

3243

5/16-18X3-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3264

3264

5/16 DISC SPRING HD

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3272

3272

5/16 INT TOOTH LW

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3314

3314

1/2-20 LUGBOLT G5

$

$

Not available

3315

3315

1/2-20 HEX NUT W/NY

$

$

Not available

3317

3317

HAMMERLOCK COTTER

$

$

Not available

3318

3318

3/8-16X2-1/4 HHB GR8

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3347

3347

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3373

3373

R/B 3373 #6-32UNCX1/2`RD HEAD

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3589

Dixon 3589

CLUTCH SPACER

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

3600

3600

R/B 3599 REBOUND MOUNT

$

$

Not available

3601

3601

LOAD MOUNT

$

$

Not available

3602

3602

R/B 3599 SPACER TUBE

$

$

Not available

3603

3603

R/B 3599 ISO INSERT

$

$

Not available

3702

3702

PULLEY

$

$

Not available

3710

Dixon 3710

BAR SLEEVE

$

$

Not available

3712

Dixon 3712

R/B 3805 HANDLE GRIP

$

$

Not available

3713

Dixon 3713

R/B 3917 FOAM TUBE

$

$

Not available

3715

Dixon 3715

END CAP

$

$

Not available

3729

3729

BAR SLEEVE

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3781

Dixon 3781

GEAR, MITER, 15 TEETH

$

$

Not available

3848

3848

CAP NUT

$

$

Not available

3852

3852

SPRING

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3878

3878

$

$

Not available

3887

Dixon 3887

R/B 3091 CHROME LUG NUT

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3896

3896

HUB COVER

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

5087

5087

SPACER 3/8X12

$

$

Not available

5101

5101

BRAKE LINK

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5283

5283

R/B 5101 LINK

$

$

Not available

5502

5502

MOUNT SHIM

$

$

Not available

5503

5503

LH `T` BOX GUIDE

$

$

Not available

5504

5504

RH `T` BOX GUIDE

$

$

Not available

5515

5515

IDLER CABLE

$

$

Not available

5516

5516

SWIVEL

$

$

Not available

5530

5530

PIVOT SHAFT

$

$

Not available

5531

5531

ADJUSTABLE BUSHING

$

$

Not available

5540

5540

CONTROL TUBE

$

$

Not available

5549

5549

BRAKE HANDLE WLDT

$

$

Not available

5560

5560

MALE ELBOW

$

$

Not available

5564

5564

FILTER HEAD

$

$

Not available

5565

5565

R/B 7252 FILTER

$

$

Not available

5577

5577

CHAIN 40RC 76P

$

$

Not available

5623

5623

ELEC CLUTCH

$

$

Not available

6744

6744

SPRING

$

$

Not available

8171

8171

$

$

Not available

8177

8177

CASTER TIRE - 50`

$

$

Not available

8178

8178

CASTER RIM - 50`

$

$

Not available

8179

8179

CASTER BEARING

$

$

Not available

8180

8180

BEARING RETAINER 50`

$

$

Not available

8576

8576

REAR WHEEL (42` 50`)

$

$

Not available

8577

8577

REAR TIRE

$

$

Not available

8648

8648

CONNECTING LINK

$

$

Not available

9023

9023

ENGINE PLATE

$

$

Not available

9024

9024

R/B 9023 ENGINE PLATE REAR

$

$

Not available

9031

9031

LIFT TUBE

$

$

Not available

9035

9035

R/B 8814 LIFT FRAME WELDMENT

$

$

Not available

9049

9049

LIFT BUSHING WLDT

$

$

Not available

9055

9055

$

$

Not available

9056

9056

LIFT CAM DRILLED LH

$

$

Not available

9057

9057

FRONT LIFT ROD

$

$

Not available

9065

9065

R/B 9618 LIFT HANDLE WLDT

$

$

Not available

9066

9066

LIFT SHAFT WELDMENT

$

$

Not available

9067

9067

CONTROL ROD

$

$

Not available

9156

9156

RH SWIVEL PLT WLDT

$

$

Not available

9157

9157

LH SWIVEL PLT WLDT

$

$

Not available

9158

9158

R/B 9441 CONT LEVER W/GRIP LH

$

$

Not available

9159

9159

R/B 9441 CONT LEVER W/GRIP RH

$

$

Not available

9190

9190

SPROCKET ASM - 1735

$

$

Not available

9212

9212

SPRING(YELLOW ZINC CHROM

$

$

Not available

9298

9298

CASTER TUBE ASM

$

$

Not available

9300

9300

R/B 9300 WHEEL HUB ASSY (501)

$

$

Not available

9309

9309

LH CASTER AXLE KIT

$

$

Not available

9310

9310

RH CASTER AXLE KIT

$

$

Not available

9315

9315

CASTER WHEEL & TIRE

$

$

Not available
