ZTR 502 - Dixon Zero-Turn Mower (1990) WIRING ASSEMBLY Parts Diagram

Zero-Turn Mower

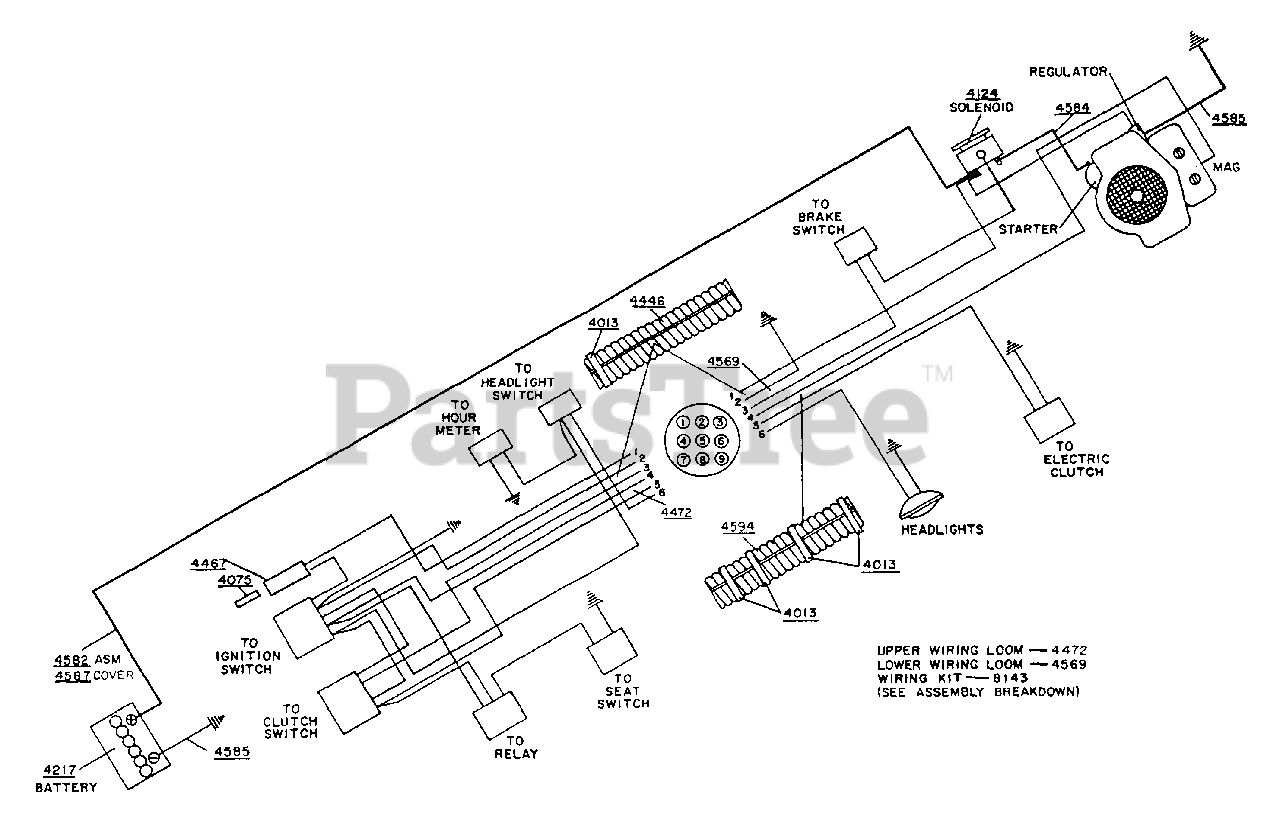

WIRING ASSEMBLY Parts Diagram

  • Title
4013

4013

NYLON WIRE TIE

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4446

4446

R/B 4446 COVER - FLEX GARD

$

$

Not available

4467

4467

FUSE HOLDER

$

$

Not available

4472

4472

UPPER WIRING LOOM

$

$

Not available

4569

4569

LOWER WIRING LOOM

$

$

Not available

4582

4582

R/B 4583 BATTERY CABLE ASM 50

$

$

Not available

4584

4584

SOLE/START CABLE

$

$

Not available

4585

4585

BATTERY GROUND CABLE

$

$

Not available

4587

4587

WIRE COVER 61`

$

$

Not available

4594

4594

R/B 4594 WIRING COVER 14`

$

$

Not available

8143

8143

WIRING KIT 502

$

$

Not available
