ZTR 501 - Dixon Zero-Turn Mower (1988) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

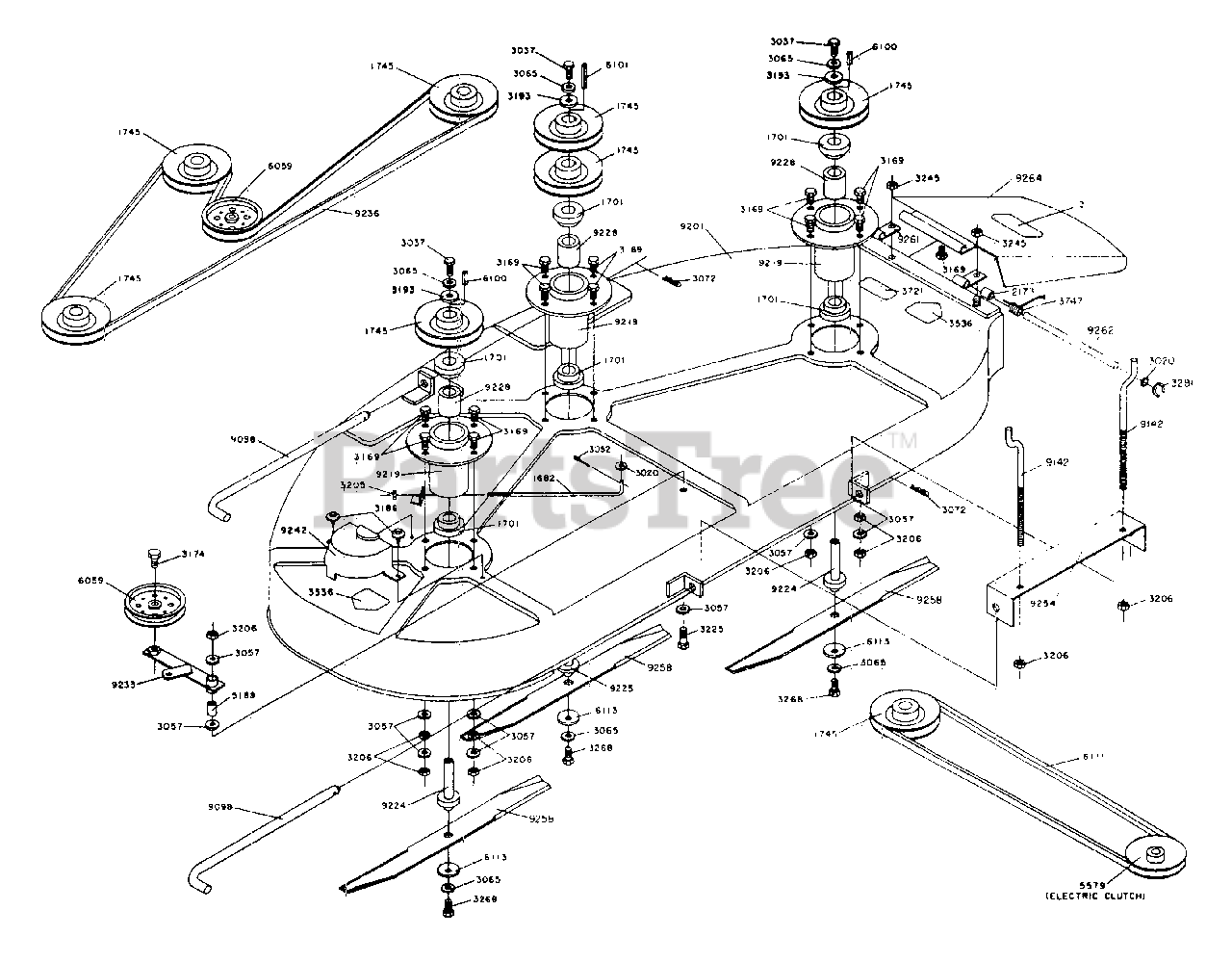

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1682

1682

L` ROD

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1745

1745

4-1/2` B PULLEY

$

$

Not available

2173

2173

CONNECTING ARM TERM

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3072

3072

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3174

3174

1/2-13 X 1` HHB

$

$

Not available

3186

Dixon 3186

SCREW, TAP & DR #12-14 X 1

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3281

3281

RADIAL GRIPRING 5/16

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3747

3747

DEFLECTOR SPRING

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5579

5579

R/B 8404 CLUTCH/ELEC. WARNER

$

$

Not available

6059

6059

FLAT IDLER PULLEY

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

9098

9098

HANGER ROD

$

$

Not available

9142

9142

REAR LIFT ROD

$

$

Not available

9201

9201

MOWER DECK WLDT 50`

$

$

Not available

9219

9219

HUB WLDT MACHINED

$

$

Not available

9224

9224

SHAFT WLDT 5.82

$

$

Not available

9225

9225

SHAFT WLDT 6.94

$

$

Not available

9228

9228

HUB SPACER 2.439

$

$

Not available

9233

9233

IDLER ARM WLDT

$

$

Not available

9236

9236

SERP BELT B-90

$

$

Not available

9242

9242

PULLEY GUARD

$

$

Not available

9254

9254

LIFT PLATE

$

$

Not available

9258

9258

R/B 9265 HI-LIFT BLADE

$

$

Not available

9261

9261

DEFLECTOR TAB

$

$

Not available

9262

9262

$

$

Not available

9264

9264

R/B 9264 DEFLECTOR ASSEMBLY

$

$

Not available
