ZTR 501 - Dixon Zero-Turn Mower (1988) FUEL & HYDRAULIC TANK & FITTINGS Parts Diagram

Zero-Turn Mower

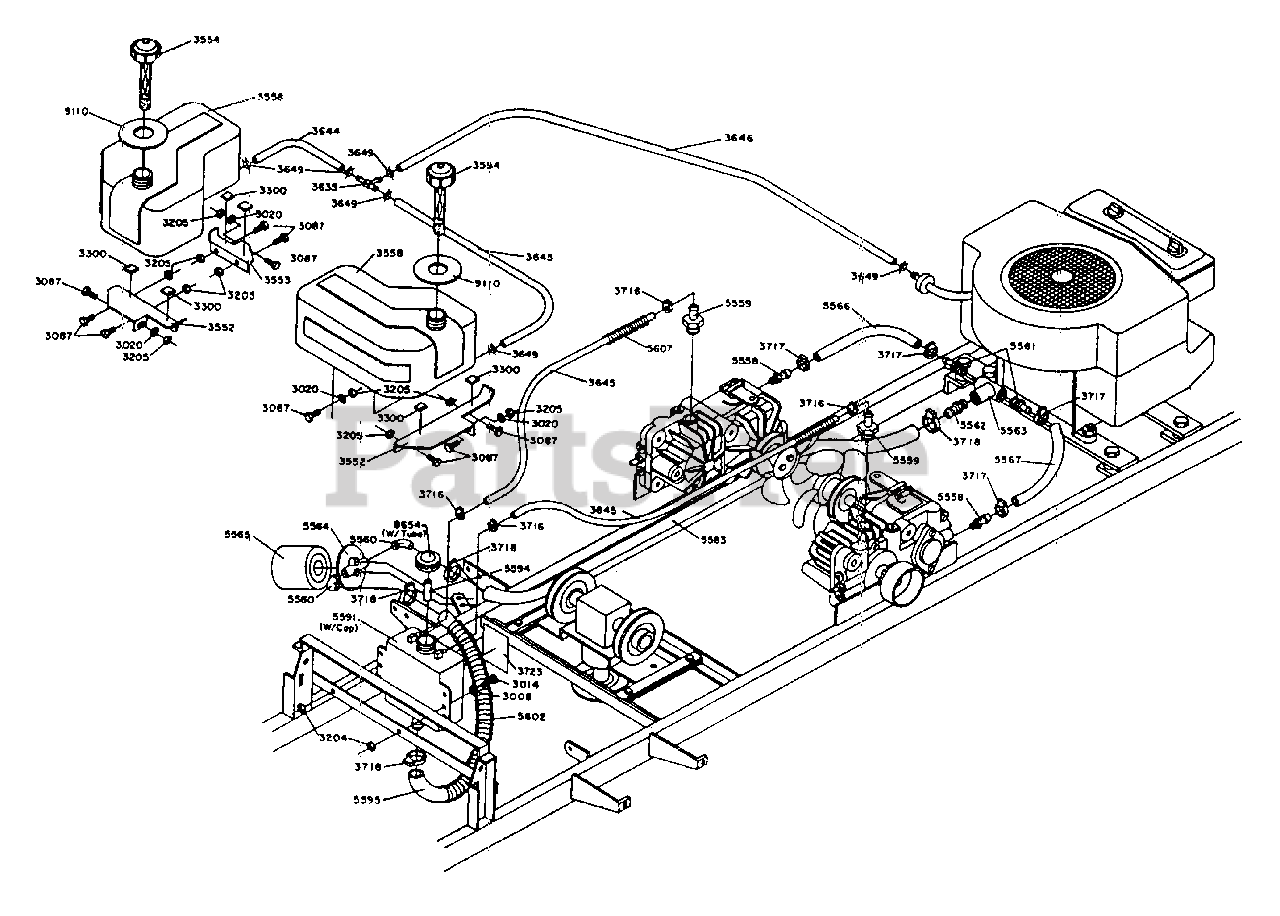

FUEL & HYDRAULIC TANK & FITTINGS Parts Diagram

  • Title
3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3552

3552

R/B 1385 TANK MOUNT BRKT LONG

$

$

Not available

3553

3553

R/B 1384 TANK MOUNT BRKTSHORT

$

$

Not available

3554

3554

FUEL GAUGE

$

$

Not available

3556

3556

TANK SUPPORT-LH

$

$

Not available

3558

3558

2 GAL TANK W/CAP

$

$

Not available

3635

3635

FUEL LINE TEE

$

$

Not available

3644

Dixon 3644

HOSE 1/4 X 5.5

$

$

Not available

3645

Dixon 3645

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3716

3716

R/B 3649 1/4` CLAMP

$

$

Not available

3717

3717

CLAMP 3/8

$

$

Not available

3718

3718

5/8 CLAMP

$

$

Not available

3723

Dixon 3723

RESERVOIR DECAL

$

$

Not available

5558

5558

HOSE FITTING

$

$

Not available

5559

5559

HOSE FITTING

$

$

Not available

5560

5560

MALE ELBOW

$

$

Not available

5561

5561

MALE ADAPTER

$

$

Not available

5562

Dixon 5562

MALE ADAPTER

$

$

Not available

5563

5563

TEE

$

$

Not available

5564

5564

FILTER HEAD

$

$

Not available

5565

5565

R/B 7252 FILTER

$

$

Not available

5566

5566

3/8` HOSE - 8`

$

$

Not available

5567

5567

3/8` HOSE - 14`

$

$

Not available

5583

5583

NLA 5/8` HOSE - 19`

$

$

Not available

5591

5591

RESERVOIR ASSEMBLY

$

$

Not available

5594

5594

$

$

Not available

5595

5595

5/8 HOSE - 14`

$

$

Not available

5602

5602

HOSE GUARD SPRING

$

$

Not available

5607

5607

HOSE GUARD SPRING

$

$

Not available

8654

8654

R/B 5624 RESERVOIR CAP ASSY

$

$

Not available

9110

9110

TANK COVER

$

$

Not available
