ZTR 5005 - Dixon Zero-Turn Mower (2003) WIRING Parts Diagram

Zero-Turn Mower

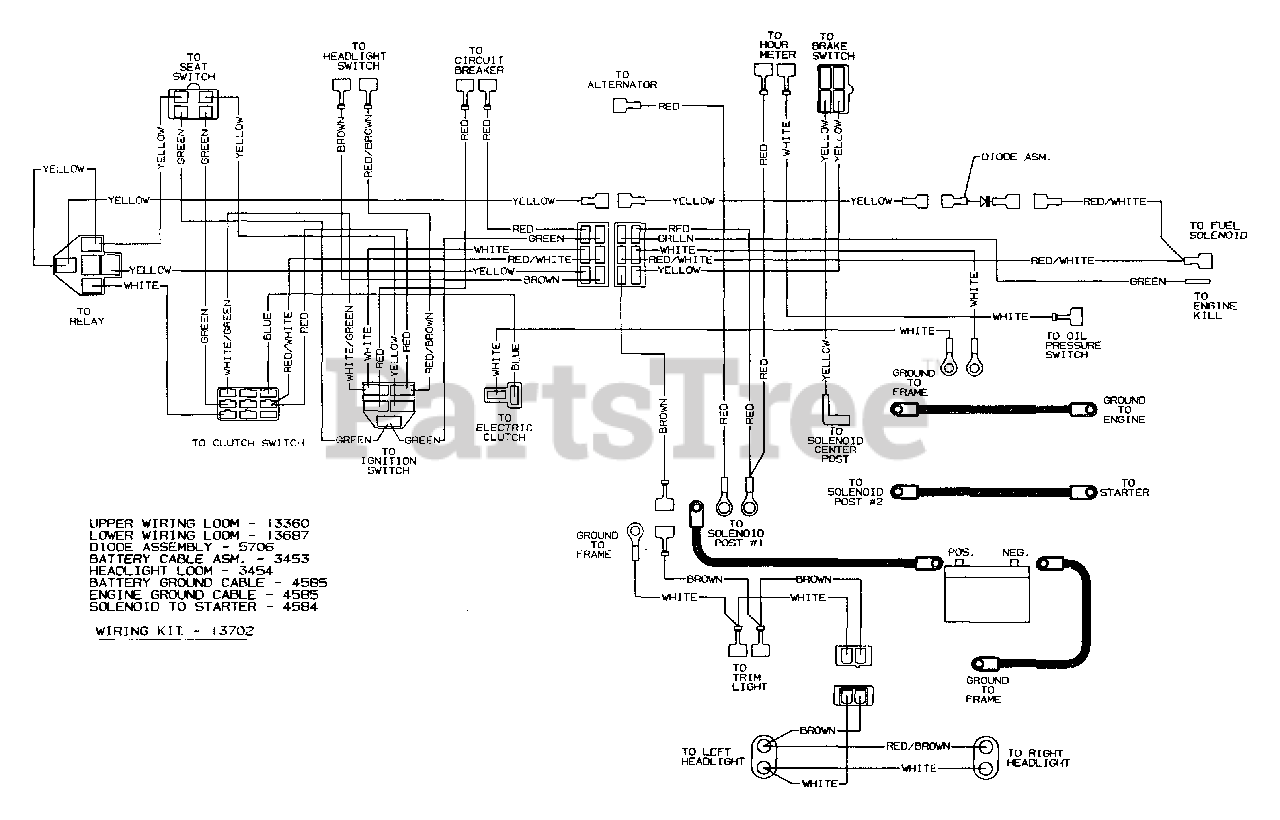

WIRING Parts Diagram

  • Title
3453

3453

BAT. CABLE ASM.

$

$

Not available

3454

3454

HEADLIGHT LOOM

$

$

Not available

4584

4584

SOLE/START CABLE

$

$

Not available

4585

4585

BATTERY GROUND CABLE

$

$

Not available

5706

5706

DIODE ASSEMBLY

$

$

Not available

13360

13360

WIRE LOOM UPPER

$

$

Not available

13687

13687

LOWER WIRING LOOM

$

$

Not available

13702

13702

5004/5005 WIRING KIT

$

$

Not available
