ZTR 5005 - Dixon Zero-Turn Mower (2003) MOWER DECK 50" Parts Diagram

Zero-Turn Mower

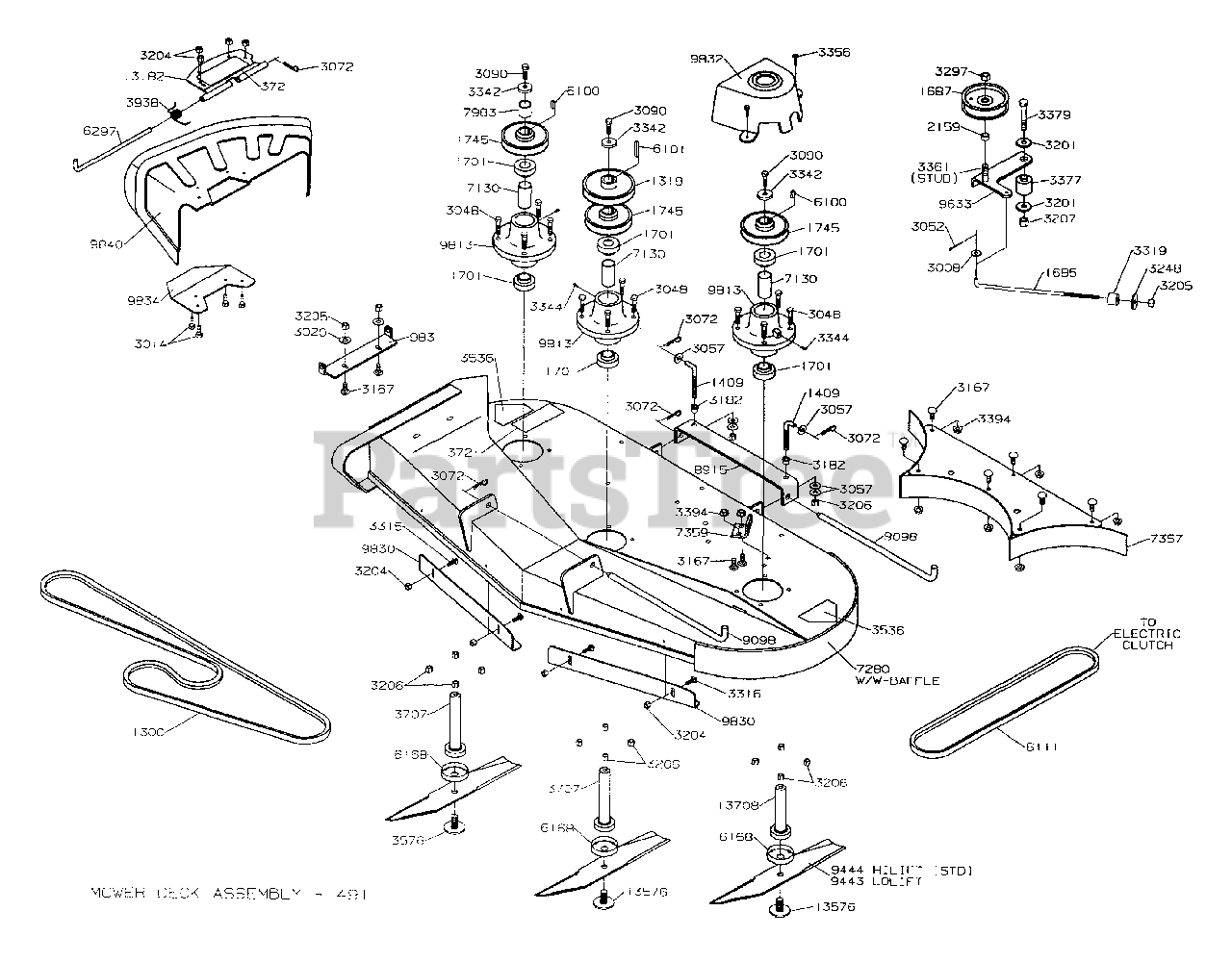

MOWER DECK 50" Parts Diagram

  • Title

491

491

$

$

Not available

1300

1300

BELT-MOWER DRIVE

$

$

Not available

1319

Dixon 1319

PULLEY 5` B-PULLEY

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1685

1685

L-ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1745

1745

4-1/2` B PULLEY

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3201

3201

WASHER-.533IDX1.37OD

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3377

3377

SERP. IDLER SPACER

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

7130

7130

HUB SPACER

$

$

Not available

7280

7280

DECK W/BAFFLE 50"

$

$

Not available

7357

7357

W-BAFFLE WLDT.

$

$

Not available

7359

7359

ROD MOUNT

$

$

Not available

7983

7983

SPACER

$

$

Not available

8915

8915

LIFT PLATE ASM

$

$

Not available

9098

9098

HANGER ROD

$

$

Not available

9443

9443

BLD 50` STD. LIFT

$

$

Not available

9444

9444

HI-LIFT BLADE 50`

$

$

Not available

9633

9633

SERP IDLER ASM

$

$

Not available

9813

9813

DECK HUB W/ZERK

$

$

Not available

9830

9830

BLOW-BY BAFFLE

$

$

Not available

9831

9831

HINGE

$

$

Not available

9832

9832

PULLEY GUARD

$

$

Not available

9834

9834

DEFLECTOR BRACKET

$

$

Not available

9840

9840

DEFLECTOR

$

$

Not available

13182

13182

DEFLECTOR MT BRKT

$

$

Not available

13576

13576

BLADE BOLT

$

$

Not available

13707

13707

SHAFT 50 L

$

$

Not available

13708

13708

SHAFT 50 S

$

$
