ZTR 4516K - Dixon Zero-Turn Mower (2001) WIRING Parts Diagram

Zero-Turn Mower

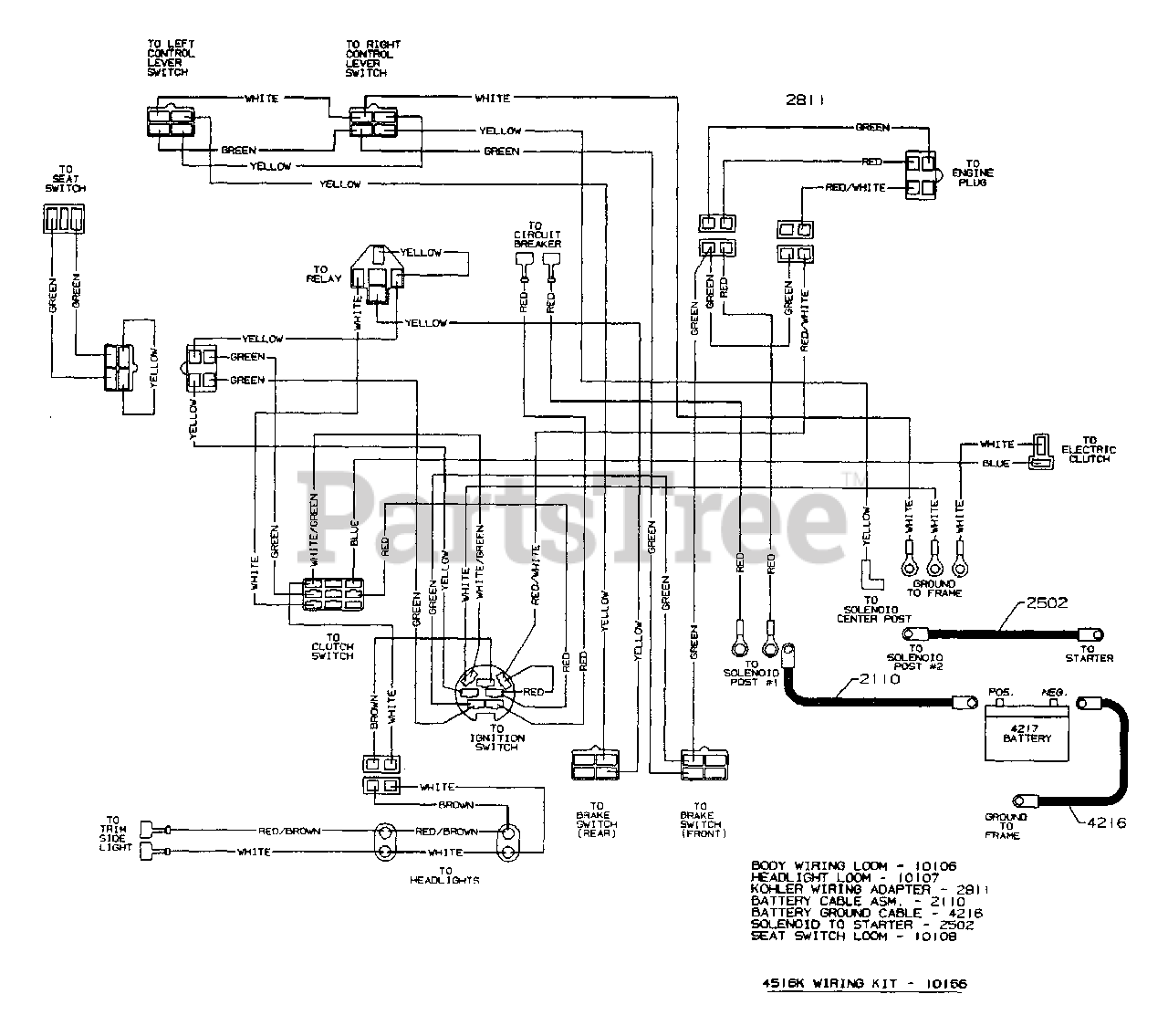

WIRING Parts Diagram

  • Title
2110

2110

BATTERY CABLE ASSY

$

$

Not available

2502

2502

SOL. TO STARTER CABLE

$

$

Not available

2811

2811

ADAPTER LOOM

$

$

Not available

4216

Dixon 4216

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

10106

10106

BODY WIRE LOOM 4500

$

$

Not available

10107

10107

HEADLIGHT LOOM

$

$

Not available

10108

10108

SEAT SWITCH LOOM

$

$

Not available

10166

10166

NLA 516K WIRING KIT

$

$

Not available
