ZTR 4516K - Dixon Zero-Turn Mower (2001) CHASSIS Parts Diagram

Zero-Turn Mower

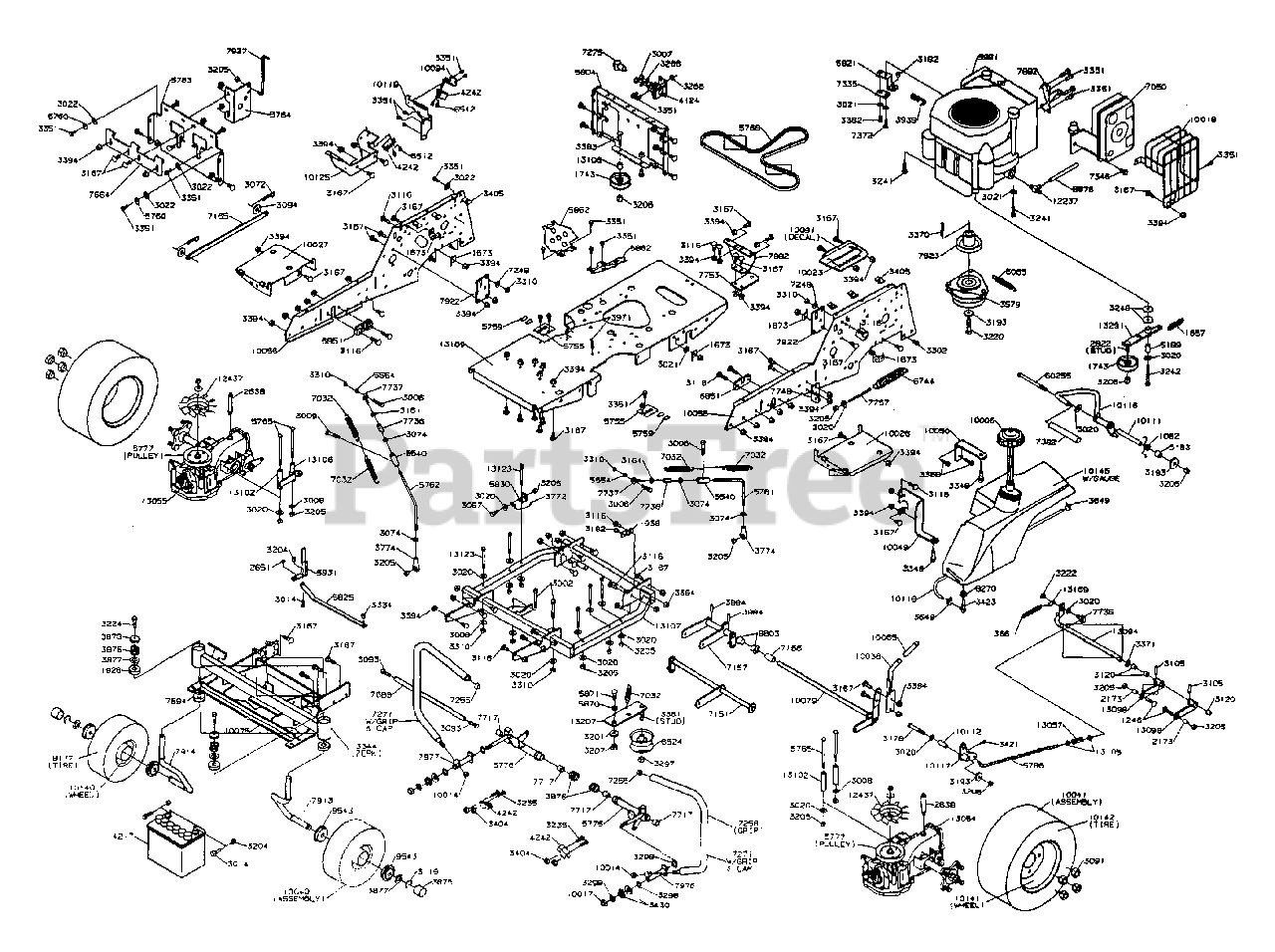

CHASSIS Parts Diagram

  • Title

1082

Dixon 1082

SPRING

$

$

Not available

1246

1246

5/16-18 X 1-1/4 CAR BLT

$

$

Not available

1657

1657

SPRING

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

1938

1938

ANCHOR BRACKET

$

$

Not available

2173

2173

CONNECTING ARM TERM

$

$

Not available

2638

2638

BREATHER CAP ASM

$

$

Not available

2651

2651

RETAINING RING(44870)

$

$

Not available

2822

2822

IDLER STUD

$

$

Not available

3002

3002

5/16-18X2-1/2HHB GR8

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3105

3105

R/B 3105 14X1-1/4 HD SPIR PIN

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3120

3120

NYLON SHLDR BUSHING

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3201

3201

WASHER-.533IDX1.37OD

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3222

3222

R/B 3222 5/16-24 UNF H LK NUT

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3241

3241

M8X1.25X25 HHB GR8.8

$

$

Not available

3242

Dixon 3242

M8X1.25X70 GR8.8

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3302

3302

5/16-18X1/2 WHTF SCR

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3348

3348

5/16-18X3/4 HWH TFS

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3362

3362

5/16-18X3/4 HWH TFS

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3370

3370

1/4" SQ KEY X 2.5

$

$

Not available

3371

3371

WASHER .76X1.25X.085

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3404

Dixon 3404

10-24 HEX FLANGE NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3423

3423

ELBOW W/FILTER

$

$

Not available

3430

Dixon 3430

CONTROL PANEL

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3661

3661

MUFFLER SPRING

$

$

Not available

3772

Dixon 3772

BY-PASS KEEPER

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3939

3939

CLUTCH ANCHOR

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

3984

3984

DRIVE PIN 5/16X1-1/2

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5183

Dixon 5183

SPACER

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5540

5540

CONTROL TUBE

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5755

5755

GUIDE

$

$

Not available

5759

5759

CLIP - 1-3/16`

$

$

Not available

5760

5760

LEVER STOP

$

$

Not available

5761

5761

ROD-LH

$

$

Not available

5762

5762

ROD-RH

$

$

Not available

5763

5763

SEAT SUPPORT FRONT

$

$

Not available

5764

5764

CONTROL TUBE SUPPORT

$

$

Not available

5765

5765

5/16-18X5-3/4 CAR. BOLT

$

$

Not available

5768

5768

BELT HYDRO DRIVE

$

$

Not available

5775

5775

CONTROL TUBE WLDT-LH

$

$

Not available

5776

5776

CONTROL TUBE WLDT-RH

$

$

Not available

5777

5777

HYDRO PULLEY

$

$

Not available

5786

5786

BRAKE CONTROL

$

$

Not available

5804

5804

SUPPORT PLATE

$

$

Not available

5821

5821

ANCHOR BRACKET

$

$

Not available

5825

5825

LINK BY-PASS

$

$

Not available

5830

5830

TAB

$

$

Not available

5831

5831

LEVER BY-PASS

$

$

Not available

5862

5862

FAN GUARD

$

$

Not available

5870

5870

SPACER

$

$

Not available

5871

5871

1/2-13X1-1/2 CAR.BLT GR5

$

$

Not available

5981

5981

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6512

6512

#10-32X1/2` HHTRS

$

$

Not available

6524

6524

IDLER PULLEY

$

$

Not available

6744

6744

SPRING

$

$

Not available

6851

6851

SADDLE SHAFT (2) HOLE

$

$

Not available

7032

7032

SPRING - 3.50

$

$

Not available

7050

7050

MUFFLER KOHLER

$

$

Not available

7151

7151

DECK SHAFT WLDT.

$

$

Not available

7157

7157

$

$

Not available

7165

7165

TIE BAR

$

$

Not available

7166

7166

SPACER

$

$

Not available

7248

7248

LEVER STOP

$

$

Not available

7255

7255

CAP

$

$

Not available

7256

7256

SLEEVE

$

$

Not available

7271

7271

CONTROL LEVER ASM.

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

7335

7335

GROUND PLATE

$

$

Not available

7346

7346

M5X.8X16 HEX FLANGE SCRW

$

$

Not available

7372

7372

M8X1.25X30MM HHB

$

$

Not available

7382

7382

BAR SLEEVE

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7664

7664

SEAT PLATE HINGE

$

$

Not available

7689

7689

CONTROL LEVER SHAFT

$

$

Not available

7717

7717

BUSHING-CONTROL TUBE

$

$

Not available

7735

7735

ROD END - RH

$

$

Not available

7736

7736

ROD END COUPLER

$

$

Not available

7737

7737

ROD END LH

$

$

Not available

7748

7748

SPRING ANCHOR

$

$

Not available

7753

7753

HITCH

$

$

Not available

7757

7757

BRAKE ROD

$

$

Not available

7823

7823

ENGINE PULLEY

$

$

Not available

7882

7882

BRACKET MUFFLER MT.

$

$

Not available

7913

7913

CASTER AXLE WLDT LH

$

$

Not available

7914

7914

CASTER AXLE WLDT RH

$

$

Not available

7922

7922

BRACKET CONT. TUBE

$

$

Not available

7927

7927

ROD

$

$

Not available

7976

7976

WLDT CONT. LEVER LH

$

$

Not available

7977

7977

WLDT CONT. LEVER RH

$

$

Not available

7982

7982

BRACKET-HITCH

$

$

Not available

8177

8177

CASTER TIRE - 50`

$

$

Not available

8270

8270

TANK FITTING

$

$

Not available

8876

8876

OIL DRAIN HOSE 8`

$

$

Not available

9543

9543

CASTER WHEEL BEARING

$

$

Not available

9803

9803

BUSHING

$

$

Not available

10006

10006

FUEL CAP 4000Z DIXON 10006

$

$

Not available

10014

Dixon 10014

1/2-13HEX NUT W/NYL

$

$

Not available

10017

10017

NUT, HEX 1/2-13 THIN W/NY

$

$

Not available

10018

10018

MUFFLER GUARD 4516K

$

$

Not available

10023

10023

DECK LIFT QUADRANT

$

$

Not available

10026

10026

SUPPORT LOWER BODY LH

$

$

Not available

10027

10027

SUPPORT LOWER BODY RH

$

$

Not available

10036

10036

HANDLE DECK LIFT

$

$

Not available

10040

10040

CASTER WHEEL & TIRE

$

$

Not available

10041

10041

REAR WHEEL & TIRE

$

$

Not available

10049

10049

TANK MT. BRKT.FRT.

$

$

Not available

10050

10050

TANK MT.BRKT.REAR

$

$

Not available

10055

10055

SIDE FRAME LH IZT

$

$

Not available

10056

10056

SIDE FRAME RH IZT

$

$

Not available

10065

10065

GRIP

$

$

Not available

10075

10075

FRONT FRAME WLDT.

$

$

Not available

10079

10079

LIFT SHAFT WLDT.

$

$

Not available

10091

10091

DECAL, CUT HEIGHT

$

$

Not available

10094

10094

SWITCH MOUNT

$

$

Not available

10111

10111

BUSHING

$

$

Not available

10112

10112

BUSHING

$

$

Not available

10116

10116

BRAKE HANDLE WLDT.

$

$

Not available

10117

10117

ARM WELDMENT

$

$

Not available

10118

10118

FUEL LINE 40`

$

$

Not available

10119

10119

FENDER SUPPORT WLDT. RH

$

$

Not available

10125

10125

CONTROL PANEL MT.BRKT.

$

$

Not available

10140

10140

CASTER WHEEL

$

$

Not available

10141

10141

REAR WHEEL-BLACK

$

$

Not available

10142

10142

REAR TIRE

$

$

Not available

10145

10145

FUEL TANK W/GAUGE

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12437

12437

HUB/FAN KIT

$

$

Not available

13054

13054

IZT LH ((318-2400L)

$

$

Not available

13055

13055

IZT-RH (318-2400R)

$

$

Not available

13057

13057

BRAKE SPRING

$

$

Not available

13094

13094

BRAKE SHAFT

$

$

Not available

13098

13098

BRAKE ARM DRILLED

$

$

Not available

13102

13102

TUBE

$

$

Not available

13105

13105

SPRING CAP

$

$

Not available

13106

13106

STAND OFF WLDT.

$

$

Not available

13107

13107

FRAME WLDT.

$

$

Not available

13108

13108

SPACER

$

$

Not available

13109

13109

$

$

Not available

13123

13123

5/16-18X3-3/4 GR.5 HHB

$

$

Not available

13169

13169

SPRING TAB

$

$

Not available

13207

13207

IDLER ARM ASM.

$

$

Not available

13291

13291

IDLER ARM ASM

$

$

Not available

60255

60255

3/8-16X6-1/2HHB GR8

$

$

Not available
