ZTR 4516K - Dixon Zero-Turn Mower (2000) WIRING Parts Diagram

Zero-Turn Mower

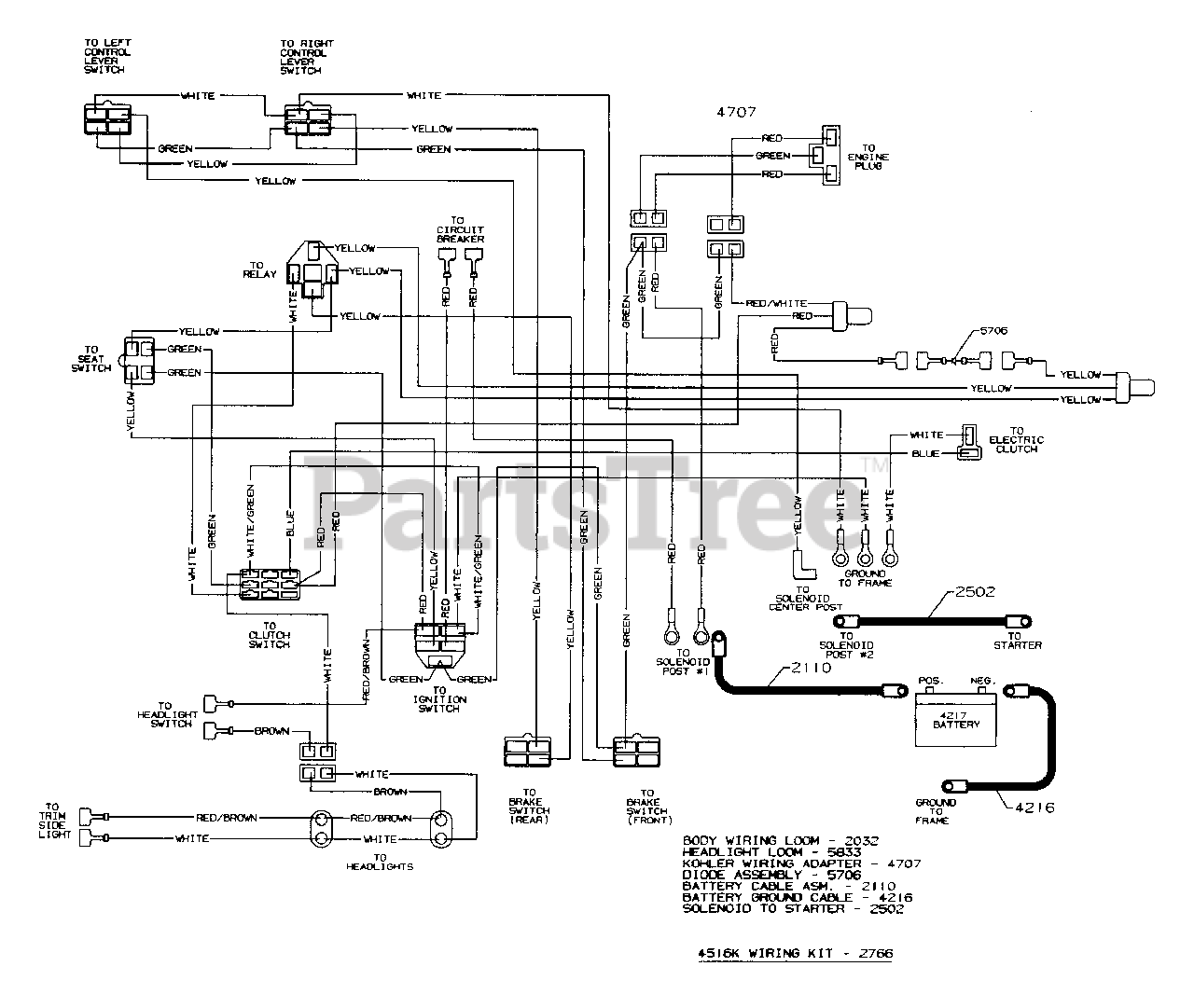

WIRING Parts Diagram

  • Title
2032

2032

WIRE LOOM 4500 SERIES

$

$

Not available

2110

2110

BATTERY CABLE ASSY

$

$

Not available

2502

2502

SOL. TO STARTER CABLE

$

$

Not available

2766

2766

$

$

Not available

4216

Dixon 4216

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4707

4707

ADAPTER

$

$

Not available

5706

5706

DIODE ASSEMBLY

$

$

Not available

5833

5833

HEADLIGHT LOOM

$

$

Not available
