ZTR 4515K - Dixon Zero-Turn Mower (1998) WIRING Parts Diagram

Zero-Turn Mower

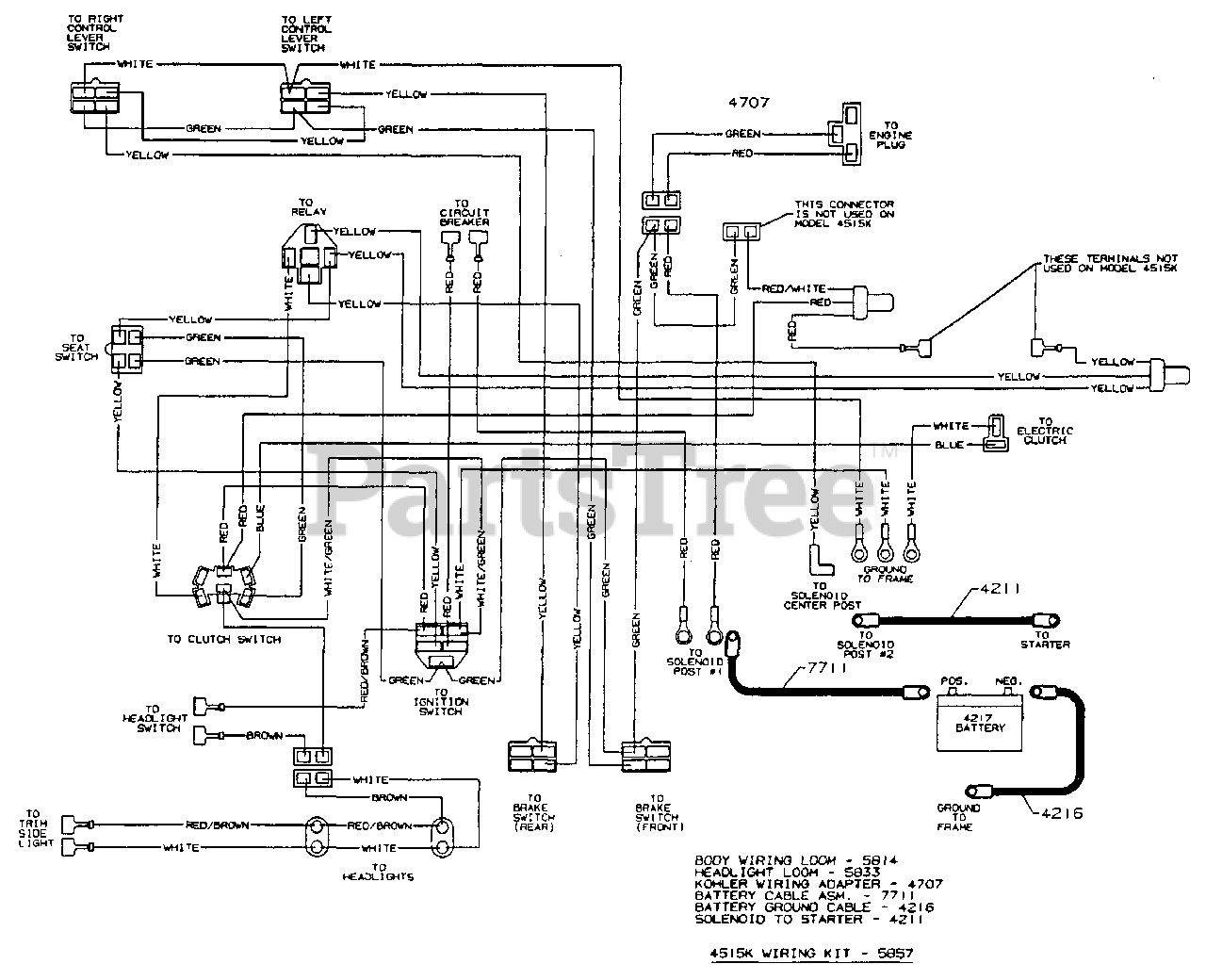

WIRING Parts Diagram

  • Title
4211

4211

STARTER/BATTERY CABLE

$

$

Not available

4216

Dixon 4216

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4707

4707

ADAPTER

$

$

Not available

5814

5814

WIRE LOOM

$

$

Not available

5833

5833

HEADLIGHT LOOM

$

$

Not available

5857

5857

NLA 4515K WIRING KIT

$

$

Not available

7711

7711

CABLE ASM

$

$

Not available
