ZTR 4515K - Dixon Zero-Turn Mower (1998) CHASSIS Parts Diagram

Zero-Turn Mower

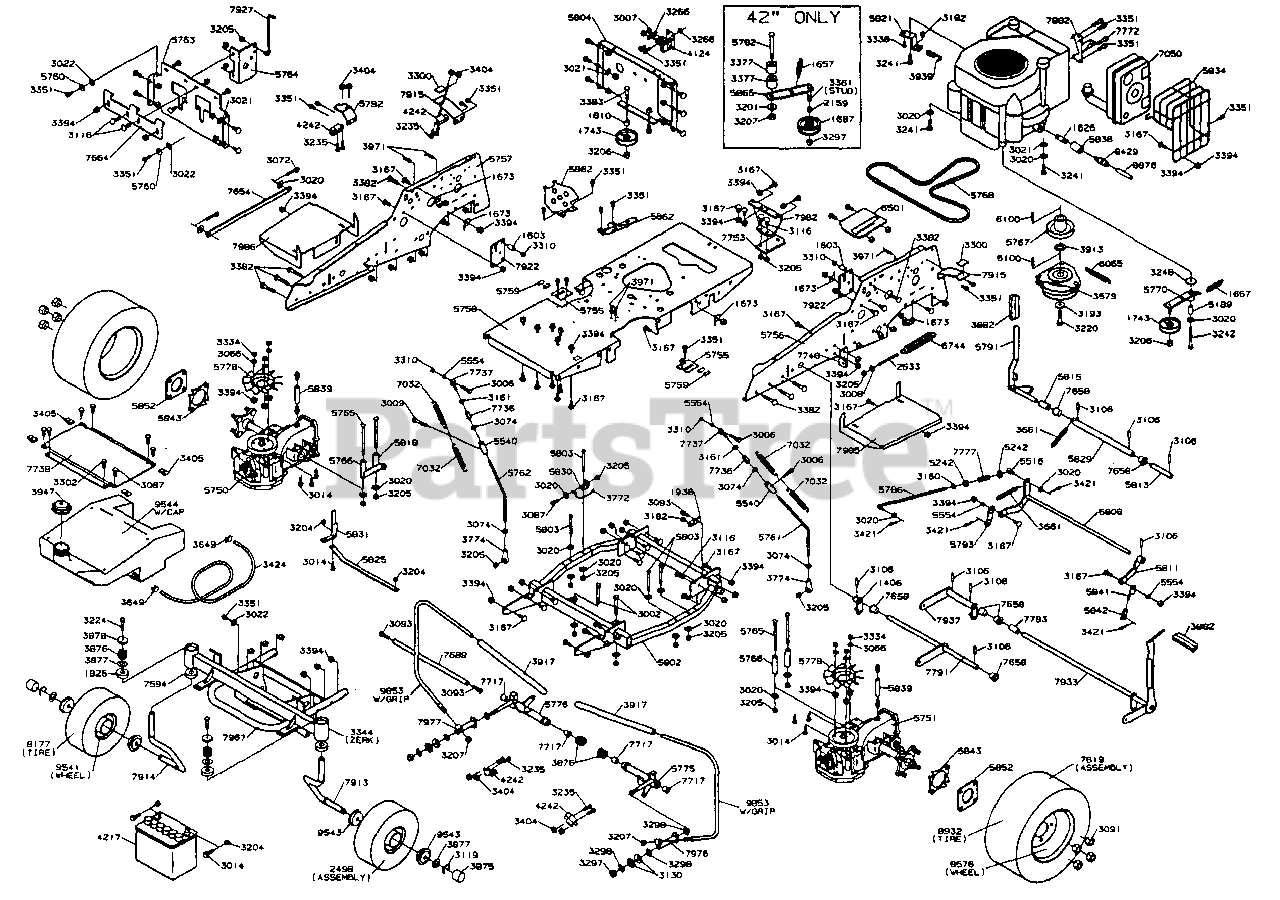

CHASSIS Parts Diagram

  • Title

1406

1406

LIFT ARM DRILLED

$

$

Not available

1603

1603

BUSHING

$

$

Not available

1626

Dixon 1626

3/8X2 GALV PIPE NIPP

$

$

Not available

1657

1657

SPRING

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1810

1810

PIVOT STOP

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

1938

1938

ANCHOR BRACKET

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2498

2498

CASTER WHEEL & TIRE

$

$

Not available

2533

2533

BRAKE ROD

$

$

Not available

3002

3002

5/16-18X2-1/2HHB GR8

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3160

3160

5/16STD FL WASH TYPA

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3201

3201

WASHER-.533IDX1.37OD

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3241

3241

M8X1.25X25 HHB GR8.8

$

$

Not available

3242

Dixon 3242

M8X1.25X70 GR8.8

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3302

3302

5/16-18X1/2 WHTF SCR

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3338

3338

M8X1.25P HWH TAP SCR

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3377

3377

SERP. IDLER SPACER

$

$

Not available

3382

3382

5/16-18X1-3/4 CAR BLT

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3404

Dixon 3404

10-24 HEX FLANGE NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3424

3424

HOSE 1/4 X 44

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3661

3661

MUFFLER SPRING

$

$

Not available

3772

Dixon 3772

BY-PASS KEEPER

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3913

3913

SPACER .25

$

$

Not available

3917

Dixon 3917

BAR SLEEVE

$

$

Not available

3939

3939

CLUTCH ANCHOR

$

$

Not available

3947

3947

FUEL CAP

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5242

5242

PLUG W/HOLE - FLAT

$

$

Not available

5516

5516

SWIVEL

$

$

Not available

5540

5540

CONTROL TUBE

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5750

5750

HYDRO RH

$

$

Not available

5751

5751

HYDRO LH

$

$

Not available

5755

5755

GUIDE

$

$

Not available

5756

5756

$

$

Not available

5757

5757

RH SIDE FRAME

$

$

Not available

5758

5758

CHANNEL FRAME

$

$

Not available

5759

5759

CLIP - 1-3/16`

$

$

Not available

5760

5760

LEVER STOP

$

$

Not available

5761

5761

ROD-LH

$

$

Not available

5762

5762

ROD-RH

$

$

Not available

5763

5763

SEAT SUPPORT FRONT

$

$

Not available

5764

5764

CONTROL TUBE SUPPORT

$

$

Not available

5765

5765

5/16-18X5-3/4 CAR. BOLT

$

$

Not available

5766

5766

TUBE 3/4X3/16WALL X 3

$

$

Not available

5767

5767

ENGINE PULLEY

$

$

Not available

5768

5768

BELT HYDRO DRIVE

$

$

Not available

5770

5770

IDLER ARM ASM.

$

$

Not available

5775

5775

CONTROL TUBE WLDT-LH

$

$

Not available

5776

5776

CONTROL TUBE WLDT-RH

$

$

Not available

5778

5778

HYDRO FAN

$

$

Not available

5782

5782

BOLT, CARRIAGE 1/2-13 X 4-1/2

$

$

Not available

5786

5786

BRAKE CONTROL

$

$

Not available

5791

5791

BRAKE LEVER WLDT.

$

$

Not available

5792

5792

SWITCH MOUNT

$

$

Not available

5793

5793

BRAKE TAB-PLATED

$

$

Not available

5802

5802

TUBE WLDT.

$

$

Not available

5803

5803

5/16-18X3-1/2 HHB

$

$

Not available

5804

5804

SUPPORT PLATE

$

$

Not available

5808

5808

BRAKE SHAFT PLATED

$

$

Not available

5811

5811

BRAKE ARM PLATED

$

$

Not available

5813

5813

SHAFT PLATED

$

$

Not available

5815

5815

SPACER

$

$

Not available

5818

5818

STAND-OFF WLDT.

$

$

Not available

5821

5821

ANCHOR BRACKET

$

$

Not available

5825

5825

LINK BY-PASS

$

$

Not available

5829

5829

TUBE WLDT

$

$

Not available

5830

5830

TAB

$

$

Not available

5831

5831

LEVER BY-PASS

$

$

Not available

5834

5834

MUFFLER GUARD

$

$

Not available

5838

5838

FEMALE COUPLING

$

$

Not available

5839

5839

1/2 DIA X 3` HOSE

$

$

Not available

5841

5841

TAB WLDT. PLATED

$

$

Not available

5842

5842

COLLAR WLDT. - PLATED

$

$

Not available

5843

5843

WHEEL SPACER

$

$

Not available

5852

5852

WHEEL SPACER

$

$

Not available

5862

5862

FAN GUARD

$

$

Not available

5865

5865

R/B 5873 IDLER ARM ASM.

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6501

6501

DECK LIFT QUADRANT

$

$

Not available

6744

6744

SPRING

$

$

Not available

7032

7032

SPRING - 3.50

$

$

Not available

7050

7050

MUFFLER KOHLER

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7654

7654

TIE BAR

$

$

Not available

7658

7658

BUSHING

$

$

Not available

7664

7664

SEAT PLATE HINGE

$

$

Not available

7689

7689

CONTROL LEVER SHAFT

$

$

Not available

7717

7717

BUSHING-CONTROL TUBE

$

$

Not available

7736

7736

ROD END COUPLER

$

$

Not available

7737

7737

ROD END LH

$

$

Not available

7738

7738

BODY SUPPORT CENTER

$

$

Not available

7748

7748

SPRING ANCHOR

$

$

Not available

7753

7753

HITCH

$

$

Not available

7772

7772

MUFFLER MT. SCREW

$

$

Not available

7777

7777

SPRING

$

$

Not available

7783

7783

SPACER - 1.50

$

$

Not available

7791

7791

FRONT DECK SHAFT WLT

$

$

Not available

7819

7819

REAR WHEEL & TIRE

$

$

Not available

7882

7882

BRACKET MUFFLER MT.

$

$

Not available

7913

7913

CASTER AXLE WLDT LH

$

$

Not available

7914

7914

CASTER AXLE WLDT RH

$

$

Not available

7915

7915

FENDER SUPPORT

$

$

Not available

7922

7922

BRACKET CONT. TUBE

$

$

Not available

7927

7927

ROD

$

$

Not available

7933

7933

WLDT. REAR DECK SHAFT

$

$

Not available

7937

7937

LIFT ARM DRILLED - RH

$

$

Not available

7967

7967

WLDT BUMPER 42`

$

$

Not available

7976

7976

WLDT CONT. LEVER LH

$

$

Not available

7977

7977

WLDT CONT. LEVER RH

$

$

Not available

7982

7982

BRACKET-HITCH

$

$

Not available

7985

7985

SUPPT.-LOWER BODY-LH

$

$

Not available

7986

7986

SUPPT.-LOWER BODY - RH

$

$

Not available

8177

8177

CASTER TIRE - 50`

$

$

Not available

8429

8429

R/B 12237 OIL VALVE/HOSE ASM

$

$

Not available

8576

8576

REAR WHEEL (42` 50`)

$

$

Not available

8876

8876

OIL DRAIN HOSE 8`

$

$

Not available

8932

8932

REAR TIRE 36`

$

$

Not available

9541

9541

42` Z CASTER WHEEL

$

$

Not available

9543

9543

CASTER WHEEL BEARING

$

$

Not available

9544

9544

42` Z FUEL TANK W/CAP

$

$

Not available

9853

9853

R/B 7271 CONTROL LEVER W/GRIP

$

$

Not available
