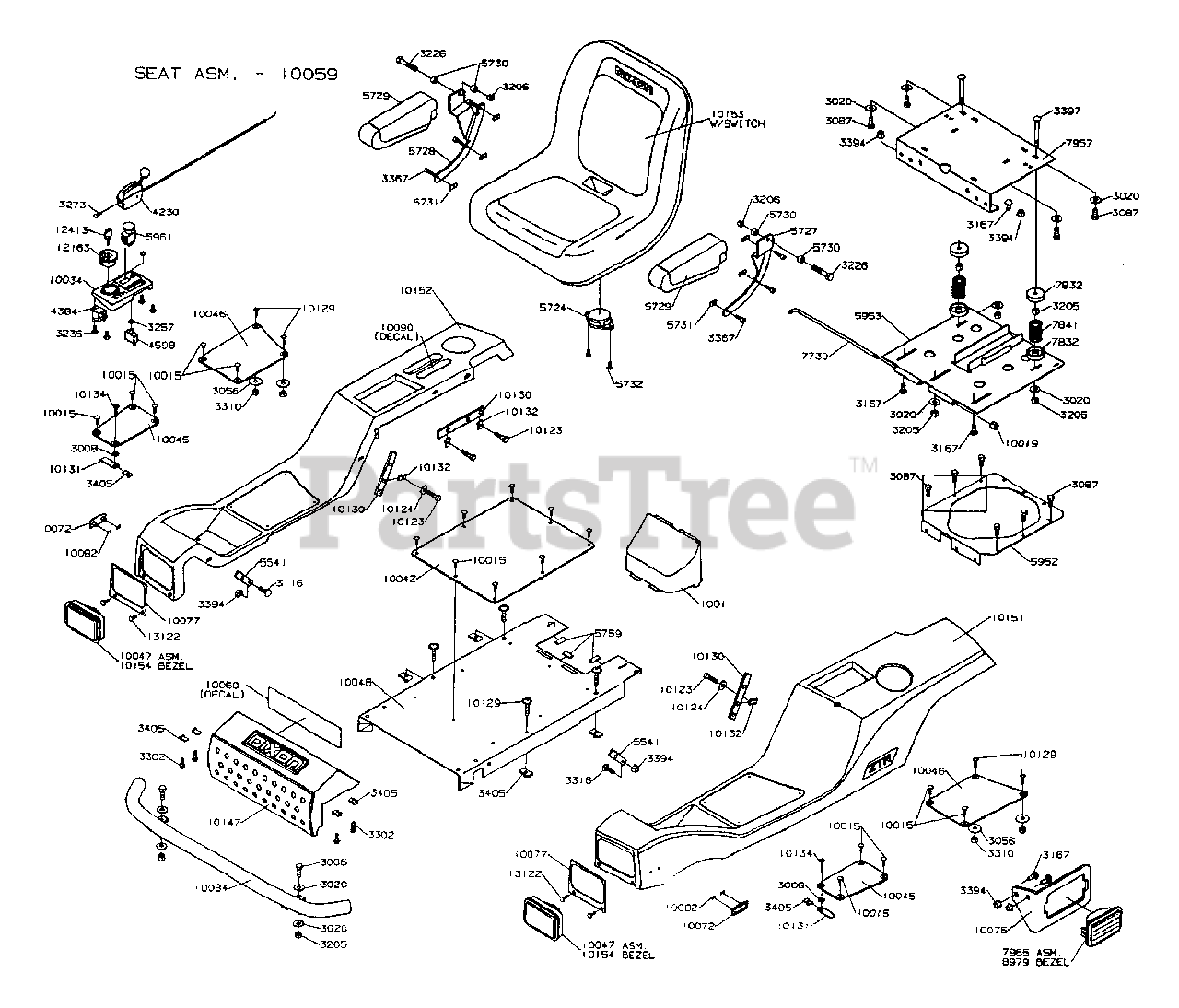

ZTR 4423 - Dixon Zero-Turn Mower (2001) BODY Parts Diagram

Zero-Turn Mower

BODY Parts Diagram

  • Title

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3302

3302

5/16-18X1/2 WHTF SCR

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3367

3367

1/4-20X3/4SOC HD BLT

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3397

3397

5/16-18X3 CAR BOLT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

4230

4230

THROTTLE CABLE

$

$

Not available

4384

4384

RELAY

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

5541

5541

SWIVEL PLATE

$

$

Not available

5724

5724

R/B 10126 SEAT SWITCH

$

$

Not available

5727

5727

$

$

Not available

5728

5728

R/B 10181 RH ARM REST BRKT.

$

$

Not available

5729

5729

R/B 10181 ARM REST

$

$

Not available

5730

5730

$

$

Not available

5731

5731

$

$

Not available

5732

5732

$

$

Not available

5759

5759

CLIP - 1-3/16`

$

$

Not available

5952

5952

FRAME STIFFENER

$

$

Not available

5953

5953

SEAT PLATE

$

$

Not available

5961

5961

CLUTCH SWITCH

$

$

Not available

7730

7730

SEAT HINGE PIN

$

$

Not available

7832

7832

SPRING CUP

$

$

Not available

7841

7841

SEAT SPRING

$

$

Not available

7957

7957

SPRING SEAT PLATE

$

$

Not available

7965

7965

TRIM LIGHT.

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

10011

10011

BATTERY COVER

$

$

Not available

10015

10015

1/4`NYLON TREE RIVET

$

$

Not available

10019

10019

3/8-16 HEX NUT W/NYL-BLK

$

$

Not available

10034

10034

CONTROL PANEL

$

$

Not available

10042

10042

CENTER FLOOR PAD

$

$

Not available

10045

10045

FRONT FOOT PAD 4000

$

$

Not available

10046

10046

REAR FLOOR PAD

$

$

Not available

10047

10047

HEADLIGHT

$

$

Not available

10048

10048

R/B 10020 DECK PAN

$

$

Not available

10059

10059

SEAT 42` W/SWITCH

$

$

Not available

10060

10060

DECAL, OPERATING INST.

$

$

Not available

10072

10072

NAME PLATE 4423

$

$

Not available

10076

10076

TRIMLIGHT BRACKET

$

$

Not available

10077

10077

HEADLIGHT PLATE

$

$

Not available

10082

10082

NUT, 3/16 PUSH

$

$

Not available

10084

10084

BUMPER WLDT 42`

$

$

Not available

10090

10090

DECAL, PARKING BRAKE

$

$

Not available

10123

10123

R/B 3006 5/16-18 X 1-1/4GR5-B

$

$

Not available

10124

10124

5/16 STD FLAT WASHER-BLK

$

$

Not available

10129

10129

5/16-18X1 FLANGED SCREW

$

$

Not available

10130

10130

STRAP

$

$

Not available

10131

10131

FRONT BODY CLIP

$

$

Not available

10132

10132

CLIP NUT 5/16-18

$

$

Not available

10134

10134

5/16-18X1.5 FLANGED SCRE

$

$

Not available

10147

10147

GRILL ASM 4000

$

$

Not available

10151

10151

FENDER LH 42`

$

$

Not available

10152

10152

FENDER RH 42`

$

$

Not available

10153

10153

R/B 13802 4000 SEAT W/O ARMRE

$

$

Not available

10154

10154

RUBBER BEZEL

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

13122

13122

BARBED FASTENER

$

$

Not available
