ZTR 4423 - Dixon Zero-Turn Mower (1998) WIRING Parts Diagram

Zero-Turn Mower

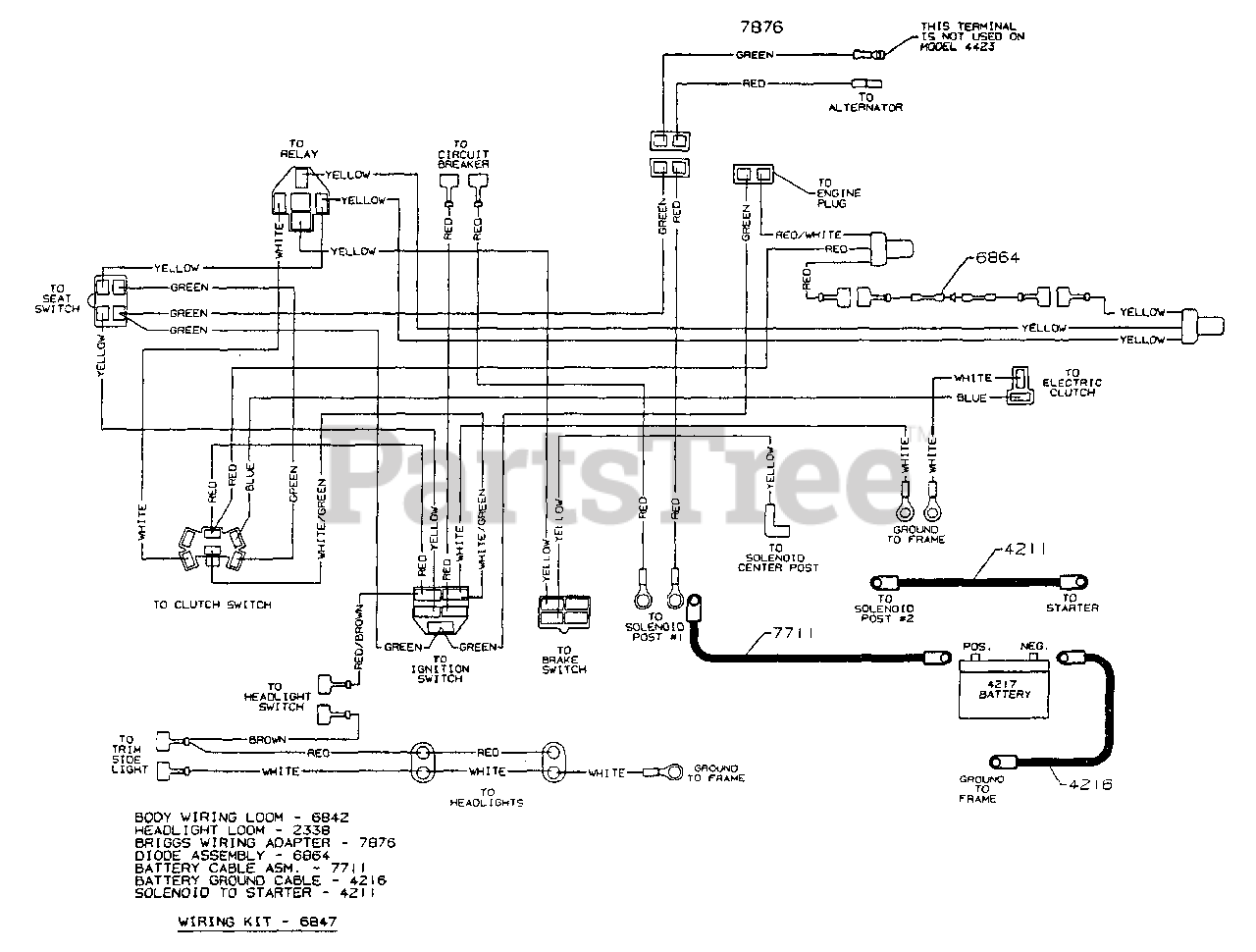

WIRING Parts Diagram

  • Title
2338

2338

LOOM - HEADLIGHT

$

$

Not available

4211

4211

STARTER/BATTERY CABLE

$

$

Not available

4216

Dixon 4216

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

6842

6842

WIRE LOOM 36/42

$

$

Not available

6847

6847

WIRING KIT-4423

$

$

Not available

6864

6864

DIODE ASM

$

$

Not available

7711

7711

CABLE ASM

$

$

Not available

7876

7876

R/B 7876 SHORT LOOM ASM

$

$

Not available
