ZTR 4421 - Dixon Zero-Turn Mower (1994) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

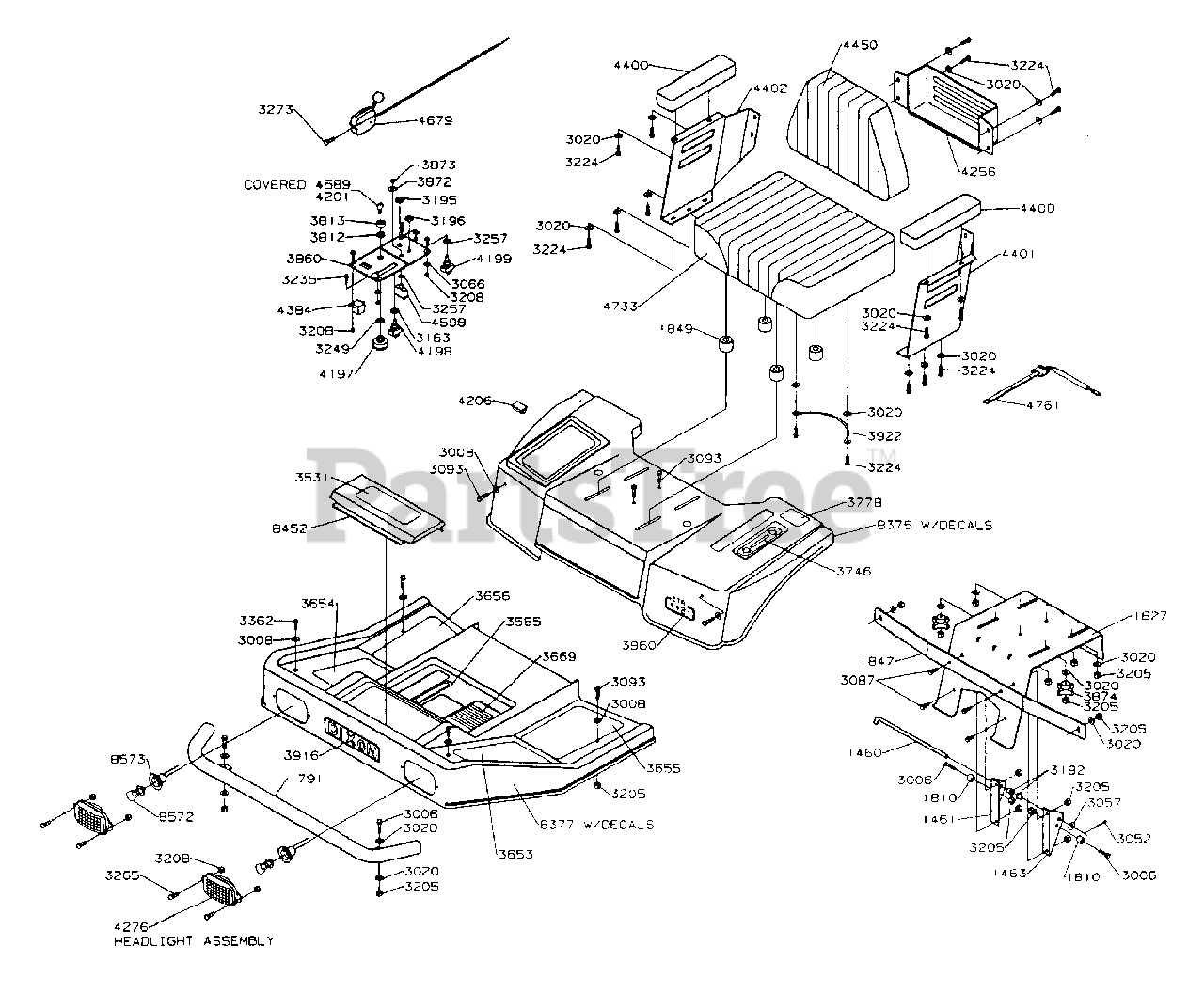

BODY ASSEMBLY Parts Diagram

  • Title

1460

1460

PIVOT SHAFT (PLATED)

$

$

Not available

1461

1461

PIVOT TAB RH R/B 6813

$

$

Not available

1463

1463

PIVOT TAB LH R/B 6813

$

$

Not available

1791

1791

BUMPER WELDMENT

$

$

Not available

1810

1810

PIVOT STOP

$

$

Not available

1827

1827

R/B 1827 SEAT FRAME

$

$

Not available

1847

1847

UPPER BODY BRACE

$

$

Not available

1849

1849

SEAT SPACER

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3196

3196

FACE NUT 7/16-28

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3362

3362

5/16-18X3/4 HWH TFS

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3653

Dixon 3653

FRONT FLOOR PAD L

$

$

Not available

3654

Dixon 3654

FRONT FLOOR PAD R

$

$

Not available

3655

3655

REAR FLOOR PAD L

$

$

Not available

3656

Dixon 3656

REAR FLOOR PAD R

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3778

Dixon 3778

DECAL, FUEL VALVE

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3860

3860

R/B 3860 CONTROL PANEL - 42`

$

$

Not available

3872

3872

$

$

Not available

3873

Dixon 3873

BRACKET, ANTI-ROTATION

$

$

Not available

3874

Dixon 3874

SEAT KNOB 5/16-18

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3922

3922

SEAT HANDLE

$

$

Not available

3960

3960

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4199

4199

LIGHT SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4206

4206

BODY WIRE CLIP 1/2`

$

$

Not available

4256

4256

UTILITY BOX

$

$

Not available

4276

4276

HEADLIGHT

$

$

Not available

4384

4384

RELAY

$

$

Not available

4400

4400

R/B 4400 ARM REST

$

$

Not available

4401

4401

ARM REST BRACKET LH

$

$

Not available

4402

4402

ARM REST BRACKET RH

$

$

Not available

4450

4450

SEAT BACK

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4679

4679

THROTTLE CABLE

$

$

Not available

4733

4733

SEAT BOTTOM

$

$

Not available

4761

4761

SEAT SWITCH ASM

$

$

Not available

8376

8376

UP BODY W/DECALS 42`

$

$

Not available

8377

8377

LO BODY W/DECALS 42`

$

$

Not available

8452

8452

R/B 4687 42/50 BATTERY COVER

$

$

Not available

8572

8572

HEADLIGHT BULB

$

$

Not available

8573

8573

HEADLIGHT SOCKET ASM

$

$

Not available
