ZTR 429 - Dixon Zero-Turn Mower (1992) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

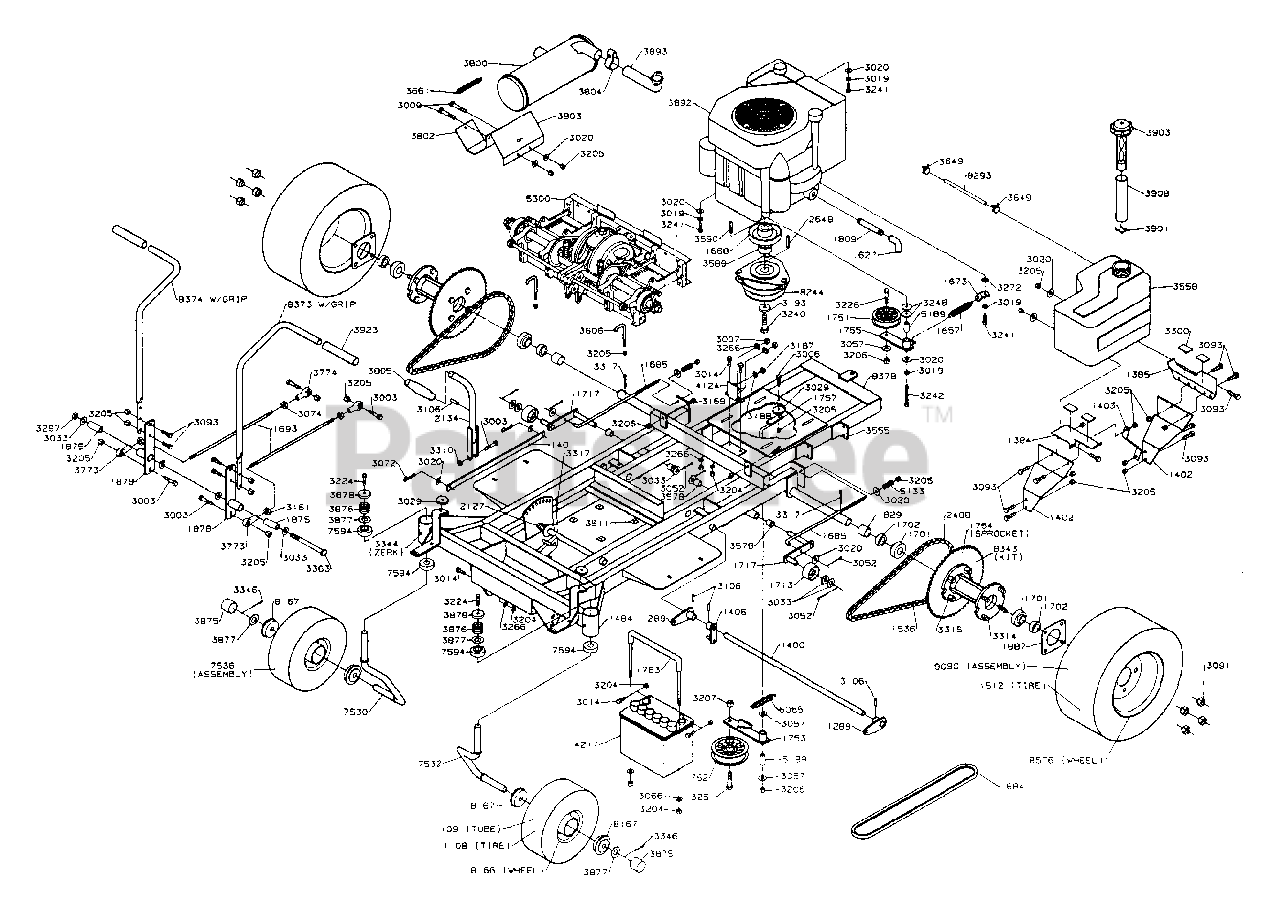

CHASSIS ASSEMBLY Parts Diagram

  • Title

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1289

1289

LIFT ARM DRILLED

$

$

Not available

1384

1384

TANK MT BRKT (SHORT)

$

$

Not available

1385

1385

TANK MT BRKT (LONG)

$

$

Not available

1400

1400

REAR LIFT SHAFT(PLATED)

$

$

Not available

1401

1401

TIE BAR

$

$

Not available

1402

1402

TANK BRACKET

$

$

Not available

1403

1403

TANK BRACE

$

$

Not available

1406

1406

LIFT ARM DRILLED

$

$

Not available

1484

1484

CASTER TUBE

$

$

Not available

1512

1512

REAR TIRE

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1627

1627

R/B 12237 3/8 GALV PIPE ELL

$

$

Not available

1657

1657

SPRING

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1684

Dixon 1684

BELT

$

$

Not available

1685

1685

L-ROD

$

$

Not available

1693

1693

CONTROL ROD

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1713

1713

IDLER PULLEY

$

$

Not available

1717

1717

ARM WELDMENT DRILLED

$

$

Not available

1751

1751

PLASTIC IDLER 3`FLAT(R/B 10294

$

$

Not available

1752

1752

R/B 1687 PLASTIC IDLER 4`FLAT

$

$

Not available

1753

1753

IDLER WELDMENT

$

$

Not available

1755

1755

IDLER WELDMENT

$

$

Not available

1757

1757

ANCHOR WELDMENT

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

1764

1764

WHEEL HUB SPRKT-60T

$

$

Not available

1809

1809

R/B 12237 PIPE NIPPLE 4`

$

$

Not available

1829

1829

AXLE SPACER

$

$

Not available

1875

1875

BUSHING

$

$

Not available

1878

1878

LOWER CONTROL-MACH

$

$

Not available

1887

1887

WHEEL HUB SPACER

$

$

Not available

2127

2127

COMP SPRING 1.09 X 2

$

$

Not available

2134

2134

LIFT HANDLE WLDT

$

$

Not available

2408

2408

DR. CHAIN ASSY#40-92

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3188

Dixon 3188

LOCKWASHER #10 EST TOOTH

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3240

Dixon 3240

M10X1.5X70 HHB GR8.8

$

$

Not available

3241

3241

M8X1.25X25 HHB GR8.8

$

$

Not available

3242

Dixon 3242

M8X1.25X70 GR8.8

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3251

3251

BOLT 1/2-13 X 2 HH

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3272

3272

5/16 INT TOOTH LW

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3314

3314

1/2-20 LUGBOLT G5

$

$

Not available

3315

3315

1/2-20 HEX NUT W/NY

$

$

Not available

3317

3317

HAMMERLOCK COTTER

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3346

Dixon 3346

R/B 3391 1/8DIAX1-1/4 COT PIN

$

$

Not available

3363

3363

1/2-13X5-1/2 HHBGR5

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

3555

3555

TANK MOUNT

$

$

Not available

3558

3558

2 GAL TANK W/CAP

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3589

Dixon 3589

CLUTCH SPACER

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

3606

3606

J-BOLT

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3661

3661

MUFFLER SPRING

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3800

3800

MUFFLER

$

$

Not available

3802

3802

R/B 3803 MUFFLER BRACKET

$

$

Not available

3803

3803

R/B 3803 MUFFLER BRACKET

$

$

Not available

3804

3804

MUFFLER CLAMP

$

$

Not available

3805

3805

R/B 3805 HANDLE GRIP

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3892

3892

$

$

Not available

3893

3893

EXHAUST PIPE

$

$

Not available

3901

Dixon 3901

Spacer, .635 x.875 x .755

$

$

Not available

3903

Dixon 3903

R/B 3554 FUEL CAP ASSEMBLY

$

$

Not available

3908

3908

$

$

Not available

3923

3923

HAND GRIP

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5300

5300

R/B 931 TRANSAXLE ASSEMBLY

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

7530

7530

RH CASTER AXLE KIT

$

$

Not available

7532

7532

LH CASTER AXLE KIT

$

$

Not available

7536

7536

R/B 10040 WHEEL & TIRE ASM

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

8166

8166

R/B 10140 CASTER RIM

$

$

Not available

8167

8167

CASTER WHEEL BEARING

$

$

Not available

8244

8244

CLUTCH KIT

$

$

Not available

8293

8293

HOSE 1/4 X 6

$

$

Not available

8343

8343

R/B 8343 WHEEL HUB ASSEMBLY

$

$

Not available

8373

8373

LH CONTROL LEVER ASM

$

$

Not available

8374

8374

RH CONTROL LEVER ASM

$

$

Not available

8378

8378

$

$

Not available

8576

8576

REAR WHEEL (42` 50`)

$

$

Not available

9090

9090

$

$

Not available
