ZTR 428 - Dixon Zero-Turn Mower (1993) TRANSAXLE ASSEMBLY Parts Diagram

Zero-Turn Mower

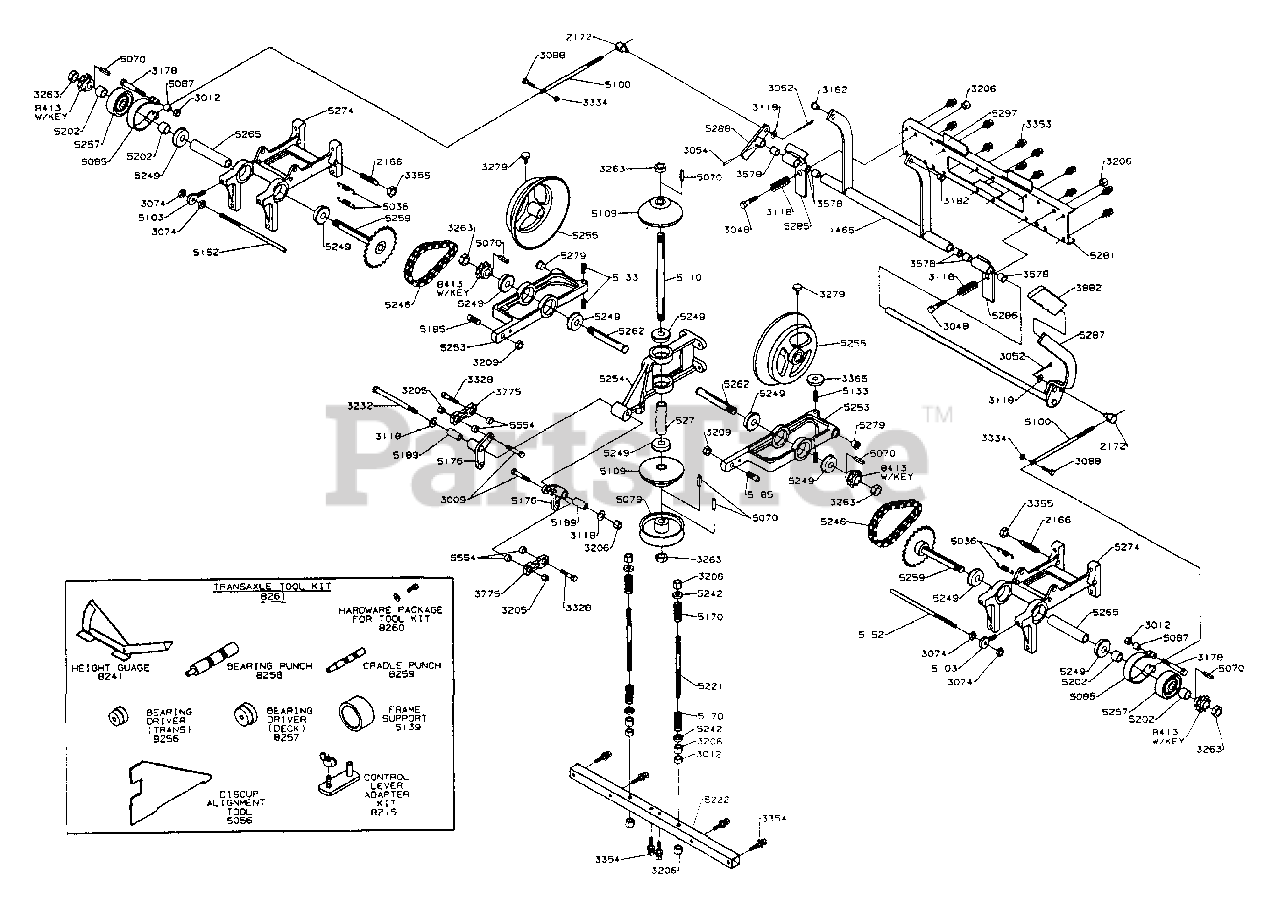

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1465

1465

PIVOT ARM WELDMENT

$

$

Not available

2166

2166

PIVOT BOLT

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3232

Dixon 3232

PINION

$

$

Not available

3263

3263

5/8-11 THIN PROF NY

$

$

Not available

3279

3279

SET SCREW W/HEX HEAD

$

$

Not available

3328

3328

5/16-24X1-1/2HHB GR5

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3353

3353

5/16-18X3/4 HB W/LW

$

$

Not available

3354

3354

5/16-18X1-1/2HB W/LW

$

$

Not available

3355

3355

7/16-14 STD HEX NUT

$

$

Not available

3365

3365

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3775

Dixon 3775

DOUBLE BALL JOINT

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

5036

5036

PIVOT SPRING

$

$

Not available

5056

5056

ALIGNMENT TOOL

$

$

Not available

5070

5070

KEY, 3/16 SQ X .88

$

$

Not available

5079

5079

PULLEY A 5/8 X 4.0

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5087

5087

SPACER 3/8X12

$

$

Not available

5100

5100

BRAKE ROD

$

$

Not available

5103

5103

R/B 5103 THUMBSCREW

$

$

Not available

5109

5109

CONE (1)

$

$

Not available

5110

5110

SHAFT - CONE FRAME

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

5139

5139

#3 TOOL(1.0X1.875OD)

$

$

Not available

5152

Dixon 5152

TORQUE ROD

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5176

5176

BELCRANK

$

$

Not available

5185

Dixon 5185

R/B 5185 ADJUSTER TORQUE ROD

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5202

Dixon 5202

SPACER 5/8 X 1/4

$

$

Not available

5221

Dixon 5221

POS. NEUTRAL ROD

$

$

Not available

5222

Dixon 5222

R/B 5352 FRONT TUBE

$

$

Not available

5242

5242

PLUG W/HOLE - FLAT

$

$

Not available

5246

5246

R/B 5246 CHAIN RS40 30P

$

$

Not available

5249

5249

5/8 BEARING W/SNAP

$

$

Not available

5253

5253

CRADLE - MACHINED

$

$

Not available

5254

5254

CONE FRAME-MACHINED

$

$

Not available

5255

5255

R/B 13408 DISCUP

$

$

Not available

5257

5257

BRAKE DRUM

$

$

Not available

5259

5259

24T SPROCKET WLDT

$

$

Not available

5262

5262

CRADLE SHAFT

$

$

Not available

5265

5265

SPACER - 4.325

$

$

Not available

5271

5271

SPACER 3.115

$

$

Not available

5274

5274

MACHINED SUPPORT LH

$

$

Not available

5279

Dixon 5279

BUSHING, PIVOT

$2.49

$

Usually ships in 3-10 days

0

5281

Dixon 5281

R/B 8834 BACKING PLATE WLDT

$

$

Not available

5285

Dixon 5285

SUPPORT/STOP WLDT

$

$

Not available

5286

5286

SUPPORT WELDMENT

$

$

Not available

5287

5287

BRAKE SHAFT WELDMENT

$

$

Not available

5288

5288

BRAKE ARM DRILLED

$

$

Not available

5297

Dixon 5297

NO LONGER AVAILABLE

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

8215

8215

LEVER ADAPTER KIT

$

$

Not available

8241

8241

HEIGHT GAUGE ASM

$

$

Not available

8256

8256

BEARING DRIVER-TRANS

$

$

Not available

8257

8257

BEARING DRIVER-DECK

$

$

Not available

8258

8258

BEARING PUNCH

$

$

Not available

8259

8259

CRADLE PUNCH

$

$

Not available

8260

8260

HRDWARE PKG-TOOL KIT

$

$

Not available

8261

8261

TRANSAXLE TOOL KIT

$

$

Not available

8413

8413

R/B 8413 SPROCKET - 9T

$

$

Not available
