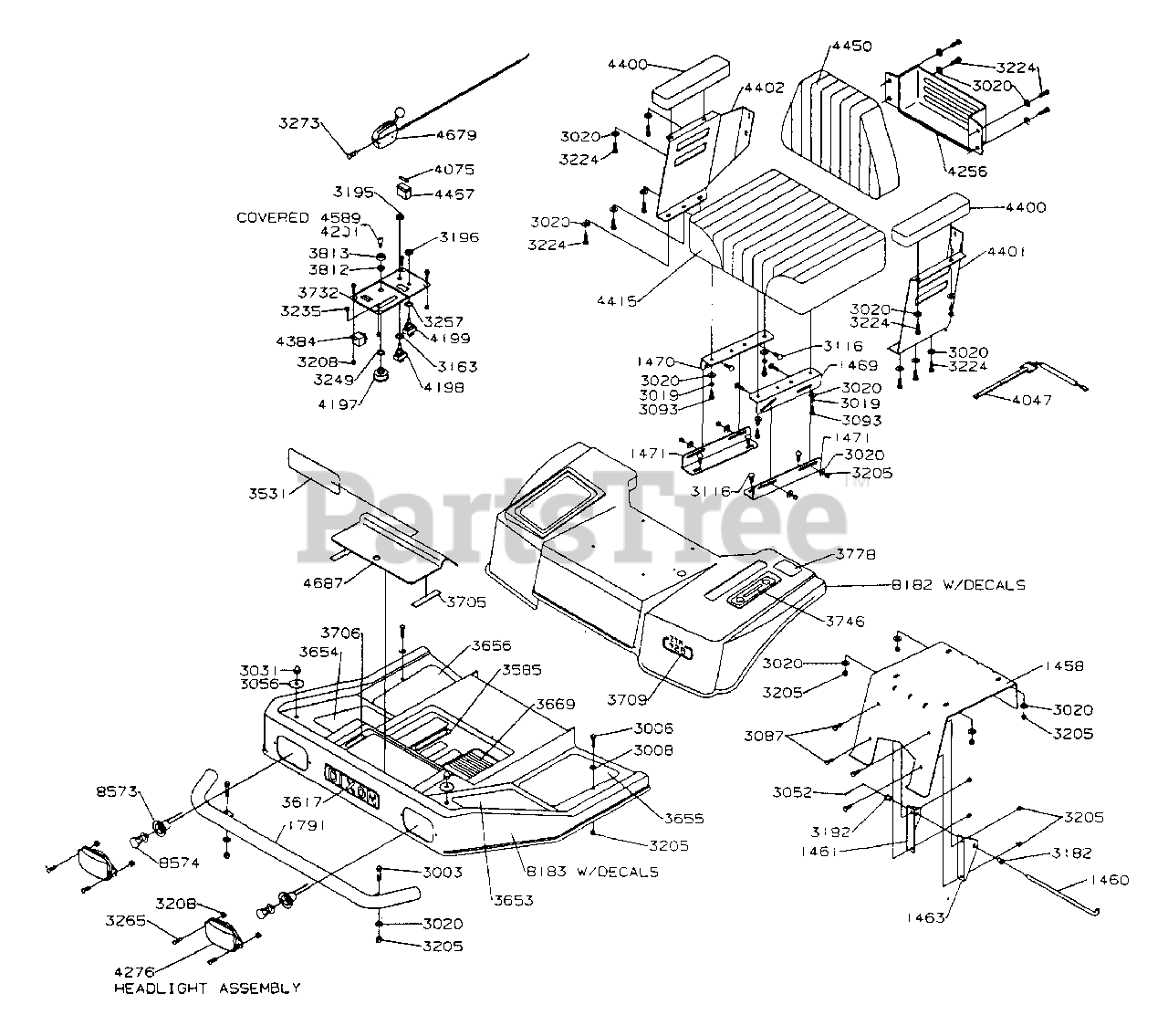

ZTR 428 - Dixon Zero-Turn Mower (1991) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

BODY ASSEMBLY Parts Diagram

  • Title

1458

1458

R/B 1827 SEAT FRAME

$

$

Not available

1460

1460

PIVOT SHAFT (PLATED)

$

$

Not available

1461

1461

PIVOT TAB RH R/B 6813

$

$

Not available

1463

1463

PIVOT TAB LH R/B 6813

$

$

Not available

1469

1469

LH SLIDE ANGLE

$

$

Not available

1470

1470

RH SLIDE ANGLE

$

$

Not available

1471

1471

SEAT SLIDE

$

$

Not available

1791

1791

BUMPER WELDMENT

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3196

3196

FACE NUT 7/16-28

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3617

3617

R/B 3916 DECAL - DIXON

$

$

Not available

3653

Dixon 3653

FRONT FLOOR PAD L

$

$

Not available

3654

Dixon 3654

FRONT FLOOR PAD R

$

$

Not available

3655

3655

REAR FLOOR PAD L

$

$

Not available

3656

Dixon 3656

REAR FLOOR PAD R

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3705

3705

VELCRO STRIP(LOOP)

$

$

Not available

3706

Dixon 3706

VELCRO STRIP (HOOK)

$

$

Not available

3709

Dixon 3709

MODEL DECAL 428

$

$

Not available

3732

Dixon 3732

CONTROL PANEL 42

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3778

Dixon 3778

DECAL, FUEL VALVE

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

4047

4047

DNB SPRINGLEAF SWITCH

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4199

4199

LIGHT SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4256

4256

UTILITY BOX

$

$

Not available

4276

4276

HEADLIGHT

$

$

Not available

4384

4384

RELAY

$

$

Not available

4400

4400

R/B 4400 ARM REST

$

$

Not available

4401

4401

ARM REST BRACKET LH

$

$

Not available

4402

4402

ARM REST BRACKET RH

$

$

Not available

4415

4415

SEAT BOTTOM

$

$

Not available

4450

4450

SEAT BACK

$

$

Not available

4467

4467

FUSE HOLDER

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4679

4679

THROTTLE CABLE

$

$

Not available

4687

Dixon 4687

BATTERY COVER ASM

$

$

Not available

8182

8182

$

$

Not available

8183

8183

$

$

Not available

8573

8573

HEADLIGHT SOCKET ASM

$

$

Not available

8574

8574

R/B 8343 WHEEL HUB ASSY (42)`

$

$
