ZTR 428 - Dixon Zero-Turn Mower (1987) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

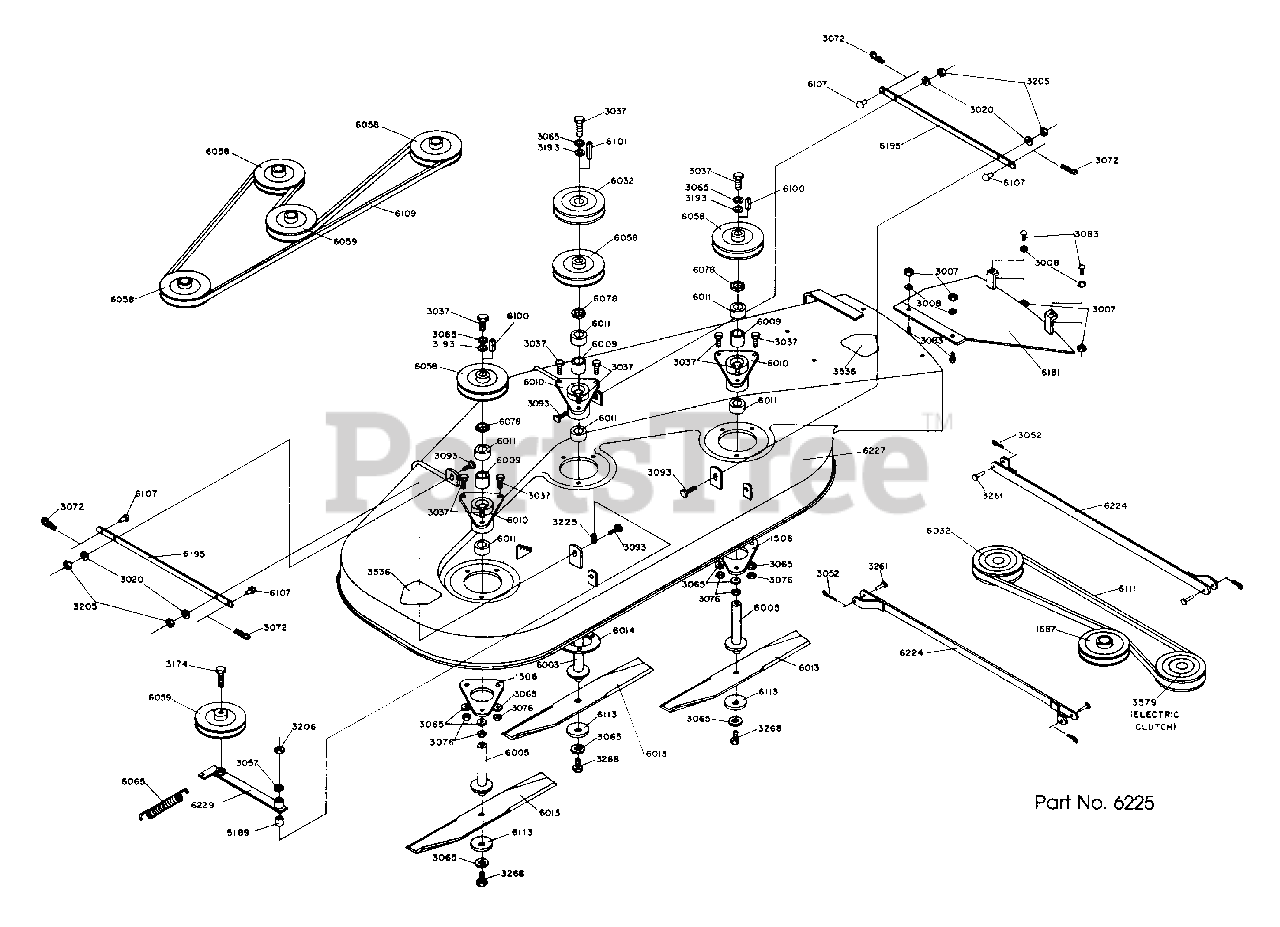

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1506

1506

HUB FLANGE

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3072

3072

$

$

Not available

3076

Dixon 3076

3/8-24 UNF HEX NUT

$

$

Not available

3083

3083

1/4-20UNCX1/2RDHDSCR

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3174

3174

1/2-13 X 1` HHB

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3261

3261

R/B 3275 CLEVIS PIN 5/16X1.13

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6003

6003

SHAFT-TAPPED (LONG)

$

$

Not available

6005

6005

NLA SHAFT WLDT (3.97)

$

$

Not available

6009

6009

HUB SPACER

$

$

Not available

6010

6010

DECK HUB-MACHINE

$

$

Not available

6011

6011

DECK BEARING

$

$

Not available

6013

6013

R/B 6236 MOWER BLADE 42`

$

$

Not available

6014

6014

DECK FLANGE

$

$

Not available

6032

6032

MOWER DECK V-PULLEY

$

$

Not available

6058

6058

V PULLEY

$

$

Not available

6059

6059

FLAT IDLER PULLEY

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6078

6078

PULLEY SPACER

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6107

6107

CLEVIS PIN 5/16

$

$

Not available

6109

6109

V-BELT SERPENTINE

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

6181

6181

R/B 6181 DEFLECTOR WLDT

$

$

Not available

6195

6195

LIFT ATTACH

$

$

Not available

6224

6224

STABILIZER WLDT

$

$

Not available

6225

6225

R/B 6225 MOWER DECK ASSEMBLY

$

$

Not available

6227

6227

MOWER DECK WLDT

$

$

Not available

6229

6229

SERP. IDLER WLDT

$

$

Not available
