ZTR 427 - Dixon Zero-Turn Mower (1986) WIRING ASSEMBLY Parts Diagram

Zero-Turn Mower

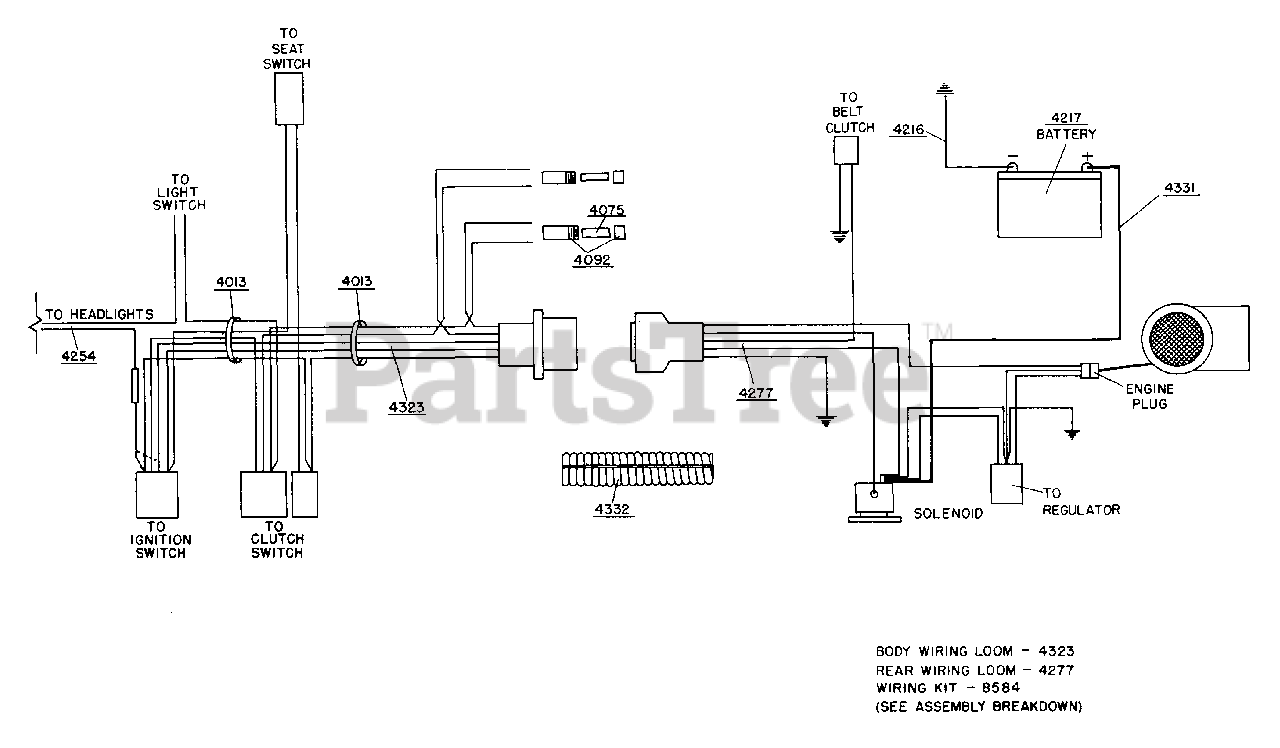

WIRING ASSEMBLY Parts Diagram

  • Title
4013

4013

NYLON WIRE TIE

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4092

4092

FUSE HOLDER

$

$

Not available

4216

Dixon 4216

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4254

4254

BRN/WHT W/TERM 48`

$

$

Not available

4277

4277

R/B 4352 REAR WIRING LOOM

$

$

Not available

4323

4323

R/B 4351 BODY WIRE LOOM 427

$

$

Not available

4331

4331

R/B 4583 BATTERY CABLE 56.5

$

$

Not available

4332

4332

COVER FLEX GARD 14`

$

$

Not available

8584

8584

WIRING KIT 427

$

$

Not available
