ZTR 427 - Dixon Zero-Turn Mower (1986) ENGINE DRAWINGS Parts Diagram

Zero-Turn Mower

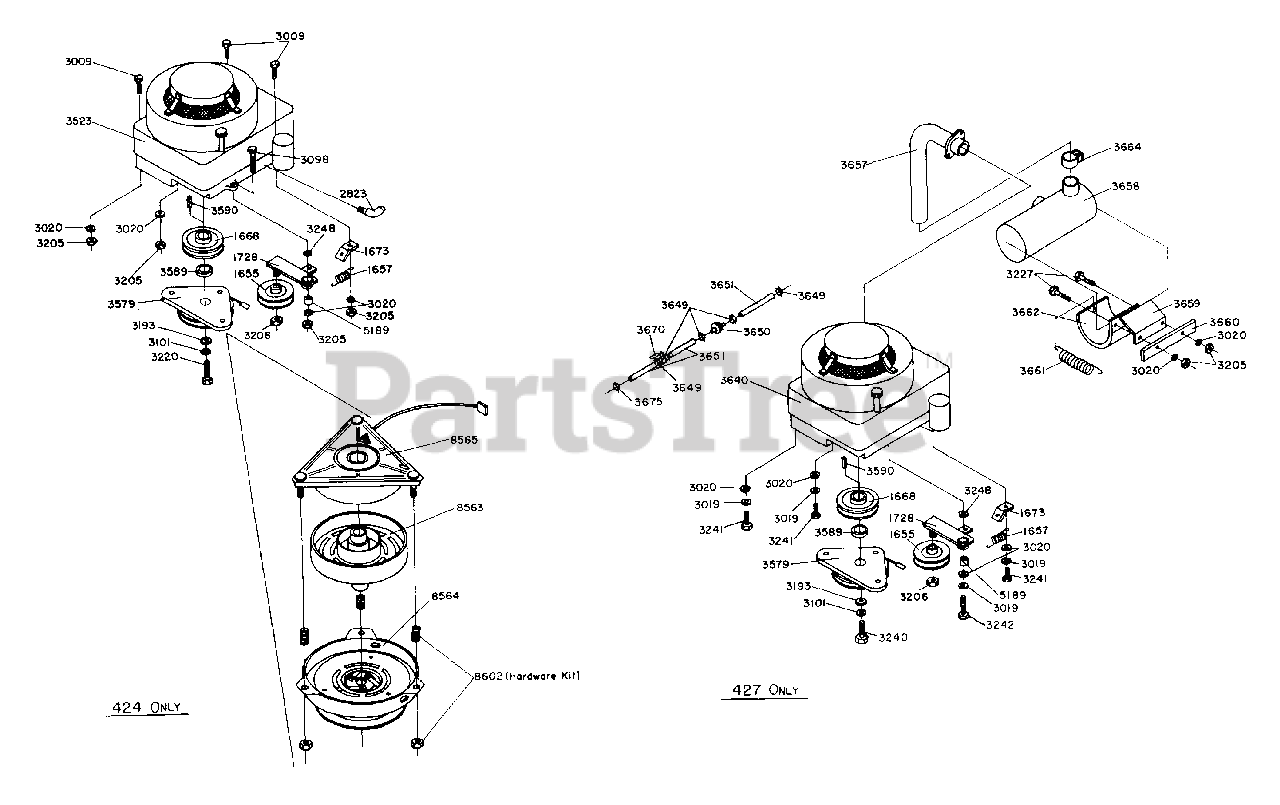

ENGINE DRAWINGS Parts Diagram

  • Title

1655

1655

R/B 10294 IDLER FLAT 3`

$

$

Not available

1657

1657

SPRING

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1728

1728

$

$

Not available

2823

2823

R/B 12237 OIL DRAIN ASSY

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3098

3098

5/16-18X3 HHB GR5

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3240

Dixon 3240

M10X1.5X70 HHB GR8.8

$

$

Not available

3241

3241

M8X1.25X25 HHB GR8.8

$

$

Not available

3242

Dixon 3242

M8X1.25X70 GR8.8

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3523

3523

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

3589

Dixon 3589

CLUTCH SPACER

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

3640

Dixon 3640

SPROCKET, 18T

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3650

3650

FUEL FILTER

$

$

Not available

3651

3651

HOSE 1/4 X 10.5

$

$

Not available

3657

Dixon 3657

EXHAUST PIPE

$

$

Not available

3658

Dixon 3658

SHAFT, IDLER

$

$

Not available

3659

3659

MUFFLER SHIELD

$

$

Not available

3660

3660

MUFFLER SPACER

$

$

Not available

3661

3661

MUFFLER SPRING

$

$

Not available

3662

3662

MUFFLER BRACKET

$

$

Not available

3664

3664

MUFFLER CLAMP

$

$

Not available

3670

3670

FUEL SHUT-OFF VALVE

$

$

Not available

3675

3675

FUEL LINE CLAMP

$

$

Not available

5189

5189

BUSHING

$

$

Not available

8563

8563

$

$

Not available

8564

8564

R/B 8244 ARMATURE-ELEC CLUTCH

$

$

Not available

8565

8565

R/B 8244 FIELD ASSEMBLY - 42

$

$

Not available

8602

8602

$

$

Not available
