ZTR 427 - Dixon Zero-Turn Mower (1986) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

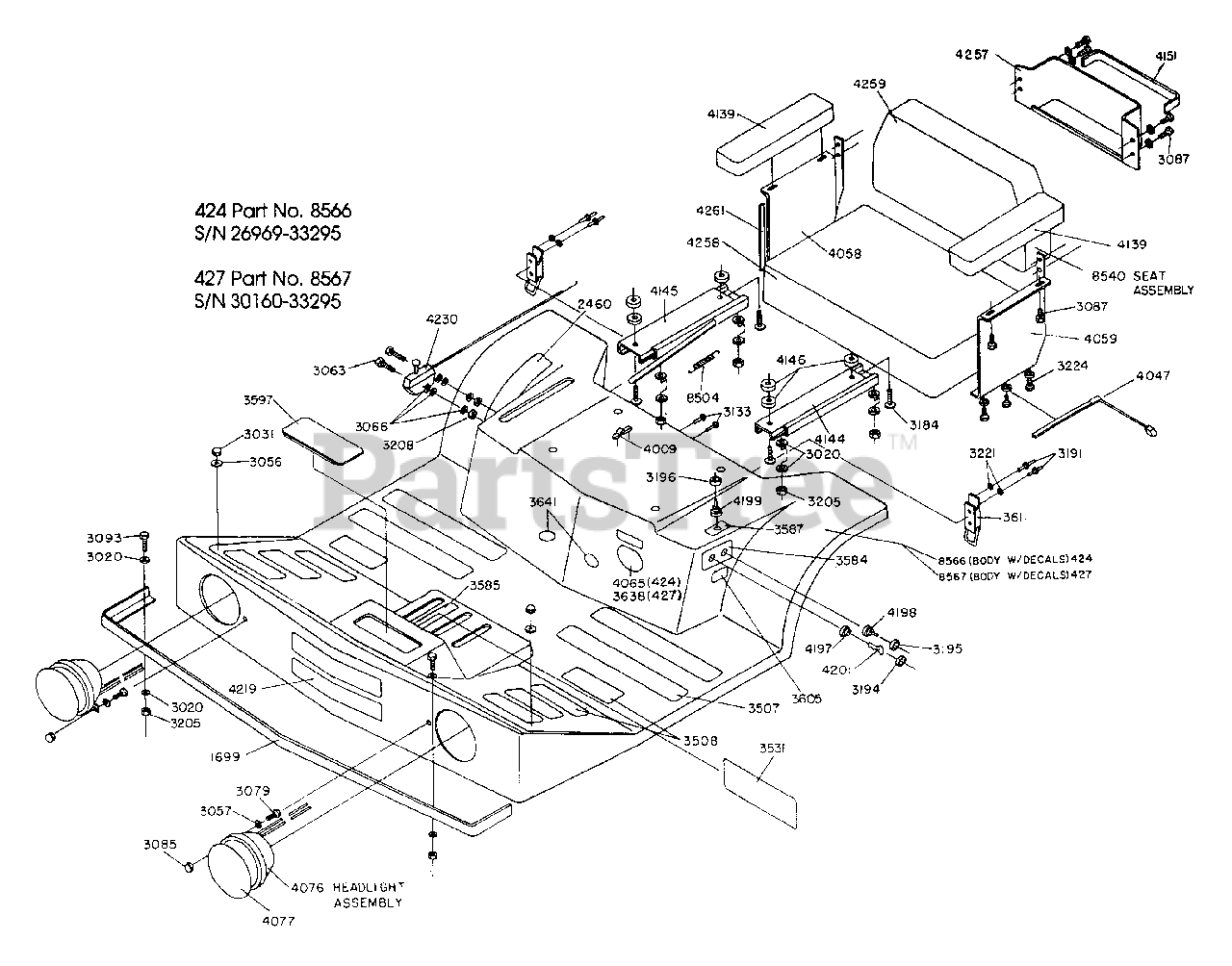

BODY ASSEMBLY Parts Diagram

  • Title

1699

1699

BUMPER - WELDED

$

$

Not available

2460

2460

R/B 3746 PARKING BRAKE DECAL

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3063

3063

10-24UNC X 1-1/4 RHS

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3085

3085

NUT, ACORN 3/8 16 UNC

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3133

3133

R/B 3133 8 X 1/2 SM SCREW

$

$

Not available

3184

Dixon 3184

5/16-18X1-1/4PANHDPH

$

$

Not available

3191

Dixon 3191

POP RIVET 5/32 DIA

$

$

Not available

3194

Dixon 3194

R/B 8889 FACE NUT 5/8-32

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3196

3196

FACE NUT 7/16-28

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3221

3221

R/B 3145 #8 SAE FLAT WASHER

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3507

3507

$

$

Not available

3508

3508

R/B 3508 FRONT FLOOR PAD

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3584

3584

DECAL SWITCH/DRIVE

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3587

3587

DECAL - LIGHTS

$

$

Not available

3597

3597

$

$

Not available

3605

3605

DECAL NOTE CLUTCH

$

$

Not available

3611

3611

LATCH

$

$

Not available

3638

3638

DECAL - MODEL 427

$

$

Not available

3641

3641

BODY PLUG

$

$

Not available

4009

4009

WIRE CLIP

$

$

Not available

4047

4047

DNB SPRINGLEAF SWITCH

$

$

Not available

4058

4058

ARM REST ASSEMBLY RH

$

$

Not available

4059

4059

ARM REST ASSEMBLY LH

$

$

Not available

4065

4065

ZTR 424 DECAL

$

$

Not available

4076

4076

R/B 4076 HEADLIGHT

$

$

Not available

4077

4077

R/B 4076 HEADLIGHT #4411

$

$

Not available

4139

4139

R/B 4400 ARMREST OFFSET

$

$

Not available

4144

4144

R/B 7292 SLIDE W/O ADJUSTER

$

$

Not available

4145

4145

R/B 7292 SLIDE W/ADJUSTER

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4151

4151

UTILITY BOX TRIM

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4199

4199

LIGHT SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4219

4219

R/B 4219 NAME DECAL

$

$

Not available

4230

4230

THROTTLE CABLE

$

$

Not available

4257

4257

R/B 4256 UTILITY BOX W/TRIM

$

$

Not available

4258

4258

SEAT BOTTOM

$

$

Not available

4259

4259

SEAT BACK

$

$

Not available

4261

4261

TRIM - ARM BRKT

$

$

Not available

8504

8504

SEAT SLIDE SPRING

$

$

Not available

8540

8540

R/B 8644 SEAT ASSEMBLY

$

$

Not available

8566

8566

$

$

Not available

8567

8567

$

$

Not available
