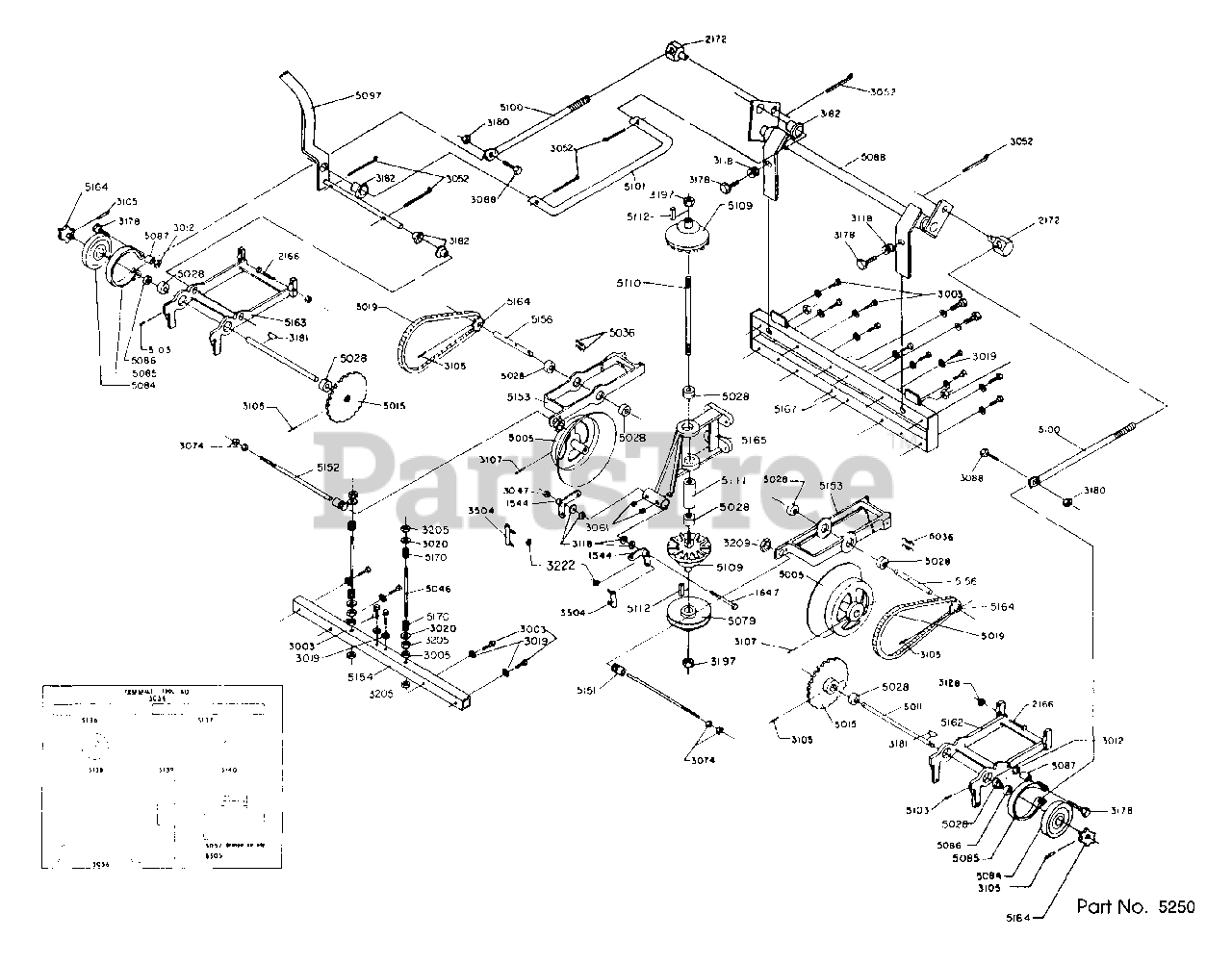

ZTR 426 - Dixon Zero-Turn Mower (1985) TRANSAXLE ASSEMBLY Parts Diagram

Zero-Turn Mower

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1544

1544

R/B 1636 BELLCRANK ASSY

$

$

Not available

1647

1647

R/B 1647 LOWER LEVER PIN WLDT

$

$

Not available

2166

2166

PIVOT BOLT

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3047

3047

NUT, L 3/8-24 UNF HEX

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3103

3103

3/8-24 X 1 HHB GR5

$

$

Not available

3105

3105

R/B 3105 14X1-1/4 HD SPIR PIN

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3128

3128

CHAIN

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3180

Dixon 3180

1/4-20 HEX LOCKNUT

$

$

Not available

3181

3181

WOODRUFF KEY #605

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3197

3197

R/B 3388 5/8-11 JAM LOCKNUT

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3222

3222

R/B 3222 5/16-24 UNF H LK NUT

$

$

Not available

3504

3504

R/B 8277 DOUBLE BALL JOINT

$

$

Not available

5005

5005

DISCUP-MACHINED

$

$

Not available

5011

5011

SUPPORT SHAFT

$

$

Not available

5015

5015

SPROCKET 24T-40RC

$

$

Not available

5019

5019

R/B 5246 CHAIN RS40 30P

$

$

Not available

5028

5028

TRANSAXLE BEARING

$

$

Not available

5036

5036

PIVOT SPRING

$

$

Not available

5046

5046

POSITIVE NEUTRAL ROD

$

$

Not available

5054

5054

$

$

Not available

5056

5056

ALIGNMENT TOOL

$

$

Not available

5057

5057

$

$

Not available

5079

5079

PULLEY A 5/8 X 4.0

$

$

Not available

5084

5084

BRAKE DRUM

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5086

5086

SPACER 5/8 X 5/16

$

$

Not available

5087

5087

SPACER 3/8X12

$

$

Not available

5088

5088

BRAKE SHAFT WLDT

$

$

Not available

5097

5097

BRAKE LVR WLDT

$

$

Not available

5100

5100

BRAKE ROD

$

$

Not available

5101

5101

BRAKE LINK

$

$

Not available

5103

5103

R/B 5103 THUMBSCREW

$

$

Not available

5109

5109

CONE (1)

$

$

Not available

5110

5110

SHAFT - CONE FRAME

$

$

Not available

5111

5111

SLEEVE 7/8 X 3.25

$

$

Not available

5112

Dixon 5112

NO LONGER AVAILABLE

$

$

Not available

5136

5136

$

$

Not available

5137

5137

$

$

Not available

5138

5138

$

$

Not available

5139

5139

#3 TOOL(1.0X1.875OD)

$

$

Not available

5140

5140

BELT KEEPER KIT

$

$

Not available

5151

5151

R/B 5185 ADJUSTER TORQUE ROD

$

$

Not available

5152

Dixon 5152

TORQUE ROD

$

$

Not available

5153

5153

R/B 8345 CRADLE MACHINED

$

$

Not available

5154

Dixon 5154

NO LONGER AVAILABLE

$

$

Not available

5156

5156

CRADLE SHAFT

$

$

Not available

5162

Dixon 5162

SUPPORT LH MACHINED

$

$

Not available

5163

Dixon 5163

R/B 8673 SUPPORT RH MACHINED

$

$

Not available

5164

5164

R/B 5164 SPROCKET

$

$

Not available

5165

Dixon 5165

R/B 8675 CONE FRAME MACHINED

$

$

Not available

5167

5167

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5250

5250

TRANSAXLE ASM

$

$

Not available

8505

8505

$

$

Not available
