ZTR 425 - Dixon Zero-Turn Mower (1984) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

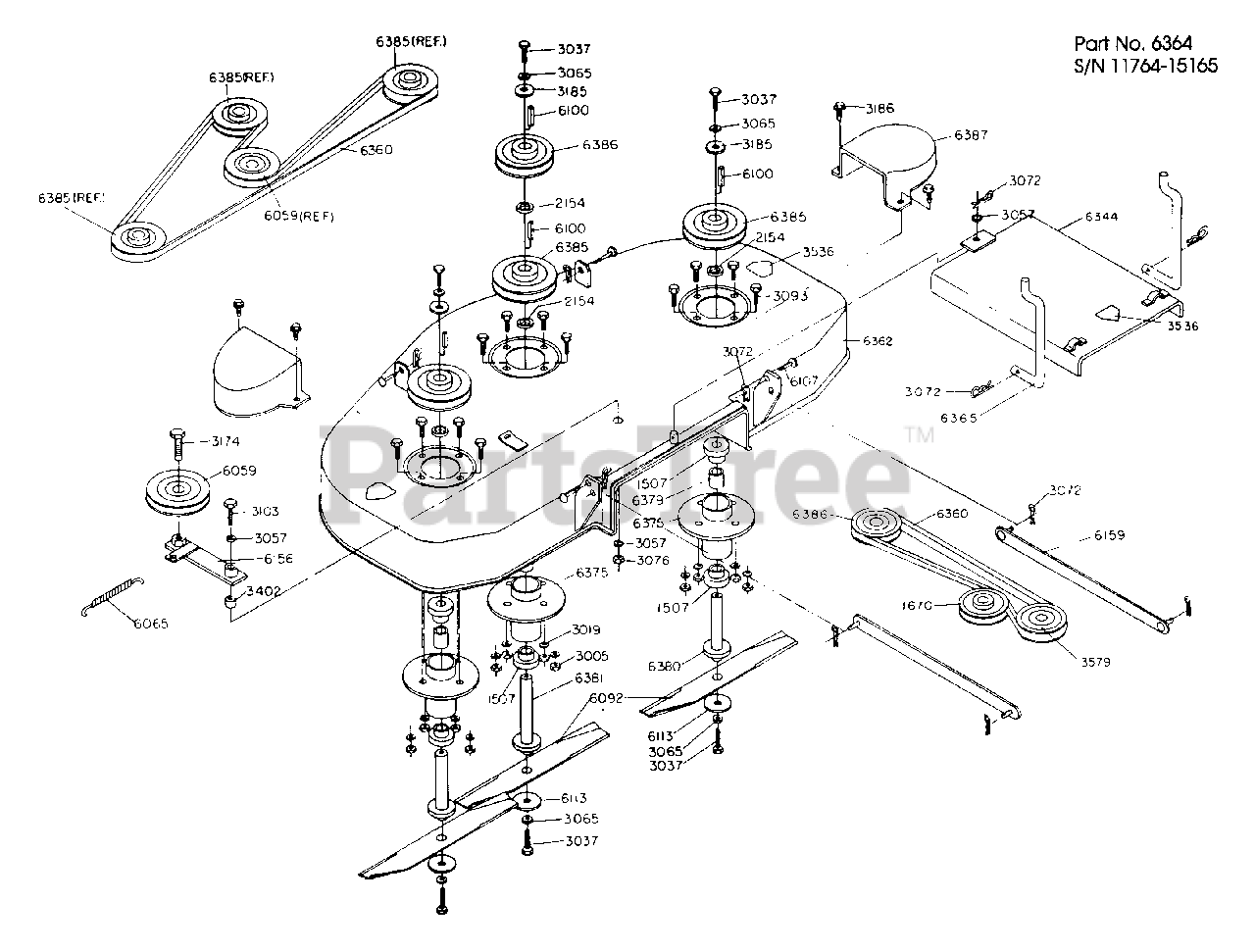

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1507

1507

WHEEL/DECKHUB BEAR`G

$

$

Not available

1670

1670

IDLER PULLEY

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3072

3072

$

$

Not available

3076

Dixon 3076

3/8-24 UNF HEX NUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3103

3103

3/8-24 X 1 HHB GR5

$

$

Not available

3174

3174

1/2-13 X 1` HHB

$

$

Not available

3185

3185

WASHER .408IDX1.37OD

$

$

Not available

3186

Dixon 3186

SCREW, TAP & DR #12-14 X 1

$

$

Not available

3402

3402

BRZ BUSH 5/8X3/8X3/4

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

6059

6059

FLAT IDLER PULLEY

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6092

6092

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6107

6107

CLEVIS PIN 5/16

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

6156

6156

SERP. IDLER WLDT.

$

$

Not available

6159

6159

STABILIZER ARM

$

$

Not available

6344

6344

DISCHARGE CHUTE WLDT

$

$

Not available

6360

6360

DECK DRIVE BELT

$

$

Not available

6362

6362

$

$

Not available

6365

6365

$

$

Not available

6375

6375

HUB WELDMENT

$

$

Not available

6379

6379

SPACER 1.25 X 1.39

$

$

Not available

6380

6380

$

$

Not available

6381

6381

SHAFT WLDT LONG

$

$

Not available

6385

6385

MOWER DECK V-PULLEY 4.5

$

$

Not available

6386

6386

MOWER DECK V-PULLEY 4.0

$

$

Not available

6387

6387

$

$

Not available
