ZTR 425 - Dixon Zero-Turn Mower (1983) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

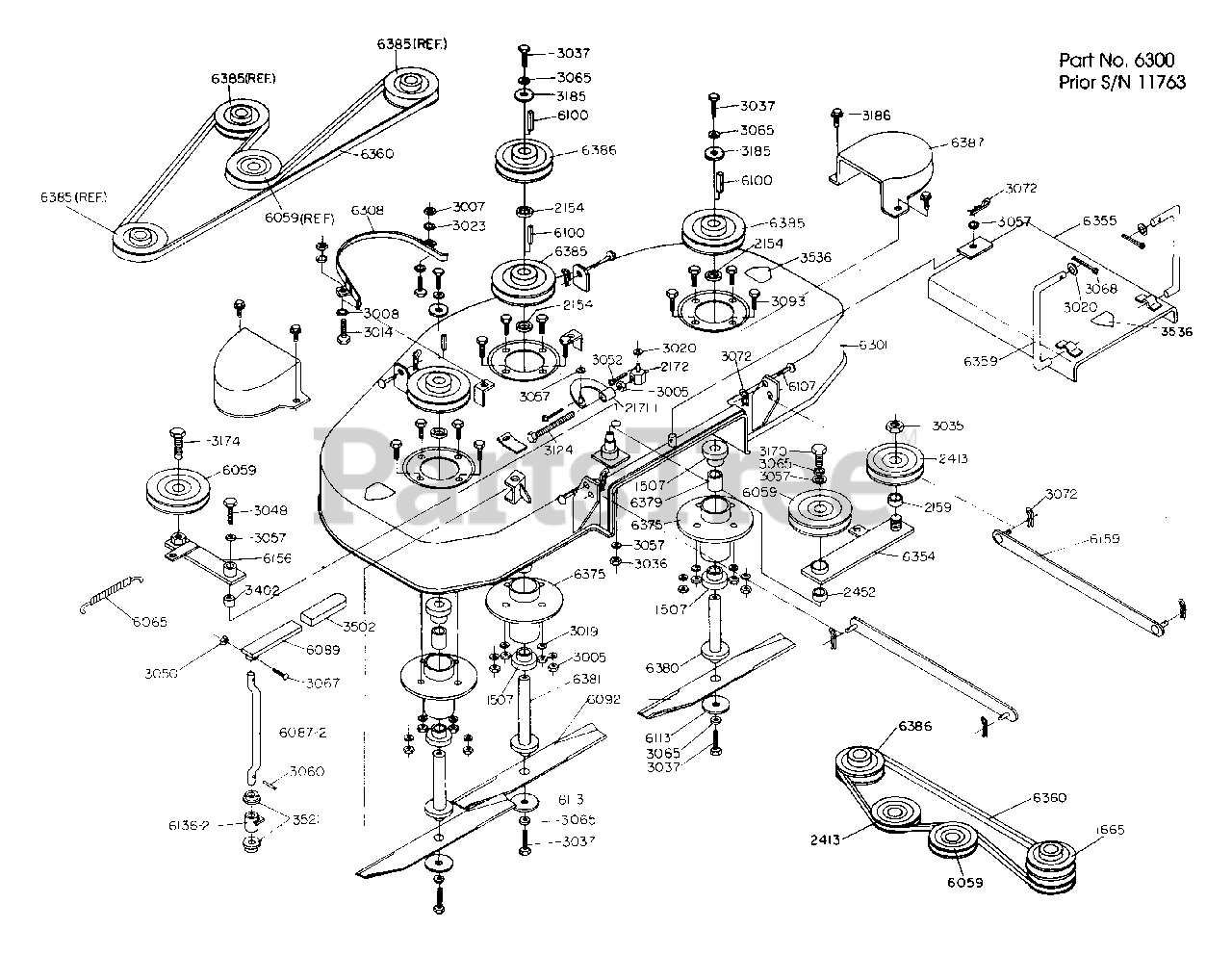

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1507

1507

WHEEL/DECKHUB BEAR`G

$

$

Not available

1665

1665

PULLEY DOUBLE

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2171-1

2171-1

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

2413

2413

V-IDLER PULLEY

$

$

Not available

2452

2452

ENG IDLER STUD BUSH.

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3035

Dixon 3035

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3036

Dixon 3036

3/8-16UNC HEX L-NUT

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3050

3050

R/B 3208 10-24UNC HEX L-NUT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3060

3060

ROLLPIN 3/16 DIA X 3/4

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3067

3067

R/B 3381 10-24UNC X1RDHDSCREW

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3072

3072

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3124

3124

5/16-18 X 6 HHB GR5

$

$

Not available

3170

3170

3/8-24UNFX1/2 HHB G5

$

$

Not available

3174

3174

1/2-13 X 1` HHB

$

$

Not available

3185

3185

WASHER .408IDX1.37OD

$

$

Not available

3186

Dixon 3186

SCREW, TAP & DR #12-14 X 1

$

$

Not available

3402

3402

BRZ BUSH 5/8X3/8X3/4

$

$

Not available

3502

3502

HAND GRIP

$

$

Not available

3521

3521

ENG CAM MT BUSHING

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

6059

6059

FLAT IDLER PULLEY

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6087-2

6087-2

$

$

Not available

6089

6089

ENG HANDLE WLDT

$

$

Not available

6092

6092

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6107

6107

CLEVIS PIN 5/16

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

6136-2

6136-2

$

$

Not available

6156

6156

SERP. IDLER WLDT.

$

$

Not available

6159

6159

STABILIZER ARM

$

$

Not available

6300

6300

$

$

Not available

6301

6301

$

$

Not available

6308

6308

$

$

Not available

6354

6354

ENGAGING IDLER WLDT.

$

$

Not available

6355

6355

DISCHAR CHUTE WLDT.

$

$

Not available

6359

6359

DISCHAR CHUTE HANGER

$

$

Not available

6360

6360

DECK DRIVE BELT

$

$

Not available

6375

6375

HUB WELDMENT

$

$

Not available

6379

6379

SPACER 1.25 X 1.39

$

$

Not available

6380

6380

$

$

Not available

6381

6381

SHAFT WLDT LONG

$

$

Not available

6385

6385

MOWER DECK V-PULLEY 4.5

$

$

Not available

6386

6386

MOWER DECK V-PULLEY 4.0

$

$

Not available

6387

6387

$

$

Not available
