ZTR 425 - Dixon Zero-Turn Mower (1983) BODY ASSEMBLY P/N 8591 & 8592 Parts Diagram

Zero-Turn Mower

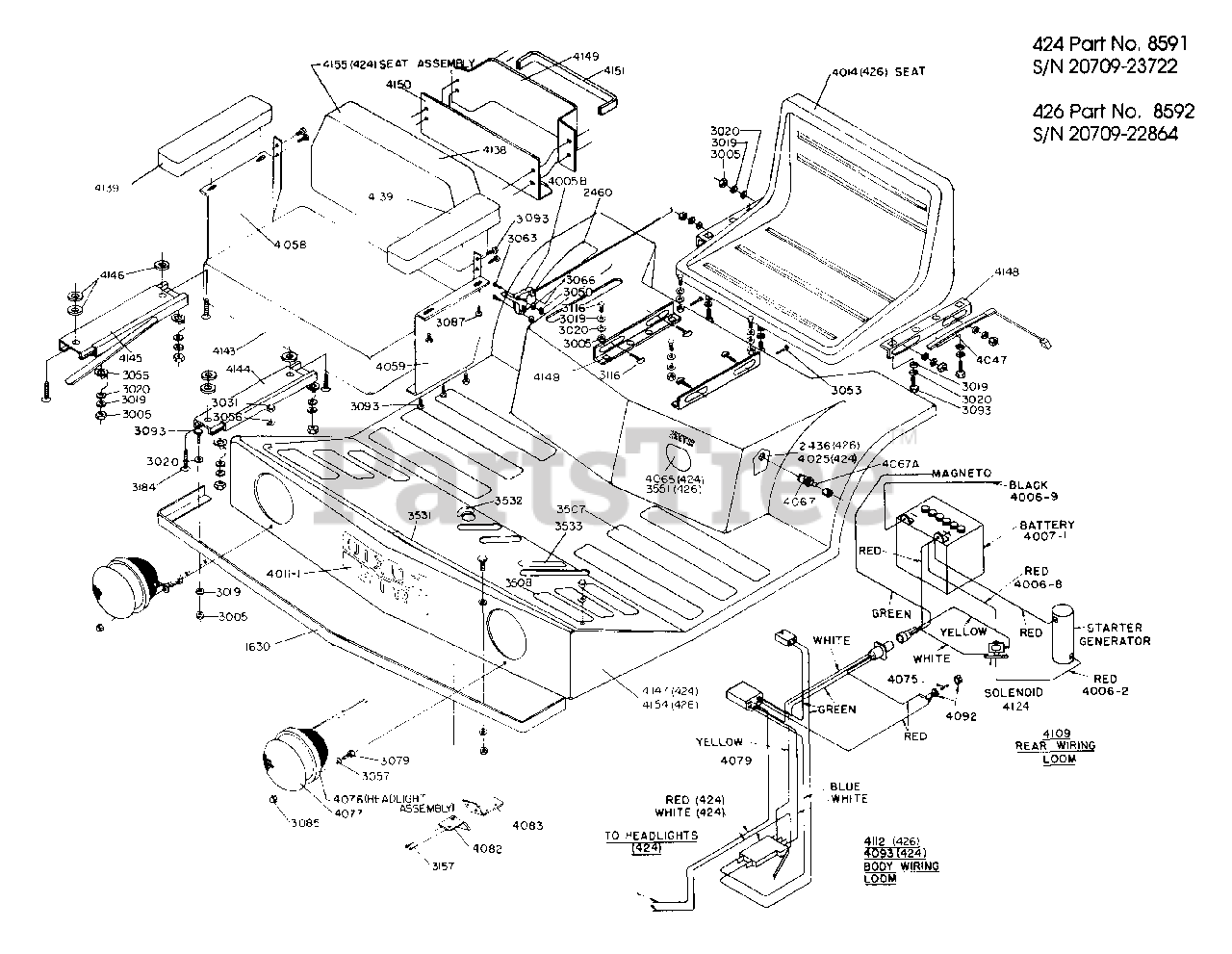

BODY ASSEMBLY P/N 8591 & 8592 Parts Diagram

  • Title

1630

1630

BUMPER - WELDED

$

$

Not available

2436

2436

SWITCH DECAL

$

$

Not available

2460

2460

R/B 3746 PARKING BRAKE DECAL

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3050

3050

R/B 3208 10-24UNC HEX L-NUT

$

$

Not available

3053

3053

10 X 1 SM SCR SLT HD

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3063

3063

10-24UNC X 1-1/4 RHS

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3085

3085

NUT, ACORN 3/8 16 UNC

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3157

Dixon 3157

R/B 3133 8-32X1/2TR3 WHIZ LOK

$

$

Not available

3184

Dixon 3184

5/16-18X1-1/4PANHDPH

$

$

Not available

3507

3507

$

$

Not available

3508

3508

R/B 3508 FRONT FLOOR PAD

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3532

3532

DECAL-BLADE DRIVE

$

$

Not available

3533

3533

DECAL, CUTTING HEIGHT

$

$

Not available

3551

3551

426 MODEL DECAL

$

$

Not available

4005B

4005B

$

$

Not available

4006-9

4006-9

$

$

Not available

4006-2

4006-2

$

$

Not available

4006-8

4006-8

$

$

Not available

4007-1

4007-1

$

$

Not available

4011-1

4011-1

$

$

Not available

4014

4014

R/B 13845 SUBURBAN SEAT

$

$

Not available

4025

4025

SWITCH DECAL

$

$

Not available

4047

4047

DNB SPRINGLEAF SWITCH

$

$

Not available

4058

4058

ARM REST ASSEMBLY RH

$

$

Not available

4059

4059

ARM REST ASSEMBLY LH

$

$

Not available

4065

4065

ZTR 424 DECAL

$

$

Not available

4067

4067

R/B 4067 MAG IGNITION SWITCH

$

$

Not available

4067A

4067A

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4076

4076

R/B 4076 HEADLIGHT

$

$

Not available

4077

4077

R/B 4076 HEADLIGHT #4411

$

$

Not available

4079

4079

BODY SWITCH

$

$

Not available

4082

4082

SWITCH BRACKET BODY

$

$

Not available

4083

4083

SWITCH BRACKET-SWTCH

$

$

Not available

4092

4092

FUSE HOLDER

$

$

Not available

4093

4093

R/B 4113 424-BODY WIRING LOOM

$

$

Not available

4109

4109

R/B 8889 REAR WIRING LOOM ASY

$

$

Not available

4112

4112

R/B 4114 422-BODY WIRING LOOM

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4138

4138

R/B 4450 SEAT BACK TAPERED

$

$

Not available

4139

4139

R/B 4400 ARMREST OFFSET

$

$

Not available

4143

Dixon 4143

SEAT BOTTOM 18.5 IN

$

$

Not available

4144

4144

R/B 7292 SLIDE W/O ADJUSTER

$

$

Not available

4145

4145

R/B 7292 SLIDE W/ADJUSTER

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4147

4147

424 BODY ASSY (4147)

$

$

Not available

4148

Dixon 4148

R/B 4148 SEAT BRACKET

$

$

Not available

4149

4149

UTILITY BOX

$

$

Not available

4150

4150

R/B 4256 UTILITY BOX BOTTOM

$

$

Not available

4151

4151

UTILITY BOX TRIM

$

$

Not available

4154

4154

426 BODY ASSY (4154)

$

$

Not available

4155

4155

R/B 8644 SEAT ASSY-424

$

$

Not available

8591

8591

424 BODY ASSY (4147)

$

$

Not available

8592

8592

426 BODY ASSY (4154)

$

$

Not available
