ZTR 424 - Dixon Zero-Turn Mower (1986) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

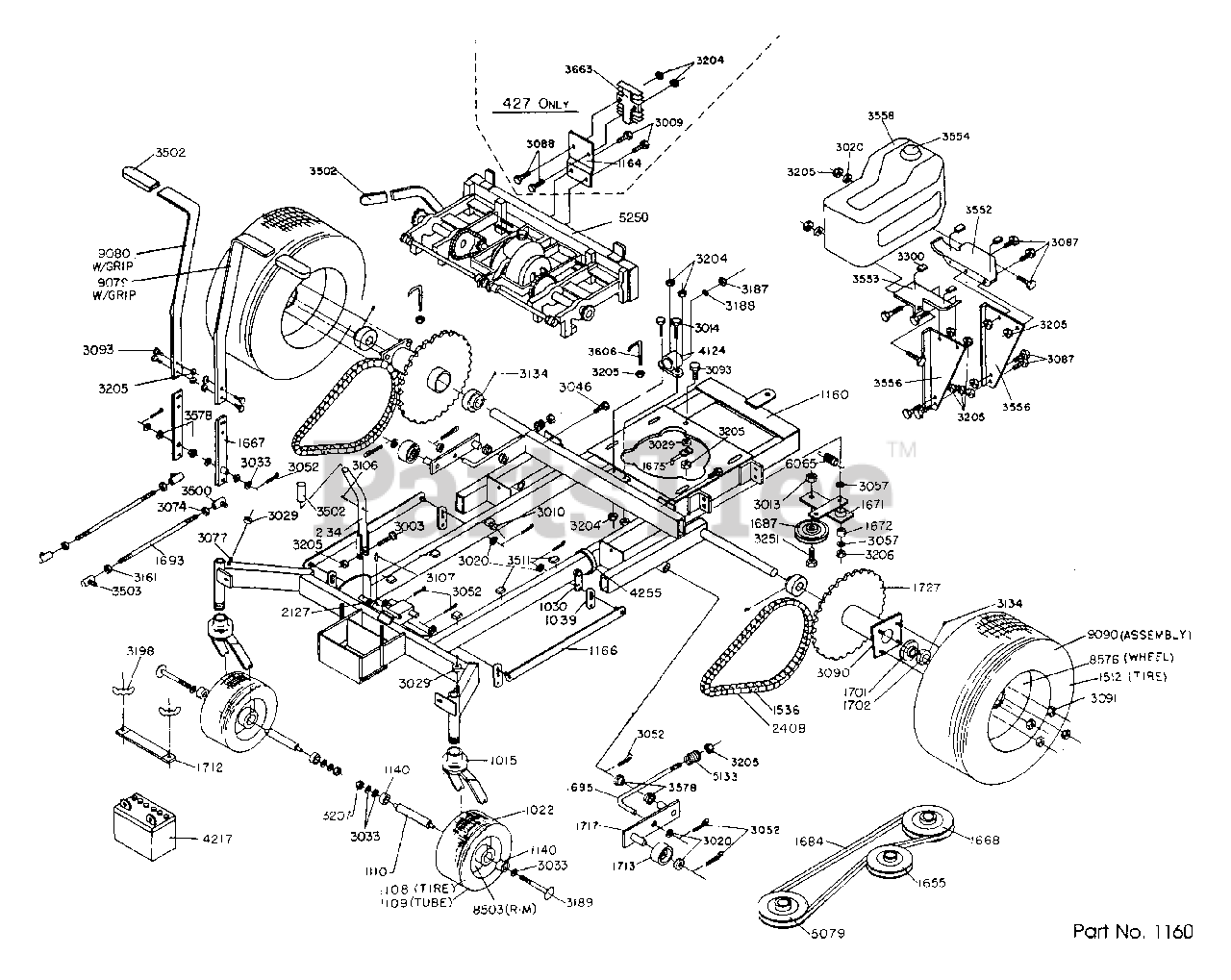

CHASSIS ASSEMBLY Parts Diagram

  • Title

1015

1015

CASTER WLDT

$

$

Not available

1022

1022

CASTER WHEEL & TIRE

$

$

Not available

1030

1030

UPPER LIFT LINK REAR

$

$

Not available

1039

1039

LWR LIFT LINK

$

$

Not available

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1110

1110

CASTER AXLE BUSHING

$

$

Not available

1140

1140

CASTER WHEEL BEARING

$

$

Not available

1160

1160

$

$

Not available

1164

1164

REGULATOR MOUNT

$

$

Not available

1166

1166

$

$

Not available

1512

1512

REAR TIRE

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1655

1655

R/B 10294 IDLER FLAT 3`

$

$

Not available

1667

1667

LWR.CONTROL LEVER WL

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1671

1671

IDLER WELDMENT

$

$

Not available

1672

1672

BUSHING

$

$

Not available

1675

1675

ANCHOR

$

$

Not available

1684

Dixon 1684

BELT

$

$

Not available

1685

1685

L-ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1693

1693

CONTROL ROD

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1712

1712

BATTERY STRAPW/COVER

$

$

Not available

1713

1713

IDLER PULLEY

$

$

Not available

1717

1717

ARM WELDMENT DRILLED

$

$

Not available

1727

1727

R/B 8343 WHEEL HUB ASSEMBLY

$

$

Not available

2127

2127

COMP SPRING 1.09 X 2

$

$

Not available

2134

2134

LIFT HANDLE WLDT

$

$

Not available

2408

2408

DR. CHAIN ASSY#40-92

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3010

3010

1/2DIAX2 1/4RD HD RV

$

$

Not available

3013

3013

NUT 1/2-13 UNC HEX L

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3134

3134

1/4-28X1/4SOC.S.S.

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3188

Dixon 3188

LOCKWASHER #10 EST TOOTH

$

$

Not available

3189

Dixon 3189

1/2-13X5-1/2 CAR BLT

$

$

Not available

3198

Dixon 3198

1/4-20 WING NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3251

3251

BOLT 1/2-13 X 2 HH

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3500

3500

R/B 8284 5/16 24BALLJNT RH TH

$

$

Not available

3502

3502

HAND GRIP

$

$

Not available

3503

3503

R/B 8285 5/16 24BALLJNT LH TH

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

3552

3552

R/B 1385 TANK MOUNT BRKT LONG

$

$

Not available

3553

3553

R/B 1384 TANK MOUNT BRKTSHORT

$

$

Not available

3554

3554

FUEL GAUGE

$

$

Not available

3556

3556

TANK SUPPORT-LH

$

$

Not available

3558

3558

2 GAL TANK W/CAP

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3606

3606

J-BOLT

$

$

Not available

3663

Dixon 3663

REGULATOR

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4255

4255

WIRE TIE

$

$

Not available

5079

5079

PULLEY A 5/8 X 4.0

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

5250

5250

TRANSAXLE ASM

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

8503

8503

CASTER RIM

$

$

Not available

8576

8576

REAR WHEEL (42` 50`)

$

$

Not available

9079

9079

UP CONT LEVER ASSY L

$

$

Not available

9080

9080

UP CONT LEVER ASSY R

$

$

Not available

9090

9090

$

$

Not available
