ZTR 424 - Dixon Zero-Turn Mower (1985) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

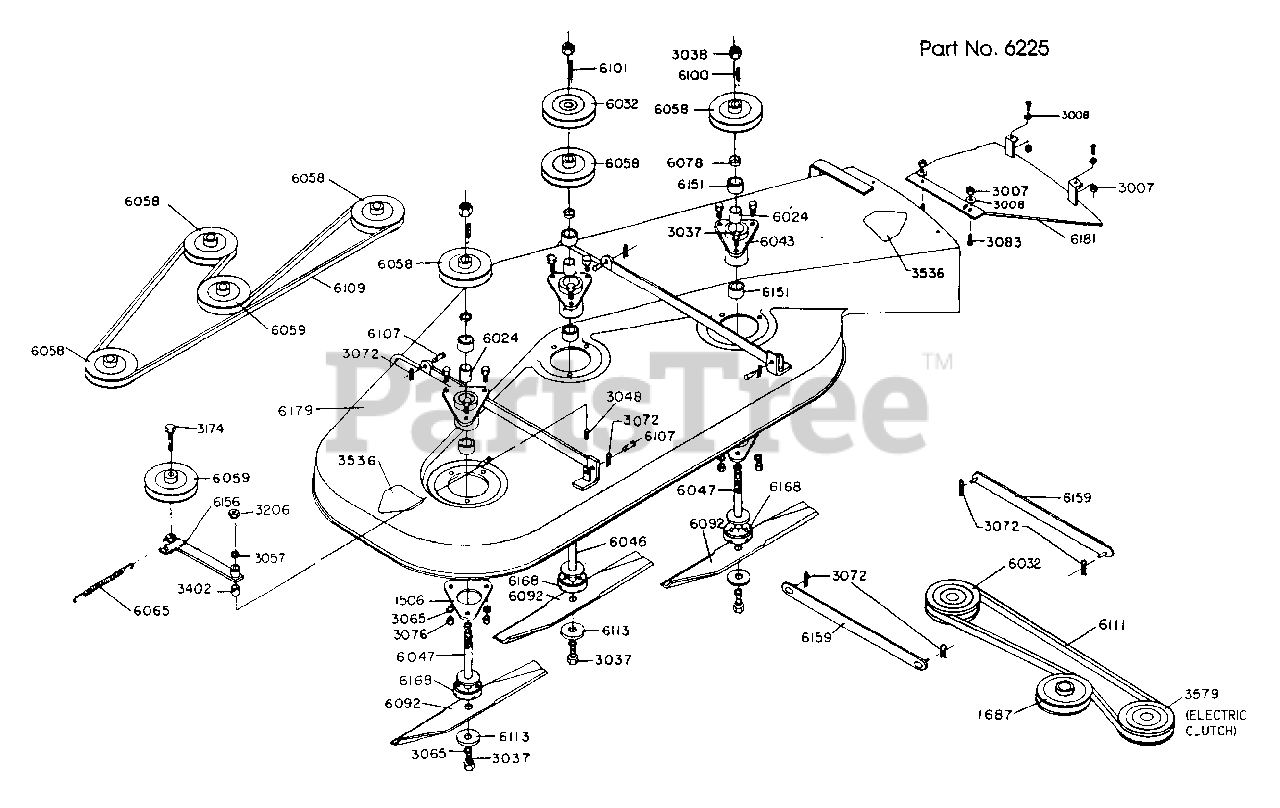

MOWER DECK ASSEMBLY Parts Diagram

  • Title
1506

1506

HUB FLANGE

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3038

3038

R/B 3262 3/4-16UNF H JAML-NUT

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3072

3072

$

$

Not available

3076

Dixon 3076

3/8-24 UNF HEX NUT

$

$

Not available

3083

3083

1/4-20UNCX1/2RDHDSCR

$

$

Not available

3174

3174

1/2-13 X 1` HHB

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3402

3402

BRZ BUSH 5/8X3/8X3/4

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

6024

6024

HUB BEARING SPACER

$

$

Not available

6032

6032

MOWER DECK V-PULLEY

$

$

Not available

6043

6043

R/B 8889 DECK HUB MACHINED

$

$

Not available

6046

6046

CENTER SHAFT ASSY

$

$

Not available

6047

6047

OUTER SHAFT ASSEMBLY

$

$

Not available

6058

6058

V PULLEY

$

$

Not available

6059

6059

FLAT IDLER PULLEY

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6078

6078

PULLEY SPACER

$

$

Not available

6092

6092

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6107

6107

CLEVIS PIN 5/16

$

$

Not available

6109

6109

V-BELT SERPENTINE

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

6151

6151

BRG DIXON #6151 -------

$

$

Not available

6156

6156

SERP. IDLER WLDT.

$

$

Not available

6159

6159

STABILIZER ARM

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6179

Dixon 6179

R/B 8212 MOWER DECK WLDT

$

$

Not available

6181

6181

R/B 6181 DEFLECTOR WLDT

$

$

Not available

6225

6225

R/B 6225 MOWER DECK ASSEMBLY

$

$

Not available
