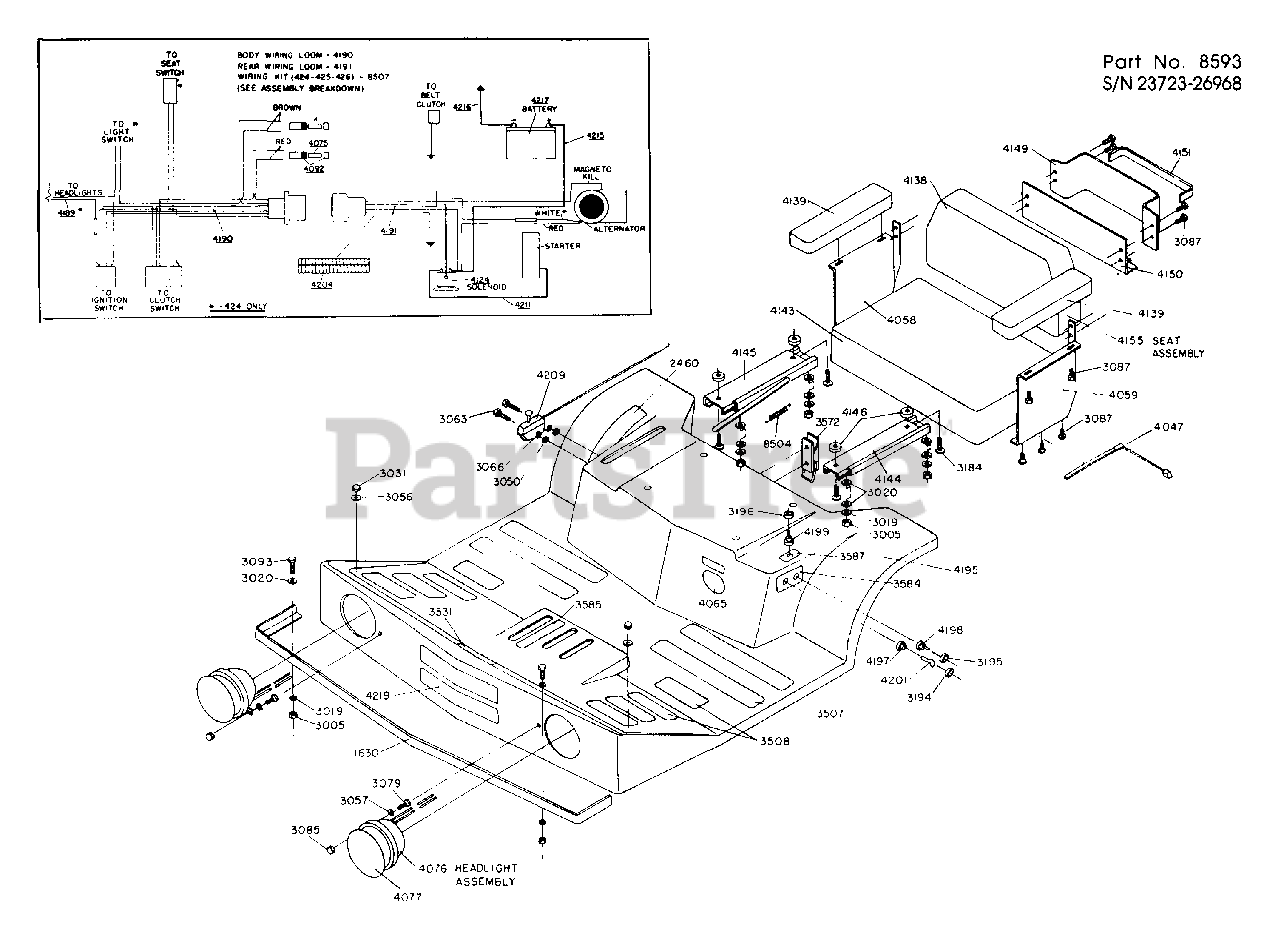

ZTR 424 - Dixon Zero-Turn Mower (1984) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

BODY ASSEMBLY Parts Diagram

  • Title

1630

1630

BUMPER - WELDED

$

$

Not available

2460

2460

R/B 3746 PARKING BRAKE DECAL

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3031

3031

5/16 ACORN NUT H-CRN

$

$

Not available

3050

3050

R/B 3208 10-24UNC HEX L-NUT

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3063

3063

10-24UNC X 1-1/4 RHS

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3085

3085

NUT, ACORN 3/8 16 UNC

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3184

Dixon 3184

5/16-18X1-1/4PANHDPH

$

$

Not available

3194

Dixon 3194

R/B 8889 FACE NUT 5/8-32

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3196

3196

FACE NUT 7/16-28

$

$

Not available

3507

3507

$

$

Not available

3508

3508

R/B 3508 FRONT FLOOR PAD

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3572

3572

LATCH

$

$

Not available

3584

3584

DECAL SWITCH/DRIVE

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3587

3587

DECAL - LIGHTS

$

$

Not available

4047

4047

DNB SPRINGLEAF SWITCH

$

$

Not available

4058

4058

ARM REST ASSEMBLY RH

$

$

Not available

4059

4059

ARM REST ASSEMBLY LH

$

$

Not available

4065

4065

ZTR 424 DECAL

$

$

Not available

4075

4075

15 AMP FUSE

$

$

Not available

4076

4076

R/B 4076 HEADLIGHT

$

$

Not available

4077

4077

R/B 4076 HEADLIGHT #4411

$

$

Not available

4092

4092

FUSE HOLDER

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4138

4138

R/B 4450 SEAT BACK TAPERED

$

$

Not available

4139

4139

R/B 4400 ARMREST OFFSET

$

$

Not available

4143

Dixon 4143

SEAT BOTTOM 18.5 IN

$

$

Not available

4144

4144

R/B 7292 SLIDE W/O ADJUSTER

$

$

Not available

4145

4145

R/B 7292 SLIDE W/ADJUSTER

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4149

4149

UTILITY BOX

$

$

Not available

4150

4150

R/B 4256 UTILITY BOX BOTTOM

$

$

Not available

4151

4151

UTILITY BOX TRIM

$

$

Not available

4155

4155

R/B 8644 SEAT ASSY-424

$

$

Not available

4189

4189

$

$

Not available

4190

4190

BODY WIRING LOOM

$

$

Not available

4191

4191

$

$

Not available

4195

4195

424 BODY ASSY (4195)

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4199

4199

LIGHT SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4204

4204

COVER - FLEX-GARD

$

$

Not available

4209

4209

R/B 4209 THROTTLE CONTROL

$

$

Not available

4211

4211

STARTER/BATTERY CABLE

$

$

Not available

4215

4215

SOL-BATTERY CABLE

$

$

Not available

4216

Dixon 4216

R/B 4216 BATT TO GROUND CABLE

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4219

4219

R/B 4219 NAME DECAL

$

$

Not available

8504

8504

SEAT SLIDE SPRING

$

$

Not available

8507

8507

WIRING KIT

$

$

Not available

8593

8593

424 BODY ASSY (4195)

$

$
