ZTR 424 - Dixon Zero-Turn Mower (1983) TRANSAXLE ASSEMBLY Parts Diagram

Zero-Turn Mower

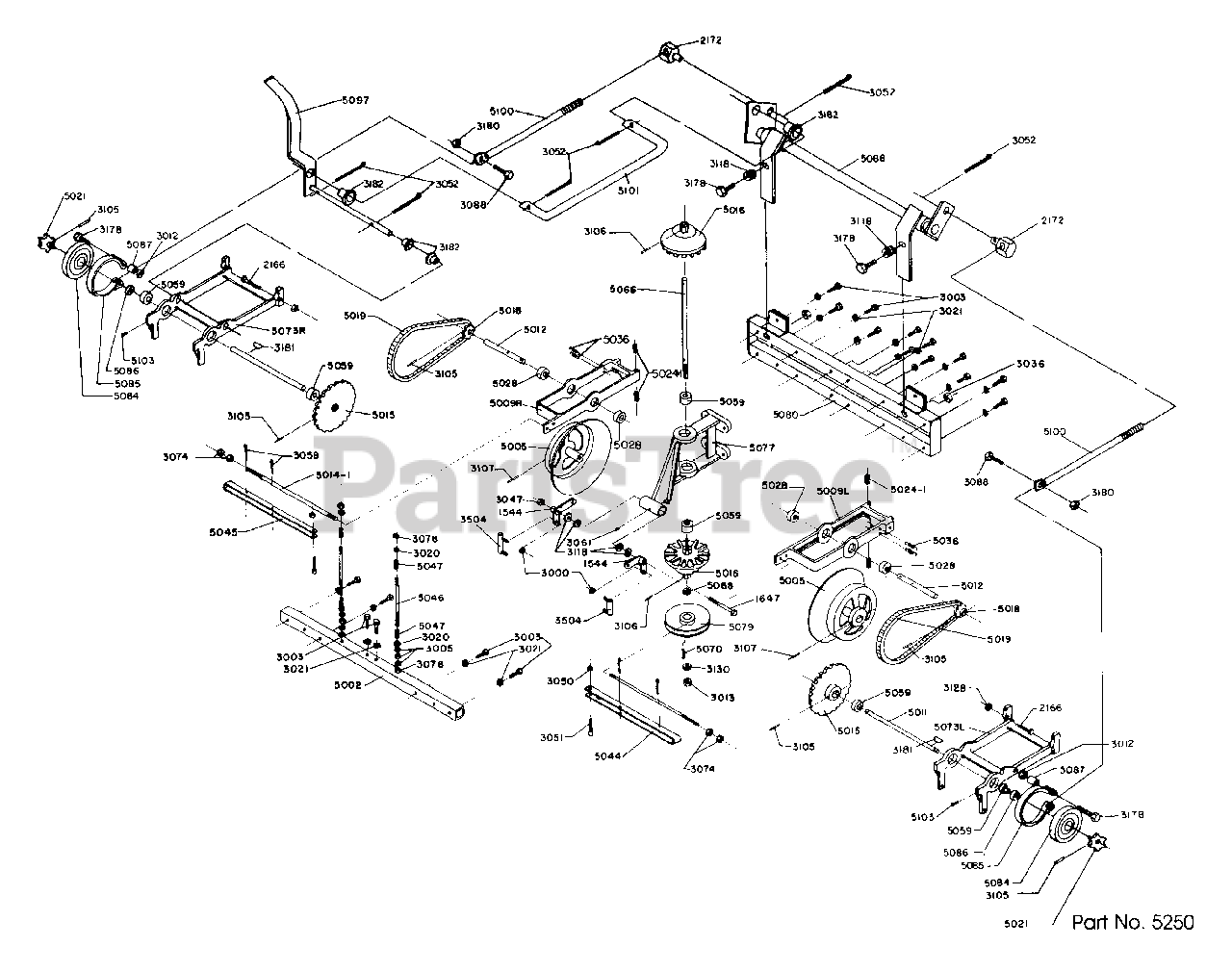

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1544

1544

R/B 1636 BELLCRANK ASSY

$

$

Not available

1647

1647

R/B 1647 LOWER LEVER PIN WLDT

$

$

Not available

2166

2166

PIVOT BOLT

$

$

Not available

2172

2172

SWIVEL FITTING

$

$

Not available

3000

3000

R/B 3222 5/16-24 UNF H LK NUT

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3013

3013

NUT 1/2-13 UNC HEX L

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3036

Dixon 3036

3/8-16UNC HEX L-NUT

$

$

Not available

3047

3047

NUT, L 3/8-24 UNF HEX

$

$

Not available

3050

3050

R/B 3208 10-24UNC HEX L-NUT

$

$

Not available

3051

3051

10-24UNCX13/4SOCHDBT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3058

Dixon 3058

COTTER PIN 1/8 X 2

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3078

3078

5/16-18UNC HEX L-NUT

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3105

3105

R/B 3105 14X1-1/4 HD SPIR PIN

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3128

3128

CHAIN

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3180

Dixon 3180

1/4-20 HEX LOCKNUT

$

$

Not available

3181

3181

WOODRUFF KEY #605

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3504

3504

R/B 8277 DOUBLE BALL JOINT

$

$

Not available

5002

5002

R/B 5352 FRONT TUBE

$

$

Not available

5005

5005

DISCUP-MACHINED

$

$

Not available

5009R

5009R

$

$

Not available

5009L

5009L

$

$

Not available

5011

5011

SUPPORT SHAFT

$

$

Not available

5012

5012

R/B 8786 CRADLE SHAFT

$

$

Not available

5014-1

5014-1

$

$

Not available

5015

5015

SPROCKET 24T-40RC

$

$

Not available

5016

5016

R/B 8785 CONE ASSY. (DRILLED)

$

$

Not available

5018

5018

R/B 8786 SPROCKET 9T-41RC

$

$

Not available

5019

5019

R/B 5246 CHAIN RS40 30P

$

$

Not available

5021

5021

R/B 5164 SPROCKET

$

$

Not available

5024-1

5024-1

$

$

Not available

5028

5028

TRANSAXLE BEARING

$

$

Not available

5036

5036

PIVOT SPRING

$

$

Not available

5044

5044

TORQUE ROD STFNER LH

$

$

Not available

5045

5045

TORQUE ROD STFNER RH

$

$

Not available

5046

5046

POSITIVE NEUTRAL ROD

$

$

Not available

5047

5047

POSITIVE NEUTRAL SPR

$

$

Not available

5059

5059

$

$

Not available

5066

5066

HD CONE FRAME SHAFT

$

$

Not available

5068

5068

HD PULLEY SPACER

$

$

Not available

5070

5070

KEY, 3/16 SQ X .88

$

$

Not available

5073R

5073R

$

$

Not available

5073L

5073L

$

$

Not available

5077

5077

R/B 8674 HD CONE FRM CAST MAC

$

$

Not available

5079

5079

PULLEY A 5/8 X 4.0

$

$

Not available

5080

5080

$

$

Not available

5084

5084

BRAKE DRUM

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5086

5086

SPACER 5/8 X 5/16

$

$

Not available

5087

5087

SPACER 3/8X12

$

$

Not available

5088

5088

BRAKE SHAFT WLDT

$

$

Not available

5097

5097

BRAKE LVR WLDT

$

$

Not available

5100

5100

BRAKE ROD

$

$

Not available

5101

5101

BRAKE LINK

$

$

Not available

5103

5103

R/B 5103 THUMBSCREW

$

$

Not available

5250

5250

TRANSAXLE ASM

$

$

Not available
