ZTR 424 - Dixon Zero-Turn Mower (1982) CHASSIS ASSEMBLY 42" Parts Diagram

Zero-Turn Mower

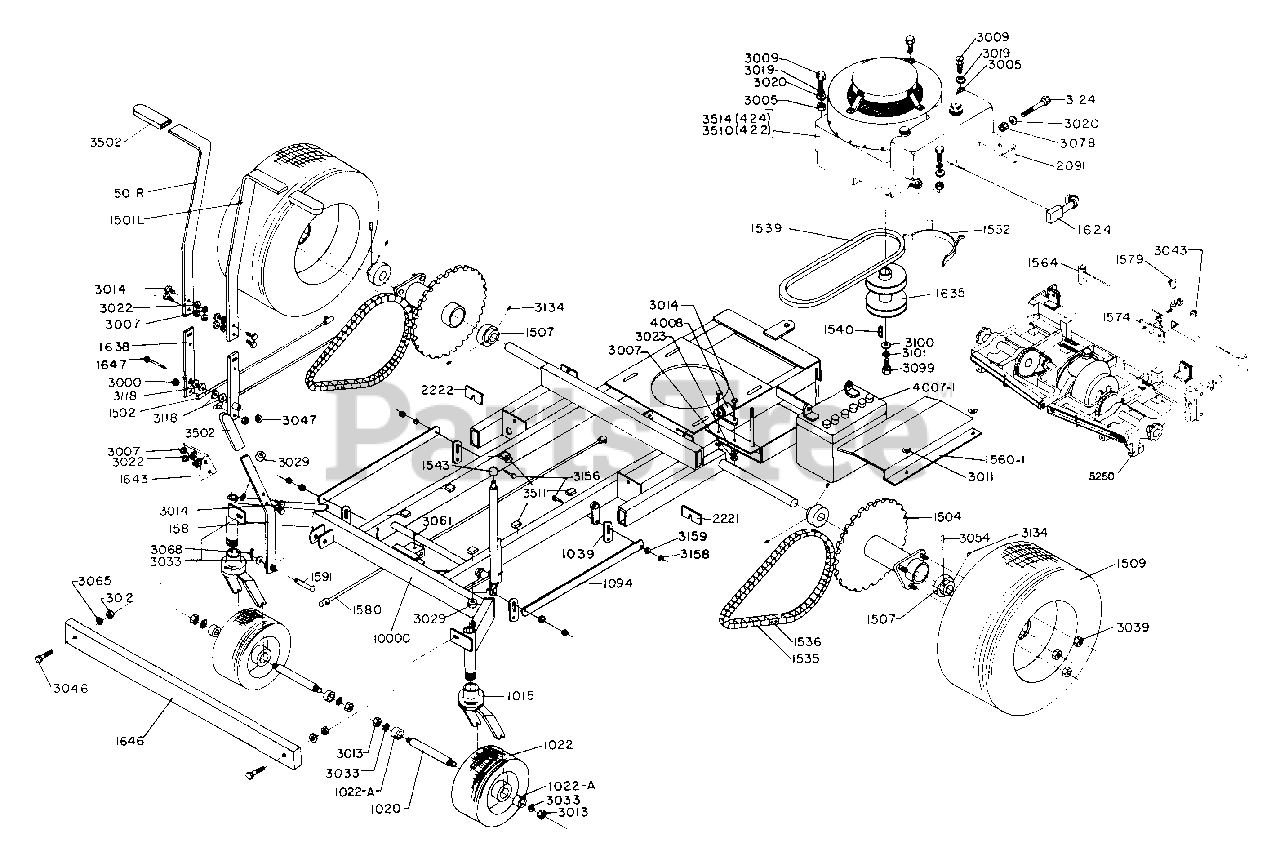

CHASSIS ASSEMBLY 42" Parts Diagram

  • Title

1000C

1000C

$

$

Not available

1015

1015

CASTER WLDT

$

$

Not available

1020

1020

R/B 8502 CASTER AXLE

$

$

Not available

1022

1022

CASTER WHEEL & TIRE

$

$

Not available

1022-A

1022-A

$

$

Not available

1039

1039

LWR LIFT LINK

$

$

Not available

1094

1094

R/B 1094 LIFT TIE ROD WLDT

$

$

Not available

1501R

1501R

$

$

Not available

1501L

1501L

$

$

Not available

1502

1502

CONTROL ROD ASSY

$

$

Not available

1504

1504

WHEEL HUB

$

$

Not available

1507

1507

WHEEL/DECKHUB BEAR`G

$

$

Not available

1509

1509

REPLACE KIT-WHEEL

$

$

Not available

1535

1535

#40 86-PI DR CHAIN

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1539

1539

TRANSAXLE DRIVE BELT

$

$

Not available

1540

1540

ENGINE SHAFT KEY

$

$

Not available

1543

Dixon 1543

LIFT KNOB

$

$

Not available

1552

1552

BELT KEEPER WLDT

$

$

Not available

1560-I

1560-I

$

$

Not available

1564

1564

BRAKE ARM WLDT

$

$

Not available

1574

Dixon 1574

COLLAR

$

$

Not available

1579

1579

SHORT BRAKE ROD ASSY

$

$

Not available

1580

1580

$

$

Not available

1581

1581

BRAKE PEDAL ARM WLDT

$

$

Not available

1591

1591

BRAKE PEDAL PIN

$

$

Not available

1624

Dixon 1624

OIL DRAIN ASSY

$

$

Not available

1635

1635

R/B 1635 V PULLEY

$

$

Not available

1638

1638

LWR CONT LEVER ASSY

$

$

Not available

1643

1643

BRAKE PEDAL

$

$

Not available

1646

1646

$

$

Not available

1647

1647

R/B 1647 LOWER LEVER PIN WLDT

$

$

Not available

2091

2091

TENSION BRACKET

$

$

Not available

2221

2221

TRANSAXLE SHIM 16GA

$

$

Not available

2222

2222

R/B 2222 TRANSAXLE SHIM

$

$

Not available

3000

3000

R/B 3222 5/16-24 UNF H LK NUT

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3011

3011

1/4-20 WING NUT

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3013

3013

NUT 1/2-13 UNC HEX L

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3039

3039

NUT, LUG 3/8-24 HEX

$

$

Not available

3043

3043

RETAINER RING

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3047

3047

NUT, L 3/8-24 UNF HEX

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3078

3078

5/16-18UNC HEX L-NUT

$

$

Not available

3099

3099

7/16 20UNFX3/4HHB C5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3124

3124

5/16-18 X 6 HHB GR5

$

$

Not available

3134

3134

1/4-28X1/4SOC.S.S.

$

$

Not available

3156

Dixon 3156

LIFT LINK PIVOT

$

$

Not available

3158

Dixon 3158

R/B 3205 5/16-18UNC HXLOCKNUT

$

$

Not available

3159

Dixon 3159

DISC SPRING .317 ID

$

$

Not available

3502

3502

HAND GRIP

$

$

Not available

3510

3510

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

3514

3514

$

$

Not available

4007-I

4007-I

$

$

Not available

4008

4008

SOLENOID

$

$

Not available

5250

5250

TRANSAXLE ASM

$

$
