ZTR 424 - Dixon Zero-Turn Mower (1979) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

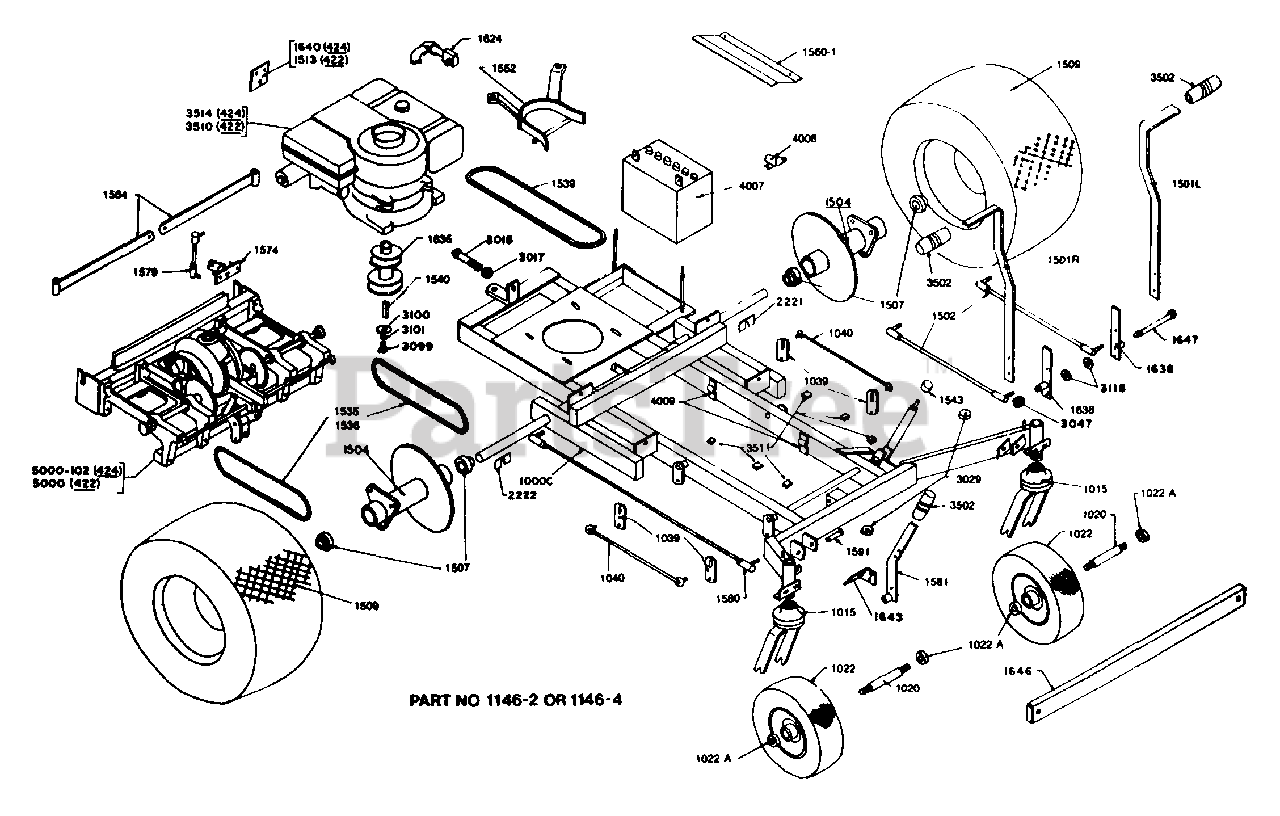

CHASSIS ASSEMBLY Parts Diagram

  • Title

1000

FRAME WLDT 42 IN

$

$

Not available

1015

CASTER WLDT

$

$

Not available

1020

R/B 8502 CASTER AXLE

$

$

Not available

1022

CASTER WHEEL & TIRE

$

$

Not available

1039

LWR LIFT LINK

$

$

Not available

1040

R/B 1094 LIFT TIE ROD WLDT

$

$

Not available

1043

BATTERY STRAP

$

$

Not available

1501

R/B 8615 UPPER CONT LEVER L&R

$

$

Not available

1502

CONTROL ROD ASSY

$

$

Not available

1507

WHEEL/DECKHUB BEAR`G

$

$

Not available

1507

WHEEL/DECKHUB BEAR`G

$

$

Not available

1509

REPLACE KIT-WHEEL

$

$

Not available

1513

$

$

Not available

1539

TRANSAXLE DRIVE BELT

$

$

Not available

1540

ENGINE SHAFT KEY

$

$

Not available

1541

R/B 2222 TRANSAXLE SHIM

$

$

Not available

Dixon 1543

LIFT KNOB

$

$

Not available

1552

BELT KEEPER WLDT

$

$

Not available

1560

R/B 1696 BATTERY SPLASH GUARD

$

$

Not available

1564

BRAKE ARM WLDT

$

$

Not available

Dixon 1574

COLLAR

$

$

Not available

1579

SHORT BRAKE ROD ASSY

$

$

Not available

1580

$

$

Not available

1581

BRAKE PEDAL ARM WLDT

$

$

Not available

1584

$

$

Not available

1591

BRAKE PEDAL PIN

$

$

Not available

1604

R/B 1647 LOWER LEVER PIN WLDT

$

$

Not available

Dixon 1615

NO LONGER AVAILABLE

$

$

Not available

Dixon 1624

OIL DRAIN ASSY

$

$

Not available

1635

R/B 1635 V PULLEY

$

$

Not available

1638

LWR CONT LEVER ASSY

$

$

Not available

1639

$

$

Not available

1640

$

$

Not available

3029

FRONT GROMMET

$

$

Not available

3502

HAND GRIP

$

$

Not available

3511

ADHESIVE BUMPER

$

$

Not available

4007

R/B 4217 BATTERY

$

$

Not available

4008

SOLENOID

$

$

Not available

4009

WIRE CLIP

$

$

Not available

5000

R/B 929 TRANSAXLE ASSY

$

$

Not available

4006-2

$

$

Not available

4006-3

$

$

Not available

4006-4

$

$

Not available

4006-5

$

$

Not available

4006-6

$

$

Not available

4006-7

$

$

Not available
