ZTR 423 - Dixon Zero-Turn Mower (1976) GRASS CATCHER FOR SPEEDZTR 30" Parts Diagram

Zero-Turn Mower

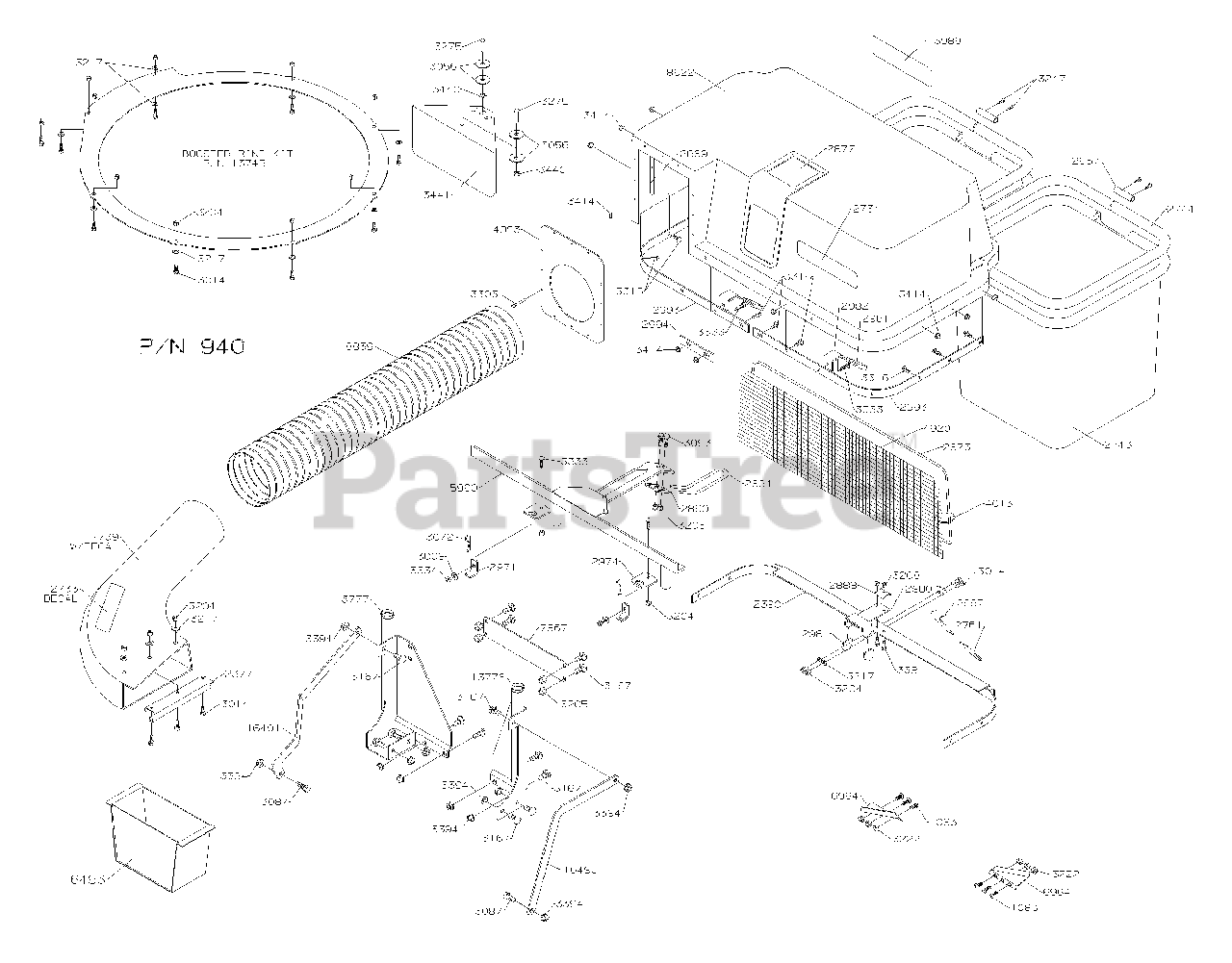

GRASS CATCHER FOR SPEEDZTR 30" Parts Diagram

  • Title

1083

1083

5/16-24X7/8 SOCKET SC

$

$

Not available

2377

2377

DISCHARGE MT. BRACKET

$

$

Not available

2390

2390

CATCH ANGLE

$

$

Not available

2733

2733

G.C.WARNING DECAL

$

$

Not available

2734

2734

G.C.STABILITY DECAL

$

$

Not available

2743

2743

GRASS BAG - SMALL

$

$

Not available

2744

2744

BAG TUBE - SMALL

$

$

Not available

2761

2761

LATCH ROD GRIP

$

$

Not available

2860

2860

CLAMP

$

$

Not available

2864

2864

CENTER SUPPORT EXT.

$

$

Not available

2867

2867

TUBE PLUG

$

$

Not available

2869

2869

SEAL PLATE

$

$

Not available

2873

2873

VENT FRAME

$

$

Not available

2877

2877

WINDOW

$

$

Not available

2887

2887

G.C. CATCH HANDLE

$

$

Not available

2888

2888

VENT SCREEN RET CLIP

$

$

Not available

2971

2971

UPPER HINGE

$

$

Not available

2974

2974

LOWER HINGE

$

$

Not available

2980

2980

REAR CLIP ASSEMBLY

$

$

Not available

2981

2981

CLIP COVER 1-1/2

$

$

Not available

2982

2982

CLIP ASSEMBLY

$

$

Not available

2993

2993

REINFORCE STRAP

$

$

Not available

2994

2994

STRAP MOUNT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3072

3072

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3222

3222

R/B 3222 5/16-24 UNF H LK NUT

$

$

Not available

3247

3247

6-20 X 1/2 PHIL PAN D/T

$

$

Not available

3275

3275

R/B 3275 5/16 FLAT HD RIVET

$

$

Not available

3303

3303

POP RIVET 5/32(LONG)

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3333

3333

1/4-20X1 CARR BOLT

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3381

3381

10-24 X 1 HHB GR2

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3414

3414

1/4-20 FLANGE NUT

$

$

Not available

3440

3440

PUSH NUT 5/16

$

$

Not available

3441

3441

GC DEFLECTOR

$

$

Not available

13989

13989

DECAL, DIXON

$

$

Not available

4013

4013

NYLON WIRE TIE

$

$

Not available

4920

4920

R/B 4920 VENT SCREEN

$

$

Not available

4993

4993

BOOT

$

$

Not available

5990

5990

WLDT BAG SUPPORT

$

$

Not available

6964

6964

HI LIFT ADAPTOR

$

$

Not available

7867

7867

G.C. PLATE

$

$

Not available

8839

8839

FLEX TUBE R/B 539115938

$

$

Not available

8922

8922

TOP ASSEMBLY

$

$

Not available

13776

13776

G.C MOUNT LH WLDT.

$

$

Not available

13777

13777

G.C. MOUNT RH WLDT.

$

$

Not available

16493

16493

WEIGHT BOX WLDT.

$

$

Not available

16494

16494

G.C. BRACE

$

$

Not available

16496

16496

SUPPORT GC

$

$

Not available

17739

17739

G.C. BOOT W/DECAL

$

$

Not available
