ZTR 423 - Dixon Zero-Turn Mower (1976) CLAMSHELL GRASS CATCHER FOR RAM Parts Diagram

Zero-Turn Mower

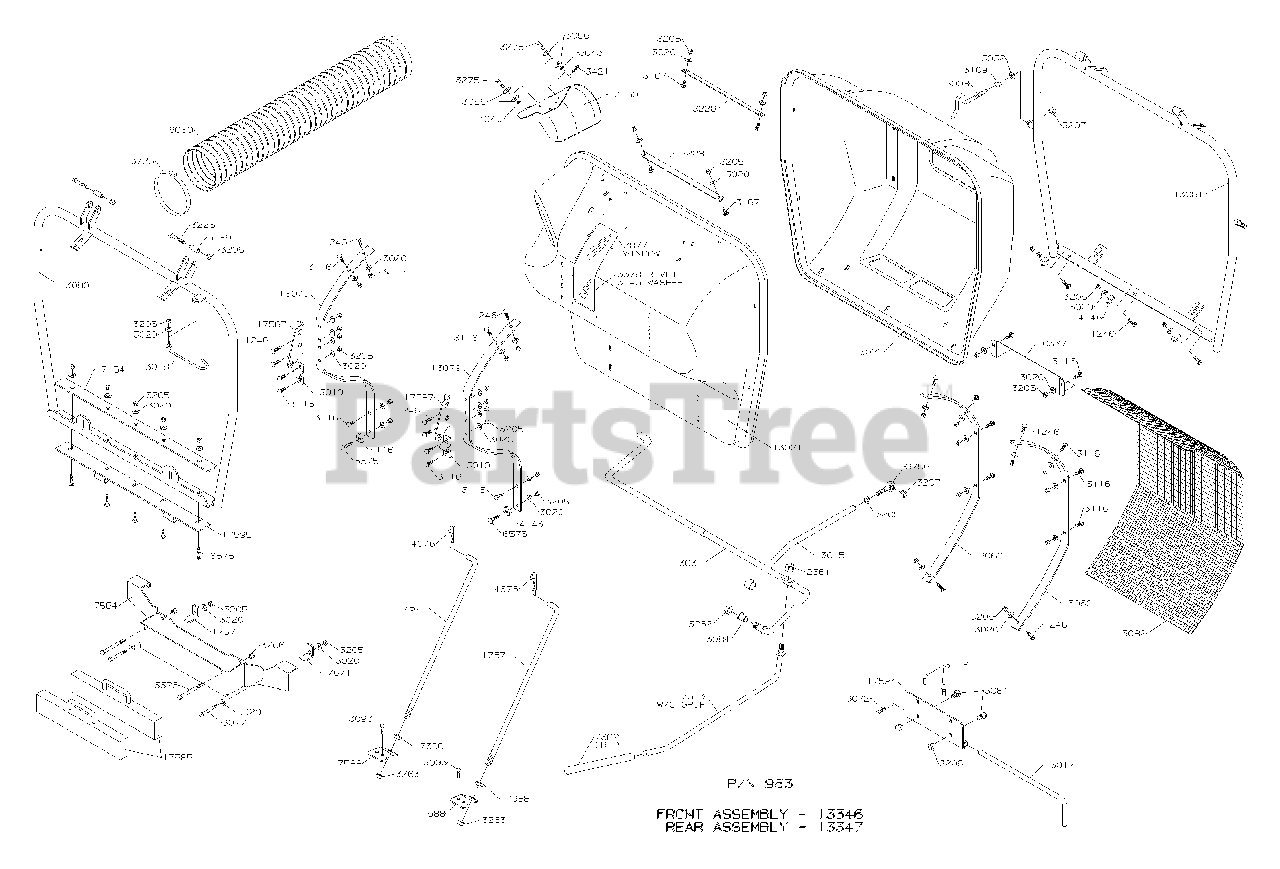

CLAMSHELL GRASS CATCHER FOR RAM Parts Diagram

  • Title

1246

1246

5/16-18 X 1-1/4 CAR BLT

$

$

Not available

2361

2361

5/8-11 HEX NUT W/NYLOCK

$

$

Not available

2877

2877

WINDOW

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3032

3032

1/2 HELICAL L-WASHER

$

$

Not available

3043

3043

RETAINER RING

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

13060

13060

STRAP

$

$

Not available

3072

3072

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

13079

13079

STRAP

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3109

3109

SPROCKET, W/KEY ENGINE

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3145

3145

WASHER .170 I.D.

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

13228

13228

STRAP

$

$

Not available

3262

3262

R/B 3262 3/4-16UNF H JAML-NUT

$

$

Not available

3263

3263

5/8-11 THIN PROF NY

$

$

Not available

3275

3275

R/B 3275 5/16 FLAT HD RIVET

$

$

Not available

3326

3326

3/8-16X4 HHB GR8

$

$

Not available

3378

3378

POP RIVET 5/32 STEEL

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3725

Dixon 3725

HOSE CLAMP

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6575

6575

5/16-18X1-1/2 CAR

$

$

Not available

7382

7382

BAR SLEEVE

$

$

Not available

17388

17388

5/8-11 HEX JAM NUT

$

$

Not available

17584

17584

WEIGHT BOX WLDT.

$

$

Not available

17585

17585

WEIGHT WLDT. RAM

$

$

Not available

17588

17588

BAR SUPPORT

$

$

Not available

8839

8839

FLEX TUBE R/B 539115938

$

$

Not available

9756

9756

ROD END

$

$

Not available

10337

10337

CLAMSHELL VENT

$

$

Not available

13008

13008

HOOK LATCH

$

$

Not available

13010

13010

STRAP

$

$

Not available

13015

13015

LIFT LINK WLDT.

$

$

Not available

13017

13017

HINGE PIN

$

$

Not available

13018

13018

HOOK

$

$

Not available

13021

13021

CLAM SHELL (FRONT)

$

$

Not available

13022

13022

CLAM SHELL (BACK)

$

$

Not available

13031

13031

LIFT SHAFT

$

$

Not available

13060

13060

STRAP

$

$

Not available

13079

13079

STRAP

$

$

Not available

13080

13080

FRONT FRAME WLDT.

$

$

Not available

13081

13081

REAR FRAME WLDT.

$

$

Not available

13082

13082

VENT SCREEN

$

$

Not available

13084

13084

BUSHING

$

$

Not available

13150

13150

DEFLECTOR

$

$

Not available

13228

13228

STRAP

$

$

Not available

14676

14676

5/32 X 3.0 HAIR PIN COTT

$

$

Not available

17154

17154

CLAMSHELL SPACER

$

$

Not available

17388

17388

5/8-11 HEX JAM NUT

$

$

Not available

17571

17571

RAM CLAM ROD

$

$

Not available

17573

17573

CLAM LIFT HANDLE (RAM)

$

$

Not available

17587

17587

ROD BRKT.

$

$

Not available

17588

17588

BAR SUPPORT

$

$

Not available

17594

17594

CLAM ANGLE WLDT.

$

$

Not available

17595

17595

CLAMSHELL BRKT WLDT.

$

$

Not available

17671

17671

BRACKET

$

$

Not available
