ZTR 422 - Dixon Zero-Turn Mower (1982) TRANSAXLE ASSEMBLY 42" Parts Diagram

Zero-Turn Mower

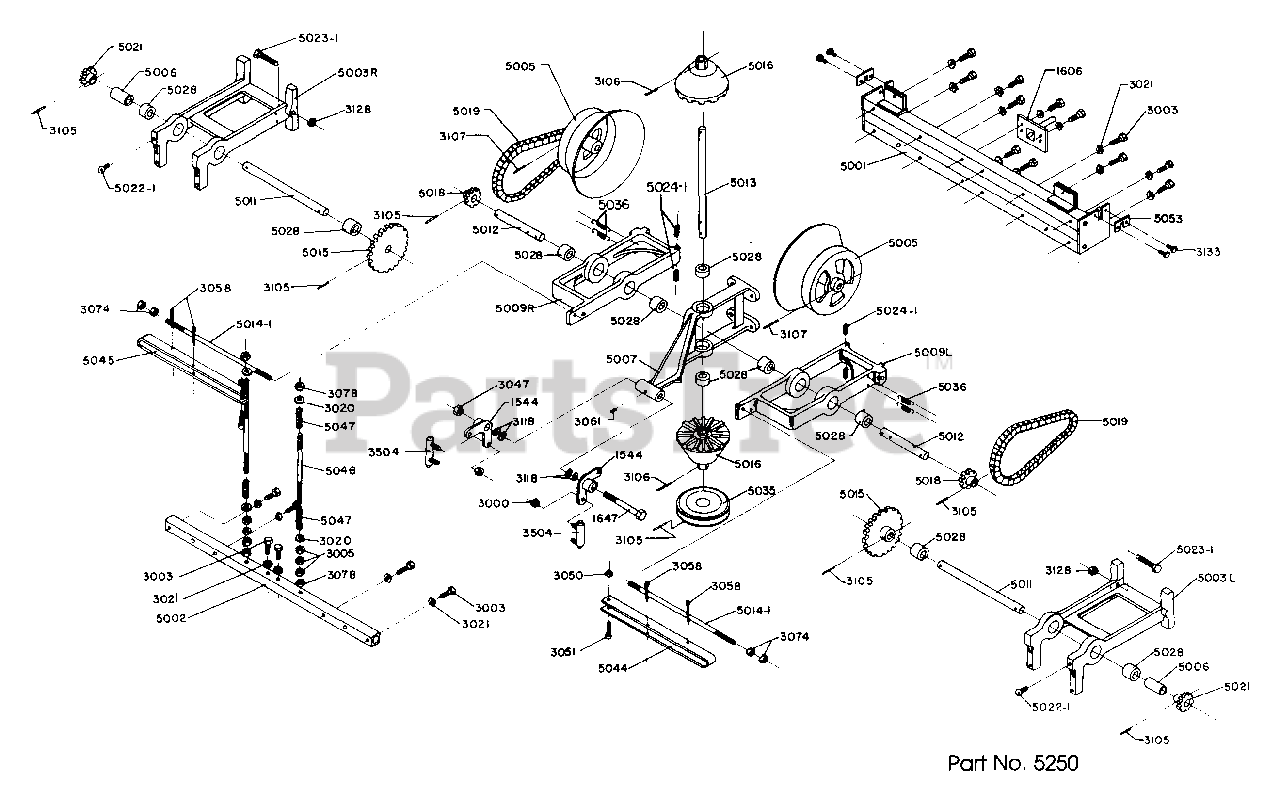

TRANSAXLE ASSEMBLY 42" Parts Diagram

  • Title

1544

1544

R/B 1636 BELLCRANK ASSY

$

$

Not available

1606

Dixon 1606

BRAKE MT WLDT

$

$

Not available

1647

1647

R/B 1647 LOWER LEVER PIN WLDT

$

$

Not available

3000

3000

R/B 3222 5/16-24 UNF H LK NUT

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3047

3047

NUT, L 3/8-24 UNF HEX

$

$

Not available

3050

3050

R/B 3208 10-24UNC HEX L-NUT

$

$

Not available

3051

3051

10-24UNCX13/4SOCHDBT

$

$

Not available

3058

Dixon 3058

COTTER PIN 1/8 X 2

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3078

3078

5/16-18UNC HEX L-NUT

$

$

Not available

3105

3105

R/B 3105 14X1-1/4 HD SPIR PIN

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3128

3128

CHAIN

$

$

Not available

3133

3133

R/B 3133 8 X 1/2 SM SCREW

$

$

Not available

3504

3504

R/B 8277 DOUBLE BALL JOINT

$

$

Not available

5001

5001

REAR TUBE ASSY

$

$

Not available

5002

5002

R/B 5352 FRONT TUBE

$

$

Not available

5003L

5003L

$

$

Not available

5003R

5003R

$

$

Not available

5005

5005

DISCUP-MACHINED

$

$

Not available

5006

5006

SUPPORT SPACER

$

$

Not available

5007

5007

R/B 8674 CONE FRAME MACH

$

$

Not available

5009R

5009R

$

$

Not available

5009L

5009L

$

$

Not available

5011

5011

SUPPORT SHAFT

$

$

Not available

5012

5012

R/B 8786 CRADLE SHAFT

$

$

Not available

5013

5013

R/B 8785 CONE FRAME SHAFT

$

$

Not available

5014-I

5014-I

$

$

Not available

5015

5015

SPROCKET 24T-40RC

$

$

Not available

5016

5016

R/B 8785 CONE ASSY. (DRILLED)

$

$

Not available

5018

5018

R/B 8786 SPROCKET 9T-41RC

$

$

Not available

5019

5019

R/B 5246 CHAIN RS40 30P

$

$

Not available

5021

5021

R/B 5164 SPROCKET

$

$

Not available

5022-I

5022-I

$

$

Not available

5023-I

5023-I

$

$

Not available

5024-I

5024-I

$

$

Not available

5028

5028

TRANSAXLE BEARING

$

$

Not available

5035

5035

$

$

Not available

5036

5036

PIVOT SPRING

$

$

Not available

5044

5044

TORQUE ROD STFNER LH

$

$

Not available

5045

5045

TORQUE ROD STFNER RH

$

$

Not available

5047

5047

POSITIVE NEUTRAL SPR

$

$

Not available

5048

5048

$

$

Not available

5053

5053

BRAKE ARM RETAINER

$

$

Not available

5250

5250

TRANSAXLE ASM

$

$

Not available
