ZTR 422 - Dixon Zero-Turn Mower (1980) TRANSAXLE ASSEMBLY Parts Diagram

Zero-Turn Mower

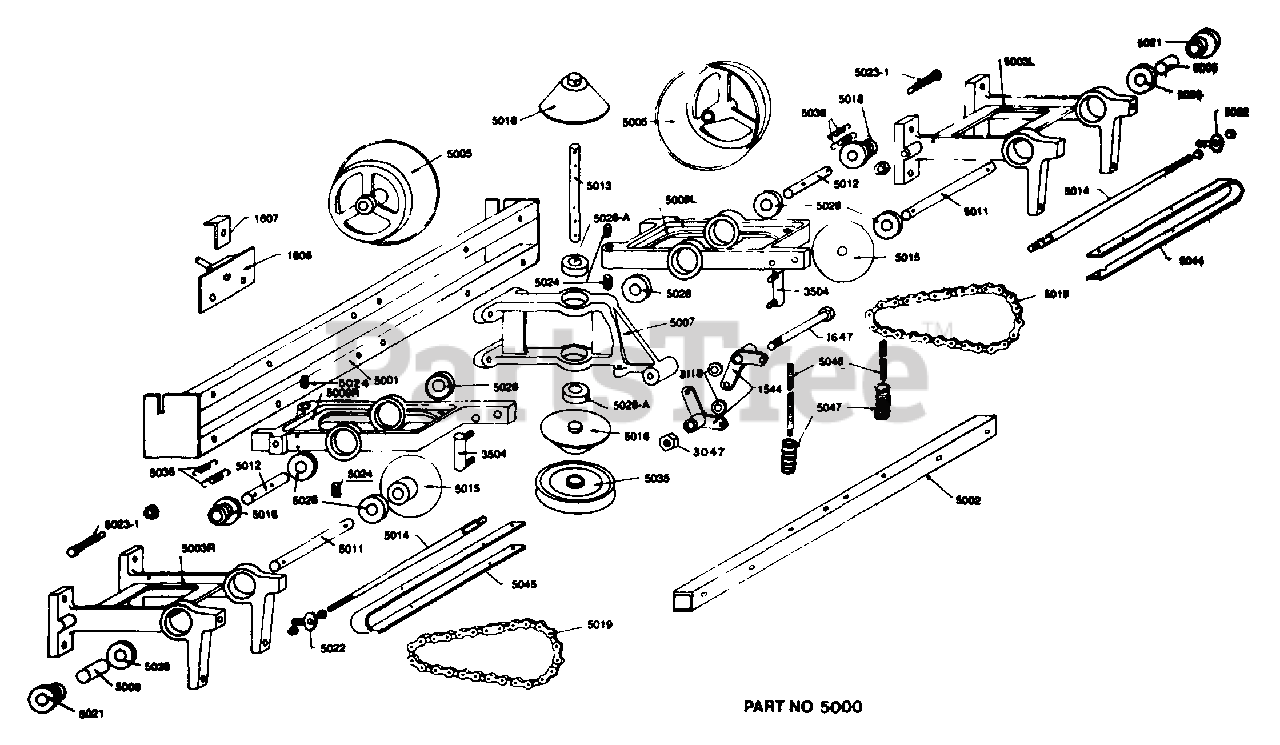

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1544

R/B 1636 BELLCRANK ASSY

$

$

Not available

1604

R/B 1647 LOWER LEVER PIN WLDT

$

$

Not available

Dixon 1606

BRAKE MT WLDT

$

$

Not available

1607

BRAKE STOP

$

$

Not available

3504

R/B 8277 DOUBLE BALL JOINT

$

$

Not available

5001

REAR TUBE ASSY

$

$

Not available

5002

R/B 5352 FRONT TUBE

$

$

Not available

5003

$

$

Not available

5005

DISCUP-MACHINED

$

$

Not available

5006

SUPPORT SPACER

$

$

Not available

5007

R/B 8674 CONE FRAME MACH

$

$

Not available

5009

$

$

Not available

5011

SUPPORT SHAFT

$

$

Not available

5012

R/B 8786 CRADLE SHAFT

$

$

Not available

5013

R/B 8785 CONE FRAME SHAFT

$

$

Not available

5014

R/B 5145 TORQUE ROD

$

$

Not available

5015

SPROCKET 24T-40RC

$

$

Not available

5016

R/B 8785 CONE ASSY. (DRILLED)

$

$

Not available

5018

R/B 8786 SPROCKET 9T-41RC

$

$

Not available

5019

R/B 5246 CHAIN RS40 30P

$

$

Not available

5021

R/B 5164 SPROCKET

$

$

Not available

5022

R/B 5103 THUMBSCREW

$

$

Not available

5023

R/B 2166 PIVOT BOLT

$

$

Not available

Dixon 5024

R/B 5133 CRADLE SPRING

$

$

Not available

5028

TRANSAXLE BEARING

$

$

Not available

5035

$

$

Not available

5036

PIVOT SPRING

$

$

Not available

5044

TORQUE ROD STFNER LH

$

$

Not available

5045

TORQUE ROD STFNER RH

$

$

Not available

5046

POSITIVE NEUTRAL ROD

$

$

Not available

5047

POSITIVE NEUTRAL SPR

$

$

Not available
